Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Related Tests, Information and Procedures >> Steering Control System >> 4WAS Front Control Unit

4WAS Front Control Unit





4WAS FRONT CONTROL UNIT

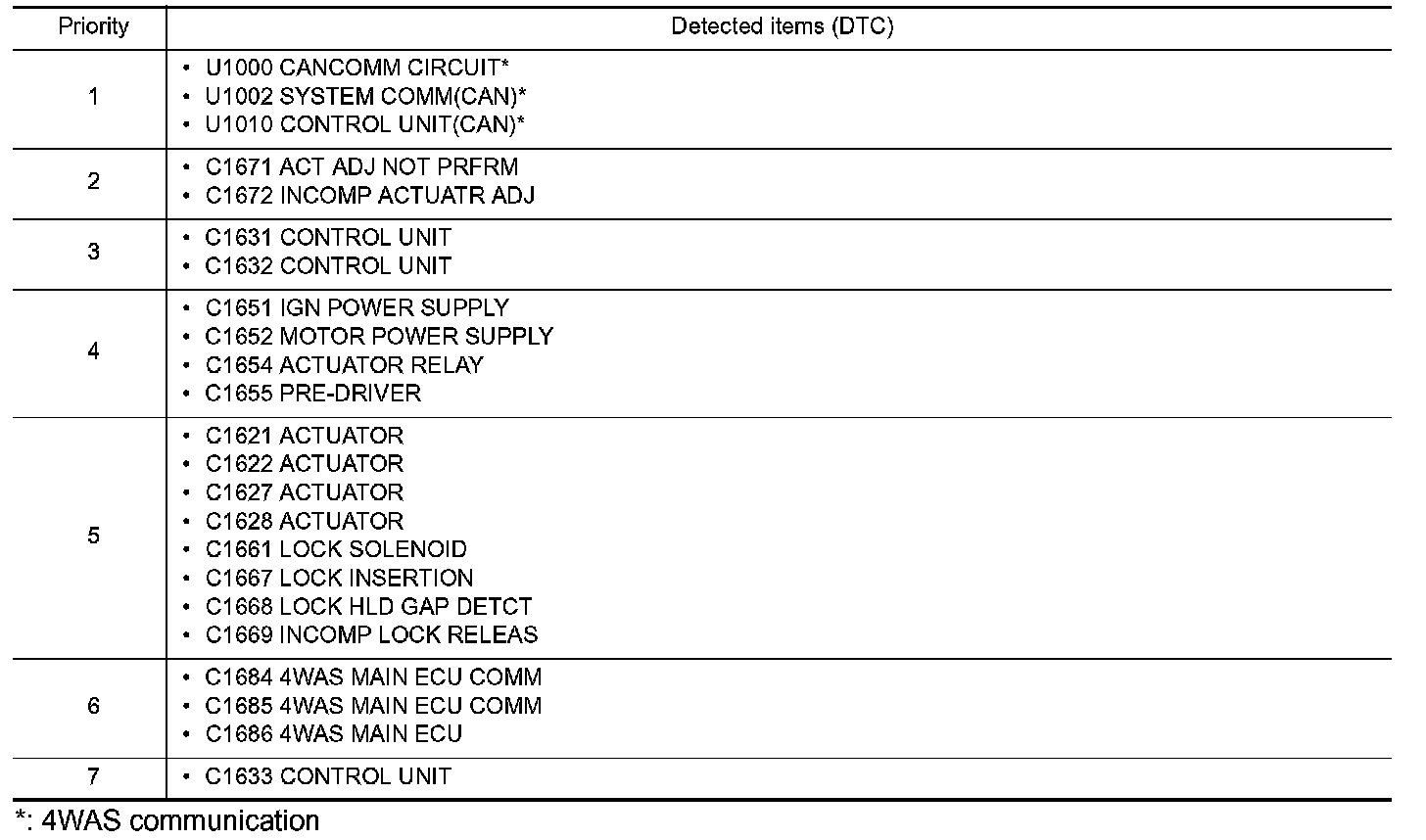

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.





*: 4WAS communication
