Home >> Infiniti >> 2011 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Related Tests, Information and Procedures >> ADAS Control Unit >> LDW & LDP

LDW & LDP





ADAS CONTROL UNIT

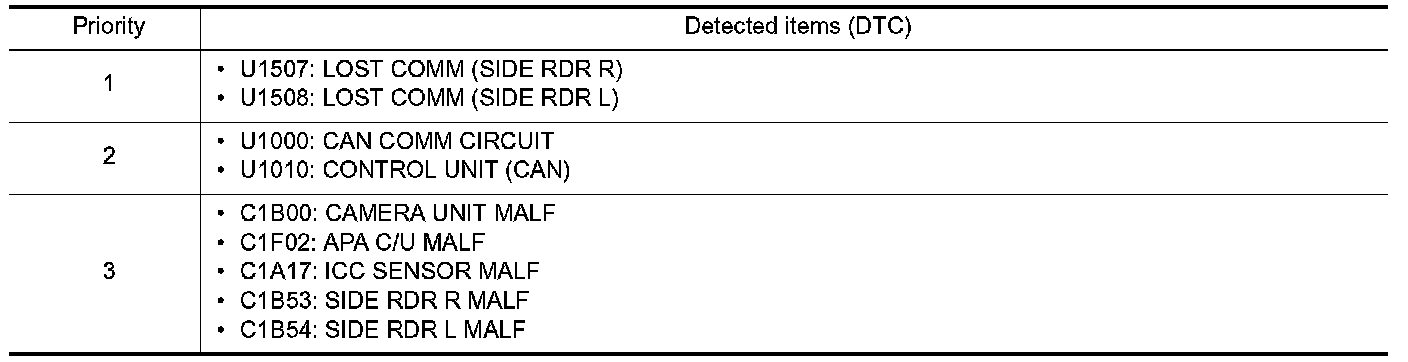

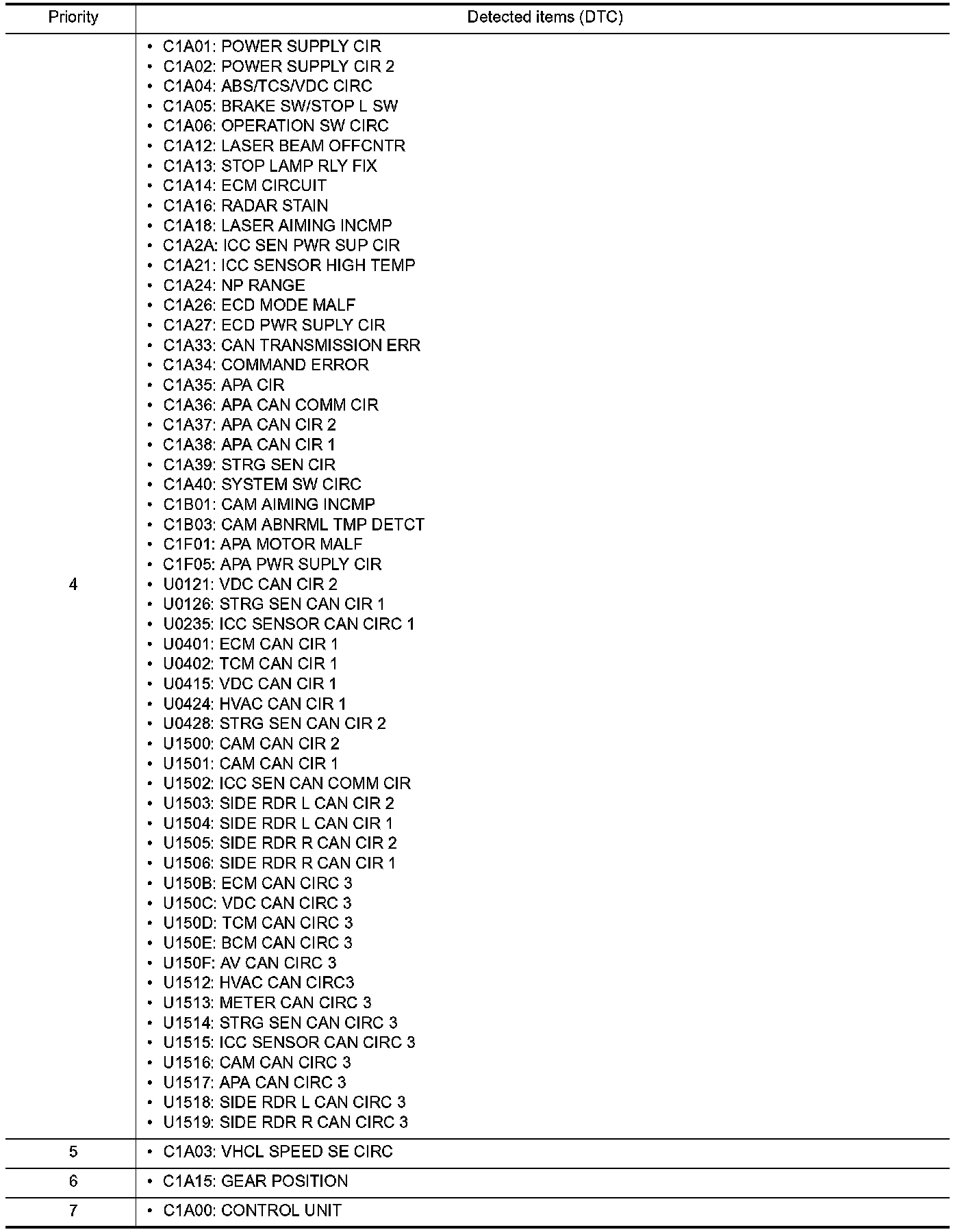

DTC Inspection Priority Chart

If multiple DTCs are detected simultaneously, check them one by one depending on the following DTC inspection priority chart.
