C1F07

C1F07 CAN CIRCUIT1





DTC Logic

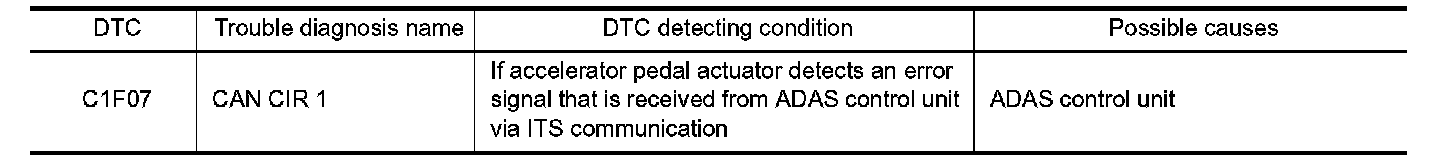

DTC DETECTION LOGIC






NOTE:
If DTC "C1F07" is detected along with DTC "U1000", first diagnose the DTC "U1000". DCA.

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the DCA system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1F07" is detected as the current malfunction in "Self Diagnostic Result" of "ACCELE
PEDAL ACT".
Is "C1F07" detected as the current malfunction?
YES - C1F06.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1F07" in "Self Diagnostic Result" of "ACCELE PEDAL ACT".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. DCA.
NO - GO TO 2.
2.REPLACE ADAS CONTROL UNIT
1. Turn the ignition switch OFF.
2. Replace the ADAS control unit. Service and Repair.
3. Erases All self-diagnosis results.
4. Perform "All DTC Reading" again.
5. Check if the "C1F07" is detected in self-diagnosis results of "ACCELE PEDAL ACT".
Is "C1F07" detected?
YES - Replace the accelerator pedal assembly. Exploded View.
NO - INSPECTION END
