C1F03

C1F03 ACCELERATOR PEDAL ACTUATOR





DTC Logic

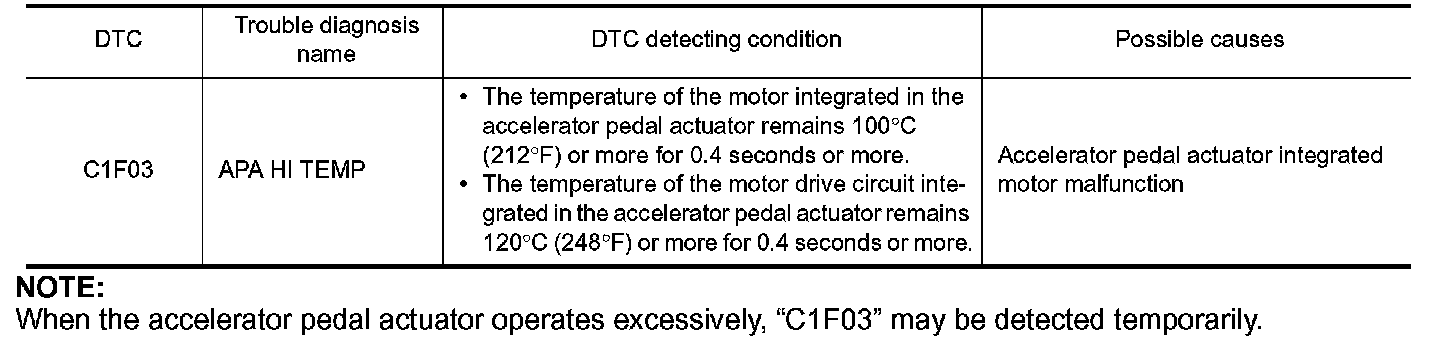

DTC DETECTION LOGIC






NOTE:
When the accelerator pedal actuator operates excessively, "C1F03" may be detected temporarily.

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the ignition switch OFF.
2. Wait for 10 minutes or more and cool the accelerator pedal actuator integrated motor.
3. Drive the vehicle with DCA switch ON and operate the system.

CAUTION:
Always drive safely.
4. Stop the vehicle.
5. Perform "All DTC Reading" with CONSULT-III.
6. Check if the DTC "C1F03" is detected as the current malfunction in self-diagnosis results of "ACCELE
PEDAL ACT".
Is "C1F03" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.REPLACE ACCELERATOR PEDAL ASSEMBLY
Perform DTC confirmation procedure. If "C1F03" is detected, replace the accelerator pedal assembly. Exploded View.
- INSPECTION END
