Cruise Control System

C1F02 ACCELERATOR PEDAL ACTUATOR





DTC Logic

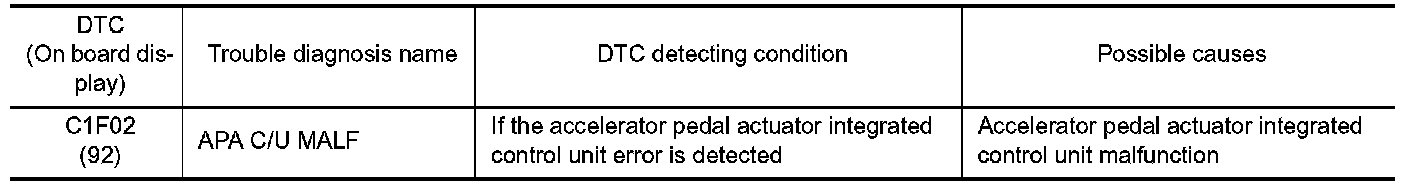

DTC DETECTION LOGIC





1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the DCA system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1F02" is detected as the current malfunction on the self-diagnosis results of "ICC/ADAS".
Is "C1F02" detected as the current malfunction?
YES - C1F05.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1F02" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. Cruise Control.
NO - GO TO 2.
2.CHECK ACCELERATOR PEDAL ACTUATOR SELF-DIAGNOSIS RESULTS
Check if "C1F02" is detected in "Self Diagnostic Result" of "ACCELE PEDAL ACT".
Is "C1F02" detected?
YES - Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
