Cruise Control System

C1F01 ACCELERATOR PEDAL ACTUATOR





DTC Logic

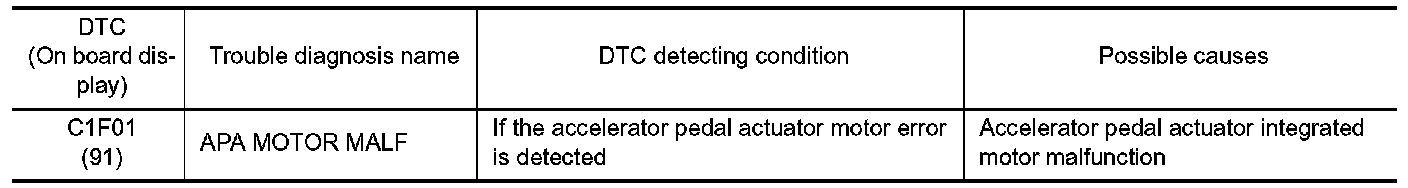

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn the ignition switch OFF.
2. Turn the ignition switch ON.
3. Slowly depress the accelerator pedal completely, and then release it.
4. Repeat step 3 several times.
5. Perform "All DTC Reading" with CONSULT-III.
6. Check if the DTC "C1F01" is detected as the current malfunction on the self-diagnosis results of "ICC/ADAS".
Is "C1F01" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1F01" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. Cruise Control.
NO - GO TO 2.
2.CHECK ACCELERATOR PEDAL ACTUATOR SELF-DIAGNOSIS RESULTS
Check if "C1F01" is detected in "Self Diagnostic Result" of "ACCELE PEDAL ACT".
Is "C1F01" detected?
YES - Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
