LDW & LDP

C1B03 ABNRML TEMP DETECT





ADAS CONTROL UNIT : DTC Logic

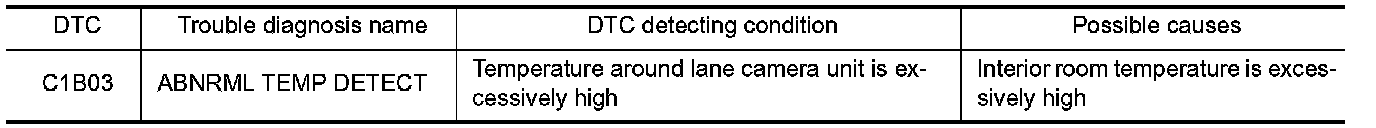

DTC DETECTION LOGIC









ADAS CONTROL UNIT : Diagnosis Procedure
1.CHECK LANE CAMERA UNIT SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading" with CONSULT-III.
2. Check if the "C1B03" is detected in "Self Diagnostic Result" of "LANE CAMERA"
Is "C1B03" detected?
YES - SEE LANE CAMERA UNIT : DTC Logic
NO - GO TO 2.
2.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
1. Erase All self-diagnosis results with CONSULT-III.
2. Perform "All DTC Reading".
3. Check if the "C1B03" is detected in "Self Diagnostic Result" of "ICC/ADAS"
Is "C1B03" detected?
YES - Replace the ADAS control unit. LDW & LDP.
NO - INSPECTION END




LANE CAMERA UNIT : DTC Logic

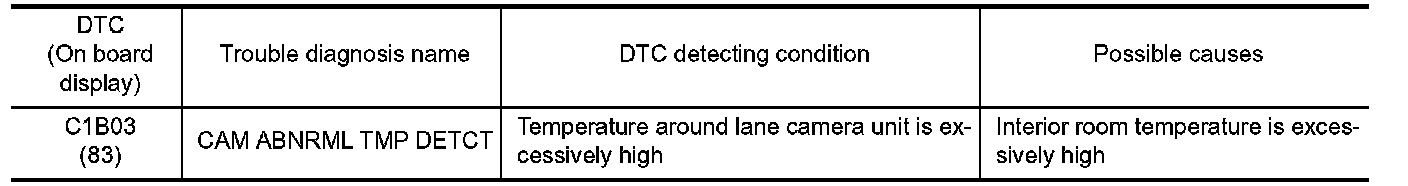

DTC DETECTION LOGIC









LANE CAMERA UNIT : Diagnosis Procedure
1.COOLING LANE CAMERA UNIT
1. Wait for 10 minutes or more to cool the lane camera unit.
2. Erase All self-diagnosis results with CONSULT-III.
3. Perform "All DTC Reading".
4. Check if the "C1B03" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B03" detected?
YES - Replace the lane camera unit. LDW & LDP.
NO - INSPECTION END
