BSW & BSI

C1B00 CAMERA UNIT MALF





ADAS CONTROL UNIT : DTC Logic

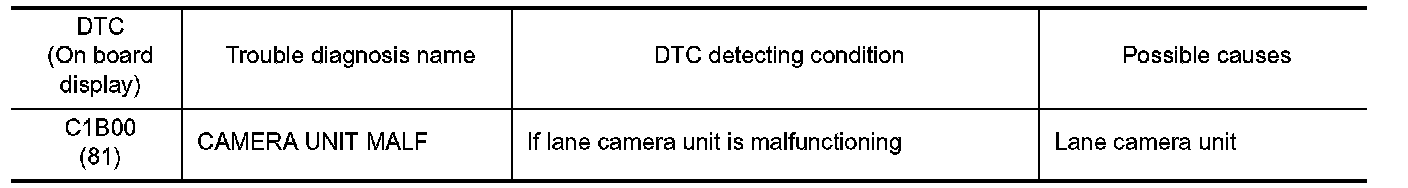

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "C1B00" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1B00" detected as the current malfunction?
YES - SEE ADAS CONTROL UNIT : Diagnosis Procedure.
NO - INSPECTION END




ADAS CONTROL UNIT : Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "C1B00" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B00" detected?
YES - SEE LANE CAMERA UNIT : DTC Logic
NO - Replace the ADAS control unit. Service and Repair.




LANE CAMERA UNIT : DTC Logic

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "C1B00" is detected as the current malfunction in "Self Diagnostic Result" of "LANE CAMERA".
Is "C1B00" detected as the current malfunction?
YES - SEE LANE CAMERA UNIT : Diagnosis Procedure.
NO - INSPECTION END




LANE CAMERA UNIT : Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if any DTC other than "C1B00" is detected in "Self Diagnostic Result" of "LANE CAMERA".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the lane camera unit. BSW & BSI.
