Driver Assistance System

C1A34 COMMAND ERROR





DTC Logic

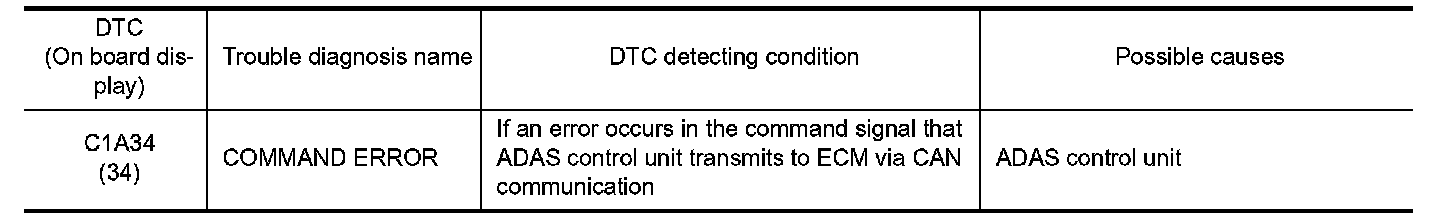

DTC DETECTION LOGIC






NOTE:
If DTC "C1A34" is detected along with DTC "U1000", first diagnose the DTC "U1000". DCA.

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Operate the ICC system and drive.

CAUTION:
Always drive safely.
3. Stop the vehicle.
4. Perform "All DTC Reading" with CONSULT-III.
5. Check if the "C1A34" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A34" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1A34" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. DCA.
NO - Replace the ADAS control unit. Service and Repair.
