Sensor Power Supply Circuit

C1A2A ICC SENSOR POWER SUPPLY CIRCUIT





DTC Logic

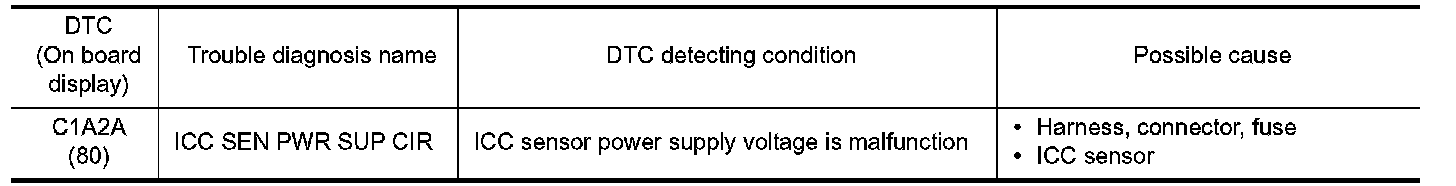

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A2A" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A2A" detected as the current malfunction?
YES - C1A27.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1A2A" in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Cruise Control.
NO - GO TO 2.
2.CHECK ICC SENSOR SELF-DIAGNOSIS
Check if any DTC is detected in "Self Diagnostic Result" of "LASER".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace ADAS control unit. Service and Repair.
