Driver Assistance System

C1A18 LASER AIMING INCMP





DTC Logic

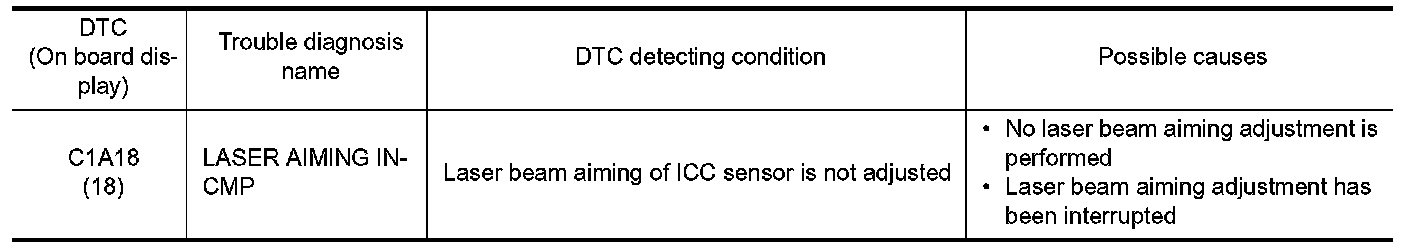

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the DCA system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A18" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A18" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.ADJUST LASER BEAM AIMING
Check if the "C1A18" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected?
YES - C1A18.
NO - Replace the ADAS control unit. Service and Repair.
