Cruise Control System

C1A18 LASER AIMING INCMP





ADAS CONTROL UNIT : DTC Logic

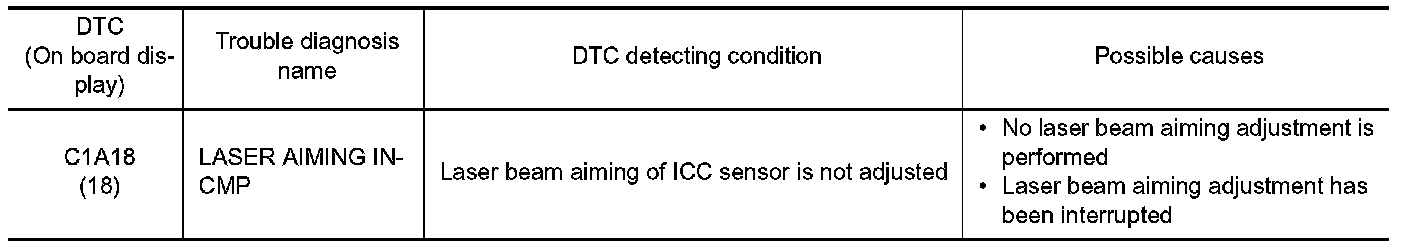

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A18" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A18" detected as the current malfunction?
YES - SEE ADAS CONTROL UNIT : Diagnosis Procedure.
NO - INSPECTION END




ADAS CONTROL UNIT : Diagnosis Procedure
1.ADJUST LASER BEAM AIMING
Check if the "C1A18" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected?
YES - SEE ICC SENSOR : DTC Logic.
NO - Replace the ADAS control unit. Service and Repair.




ICC SENSOR : DTC Logic

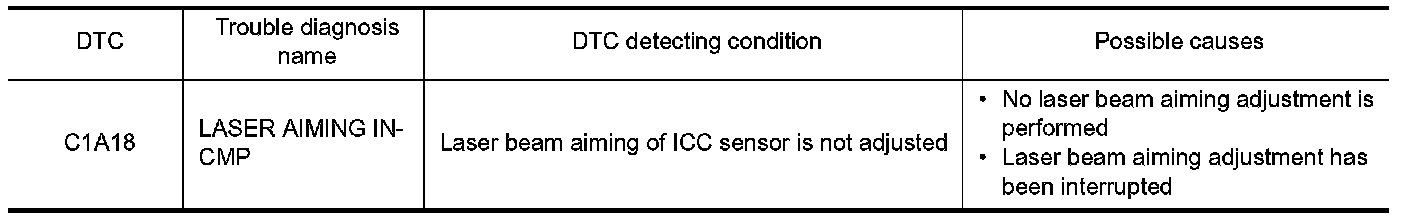

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A18" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected as the current malfunction?
YES - SEE ICC SENSOR : Diagnosis Procedure.
NO - INSPECTION END




ICC SENSOR : Diagnosis Procedure
1.ADJUST LASER BEAM AIMING
1. Adjust the laser beam aiming. Description.
2. Erase All self-diagnosis results with CONSULT-III.
3. Perform "All DTC Reading".
4. Check if the "C1A18" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A18" detected?
YES - Replace the ICC sensor. Exploded View.
NO - INSPECTION END
