Sensor

C1A17 ICC SENSOR





DTC Logic

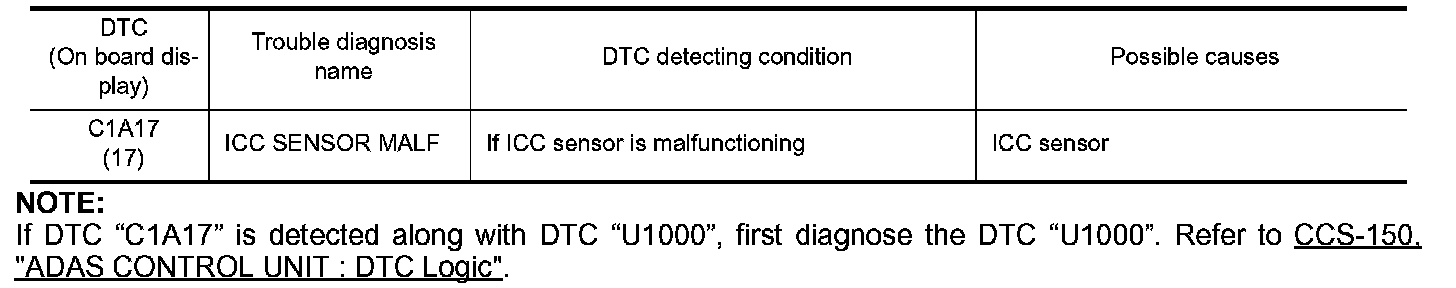

DTC DETECTION LOGIC






NOTE:
If DTC "C1A17" is detected along with DTC "U1000", first diagnose the DTC "U1000". Cruise Control.




Diagnosis Procedure
1.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading" with CONSULT-III.
2. Check if "U1000" is detected other than "C1A17" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000"detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Cruise Control.
NO - GO TO 2.
2.CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS
Check if any DTC is detected in "Self Diagnostic Result" of "LASER".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace ADAS control unit. Service and Repair.
