Cruise Control System

C1A16 RADAR STAIN





ADAS CONTROL UNIT : DTC Logic

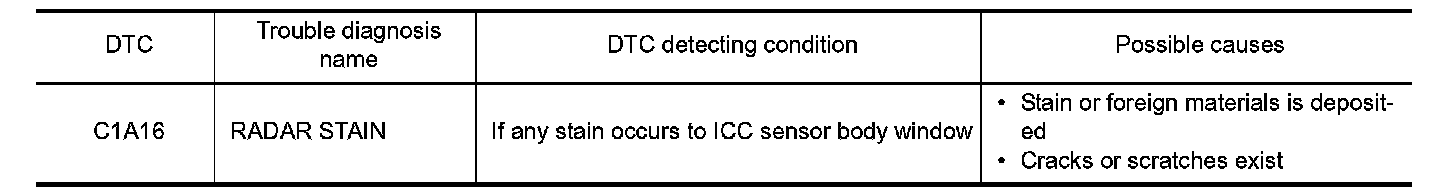

DTC DETECTION LOGIC






NOTE:
DTC "C1A16" may be detected under the following conditions. (Explain to the customer about the difference between the contamination detection function and the indication when the malfunction is detected and tell them "This is not malfunction".)
- When contamination or foreign materials adhere to the ICC sensor body window
- When driving while it is snowing or when frost forms on the ICC sensor body window
- When ICC sensor body window is temporarily fogged




ADAS CONTROL UNIT : Diagnosis Procedure
1.CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading" with CONSULT-III.
2. Check if the "C1A16" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A16"detected?
YES - SEE ICC SENSOR : DTC Logic.
NO - GO TO 2.
2.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
1. Erase All self-diagnosis results with CONSULT-III.
2. Perform "All DTC Reading"
3. Check if the "C1A16" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A16"detected?
YES - Replace ADAS control unit. Service and Repair.
NO - INSPECTION END




ICC SENSOR : DTC Logic

DTC DETECTION LOGIC






NOTE:
DTC "C1A16" may be detected under the following conditions. (Explain to the customer about the difference between the contamination detection function and the indication when the malfunction is detected and tell them "This is not malfunction".)
- When contamination or foreign materials adhere to the ICC sensor body window
- When driving while it is snowing or when frost forms on the ICC sensor body window
- When ICC sensor body window is temporarily fogged




ICC SENSOR : Diagnosis Procedure
1.VISUAL CHECK 1
Check ICC sensor body window for contamination and foreign materials.
Does contamination or foreign materials adhere?
YES - Wipe out the contamination and foreign materials from the ICC sensor body window.
NO - GO TO 2.
2.VISUAL CHECK 2
Check ICC sensor body window for cracks and scratches.
Is it found?
YES - Replace the ICC sensor. Exploded View.
NO - GO TO 3.
3.INTERVIEW
1. Ask if there is any trace of contamination or foreign materials adhering to the ICC sensor body window.
2. Ask if ICC sensor body window was frosted during driving or if vehicle was driven in snow.
3. Ask if ICC sensor body window was temporarily fogged. (Windshield glass may also tend to fog, etc.)
Is any of above conditions seen?
YES - Explain to the customer about the difference between the contamination detection function and the indication when the malfunction is detected and tell them "This is not malfunction".
NO - Replace the ICC sensor. Exploded View.
