DCA

C1A15 GEAR POSITION





Description
ADAS control unit judges the gear position based on the following signals.
- Current gear position signal transmitted from TCM via CAN communication.
- Value of gear ratio calculated from input speed signal transmitted from TCM via CAN communication.
- Value of gear ratio calculated from the vehicle speed signal transmitted from ABS actuator and electric unit
(control unit) via CAN communication.




DTC Logic

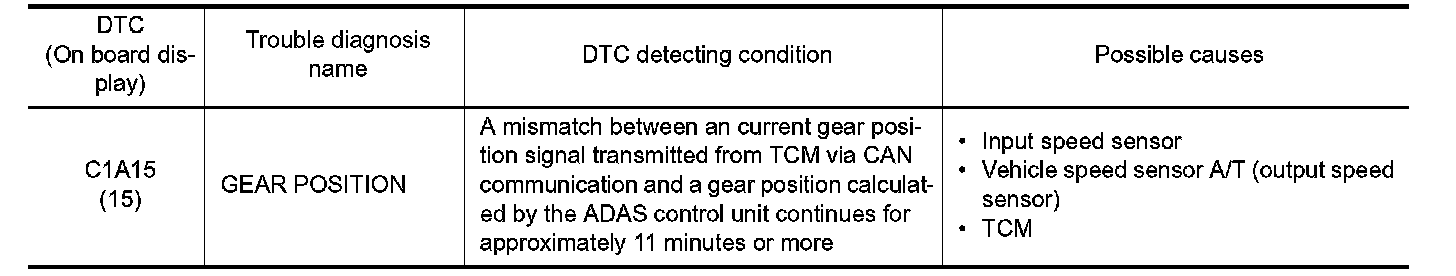

DTC DETECTION LOGIC






NOTE:
If DTC "C1A15" is detected along with DTC "U1000", "C1A03", or "C1A04", first diagnose the DTC "U1000", "C1A03", or "C1A04".
- DCA for DTC "U1000".
- DCA for DTC "C1A03".
- DCA for DTC "C1A04".

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the DCA system ON.
3. Drive the vehicle at 10 km/h (6 MPH) or faster for approximately 15 minutes or more.

CAUTION:
Always drive safely.
4. Stop the vehicle.
5. Perform "All DTC Reading" with CONSULT-III.
6. Check if "C1A15" is detected as the current malfunction in the "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A15" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "C1A03", "C1A04", or "U1000" is detected other than "C1A15" in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - GO TO 2.
2.CHECK VEHICLE SPEED SIGNAL
Check that "VHCL SPEED SE" operates normally in "DATA MONITOR" of "ICC/ADAS".

CAUTION:
Be careful of the vehicle speed.
Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 7.
3.CHECK GEAR POSITION
Check that "GEAR" operates normally in "DATA MONITOR" of "ICC/ADAS".

CAUTION:
Be careful of the vehicle speed.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK GEAR POSITION SIGNAL
Check that "GEAR" operates normally in "DATA MONITOR" of "TRANSMISSION".
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 6.
5.CHECK INPUT SPEED SENSOR SIGNAL
Check that "INPUT SPEED" operates normally in "DATA MONITOR" of "TRANSMISSION".
Is the inspection result normal?
YES - Replace the ADAS control unit. Service and Repair.
NO - GO TO 6.
6.CHECK TCM SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading".
2. Check if any DTC is detected in "Self Diagnostic Result" of "TRANSMISSION".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
7.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading".
2. Check if any DTC is detected in "Self Diagnostic Result" of "ABS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
