Cruise Control System

C1A15 GEAR POSITION





Description
ADAS control unit judges the gear position based on the following signals.
- Current gear position signal transmitted from TCM via CAN communication.
- Value of gear ratio calculated from input speed signal transmitted from TCM via CAN communication.
- Value of gear ratio calculated from the vehicle speed signal transmitted from ABS actuator and electric unit
(control unit) via CAN communication.




DTC Logic

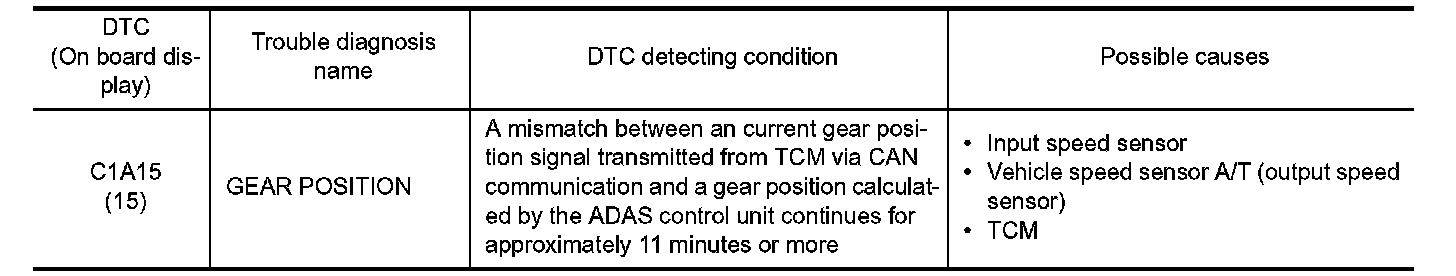

DTC DETECTION LOGIC






NOTE:
If DTC "C1A15" is detected along with DTC "U1000", "C1A03", or "C1A04", first diagnose the DTC "U1000", "C1A03", or "C1A04".
- Cruise Control for DTC "U1000".
- C1A03 for DTC "C1A03".
- C1A04 for DTC "C1A04".

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Drive the vehicle at 10 km/h (6 MPH) or faster for approximately 15 minutes or more.

CAUTION:
Always drive safely.
4. Stop the vehicle.
5. Perform "All DTC Reading" with CONSULT-III.
6. Check if "C1A15" is detected as the current malfunction in the "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A15" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "C1A03", "C1A04", or "U1000" is detected other than "C1A15" in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - GO TO 2.
2.CHECK VEHICLE SPEED SIGNAL
Check that "VHCL SPEED SE" operates normally in "DATA MONITOR" of "ICC/ADAS".

CAUTION:
Be careful of the vehicle speed.
Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 7.
3.CHECK GEAR POSITION
Check that "GEAR" operates normally in "DATA MONITOR" of "ICC/ADAS".

CAUTION:
Be careful of the vehicle speed.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4.
4.CHECK GEAR POSITION SIGNAL
Check that "GEAR" operates normally in "DATA MONITOR" of "TRANSMISSION".
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 6.
5.CHECK INPUT SPEED SENSOR SIGNAL
Check that "INPUT SPEED" operates normally in "DATA MONITOR" of "TRANSMISSION".
Is the inspection result normal?
YES - Replace the ADAS control unit. Service and Repair.
NO - GO TO 6.
6.CHECK TCM SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading".
2. Check if any DTC is detected in "Self Diagnostic Result" of "TRANSMISSION".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
7.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading".
2. Check if any DTC is detected in "Self Diagnostic Result" of "ABS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.
