Driver Assistance System

C1A12 LASER BEAM OFF CENTER





DTC Logic

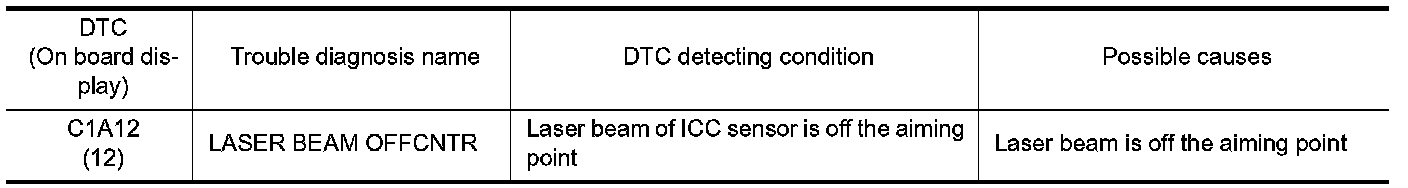

DTC DETECTION LOGIC









Diagnosis Procedure
1.CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading" with CONSULT-III.
2. Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES - C1A12.
NO - GO TO 2.
2.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A12" detected?
YES - Replace ADAS control unit. Service and Repair.
NO - INSPECTION END
