Cruise Control System

C1A12 LASER BEAM OFF CENTER





ADAS CONTROL UNIT : DTC Logic

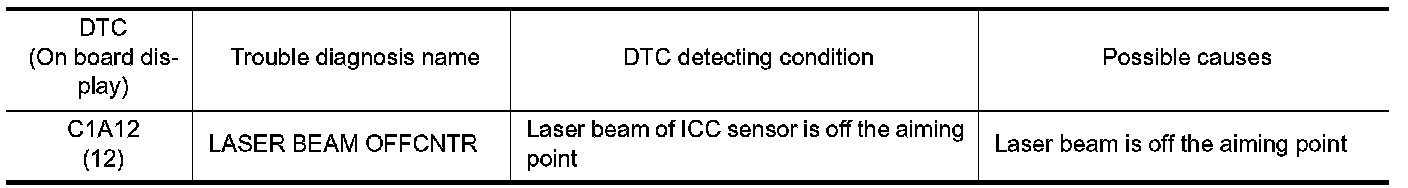

DTC DETECTION LOGIC









ADAS CONTROL UNIT : Diagnosis Procedure
1.CHECK ICC SENSOR SELF-DIAGNOSIS RESULTS
1. Perform "All DTC Reading" with CONSULT-III.
2. Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES - SEE ICC SENSOR : DTC Logic.
NO - GO TO 2.
2.CHECK ADAS CONTROL UNIT SELF-DIAGNOSIS RESULTS
Check if the "C1A12" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A12" detected?
YES - Replace ADAS control unit. Service and Repair.
NO - INSPECTION END




ICC SENSOR : DTC Logic

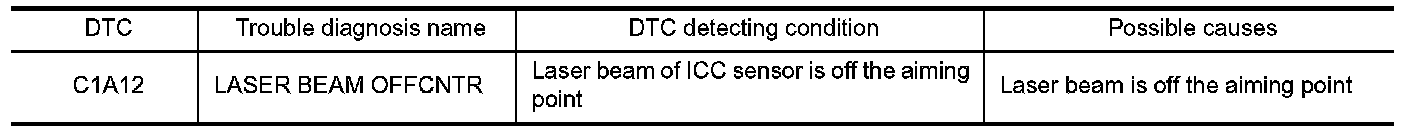

DTC DETECTION LOGIC









ICC SENSOR : Diagnosis Procedure
1.ADJUST LASER BEAM AIMING
1. Adjust the laser beam aiming with CONSULT-III. Description.
2. Perform "All DTC Reading".
3. Check if the "C1A12" is detected in "Self Diagnostic Result" of "LASER".
Is "C1A12" detected?
YES - Replace ICC sensor. Exploded View.
NO - INSPECTION END
