LDW & LDP

C1A01 POWER SUPPLY CIRCUIT 1, C1A02 POWER SUPPLY CIRCUIT 2





DTC Logic

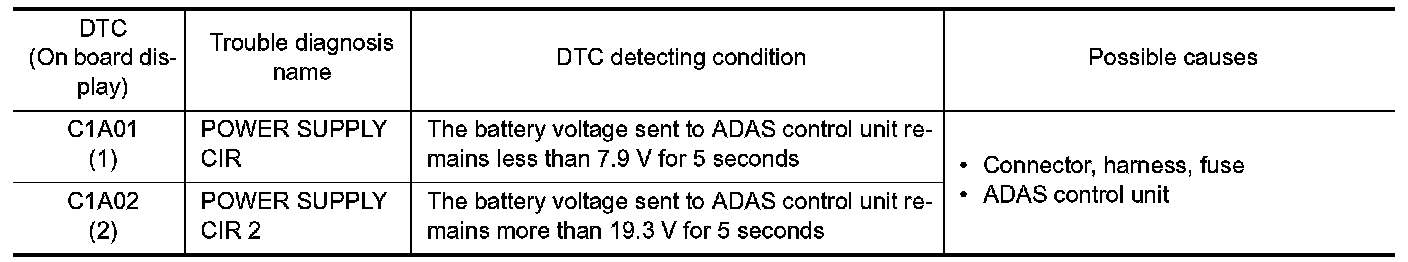

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the LDP system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A01" or "C1A02" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A01" or "C1A02" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK ADAS CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT
Check power supply and ground circuit of ADAS control unit. LDW & LDP.
Is the inspection result normal?
YES - Replace the ADAS control unit. Service and Repair.
NO - Repair or replace the malfunctioning parts.
