ADAS Control Unit

C1A01 POWER SUPPLY CIRCUIT 1, C1A02 POWER SUPPLY CIRCUIT 2





DTC Logic

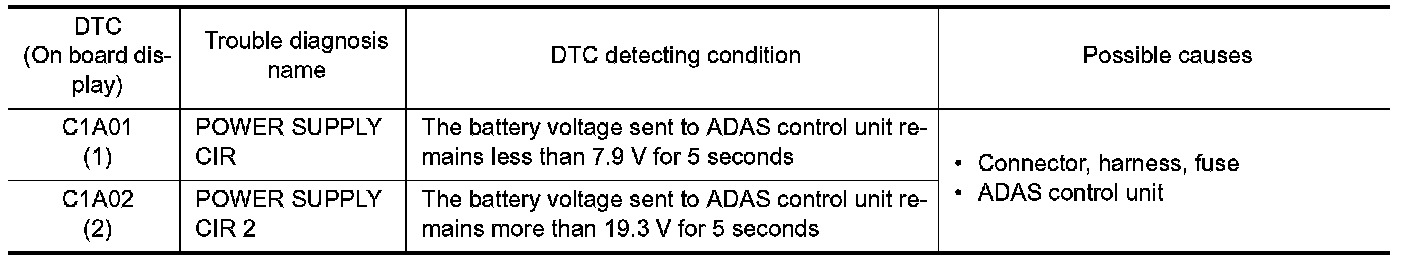

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A01" or "C1A02" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A01" or "C1A02" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK ADAS CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT
Check power supply and ground circuit of ADAS control unit. ADAS Control Unit.
Is the inspection result normal?
YES - Replace the ADAS control unit. Service and Repair.
NO - Repair or replace the malfunctioning parts.
