Cruise Control System

C1A00 CONTROL UNIT





ADAS CONTROL UNIT : DTC Logic

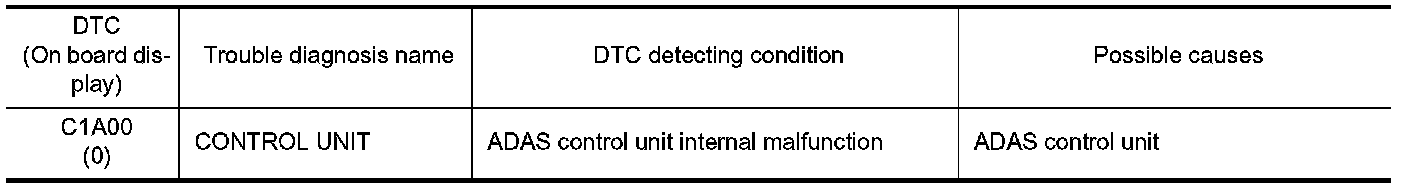

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "C1A00" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A00" detected as the current malfunction?
YES - SEE ADAS CONTROL UNIT : Diagnosis Procedure.
NO - INSPECTION END




ADAS CONTROL UNIT : Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if any DTC other than "C1A00" is detected in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ADAS control unit. Service and Repair.




ICC SENSOR : DTC Logic

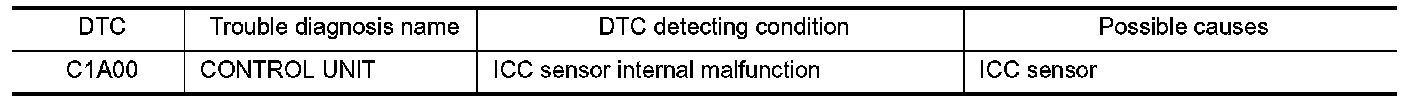

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Perform "All DTC Reading" with CONSULT-III.
3. Check if the "C1A00" is detected as the current malfunction in "Self Diagnostic Result" of "LASER".
Is "C1A00" detected as the current malfunction?
YES - SEE ICC SENSOR : Diagnosis Procedure.
NO - INSPECTION END




ICC SENSOR : Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if any DTC other than "C1A00" is detected in "Self Diagnostic Result" of "LASER".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace the ICC sensor. Exploded View.
