C1930

C1930 4WAS FRONT CONTROL UNIT





DTC Logic

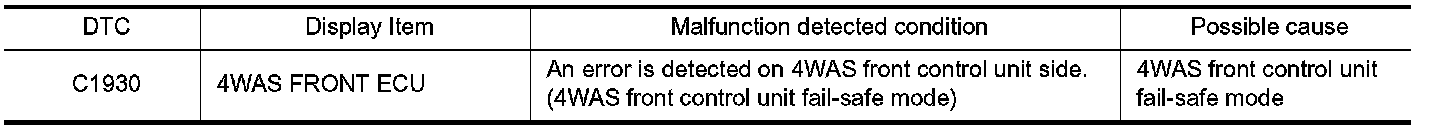

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.RECHECK DTC
With CONSULT-III
1. Turn the ignition switch from OFF to ON.
2. Perform self-diagnosis for "4WAS(MAIN)/RAS/HICAS".
Is DTC "C1930" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS (4WAS MAIN CONTROL UNIT)
With CONSULT-III
Perform self-diagnosis for "4WAS(MAIN)/RAS/HICAS".
Is any DTC except "C1930" detected?
YES - Check the error system.
NO - Perform self-diagnosis for "4WAS(FRONT)". Consult-III Function 4WAS(Front), "CONSULT-III Function [4WAS(FRONT)]".
