B275C, B275D, B275E INTAKE DOOR MOTOR





DTC Logic

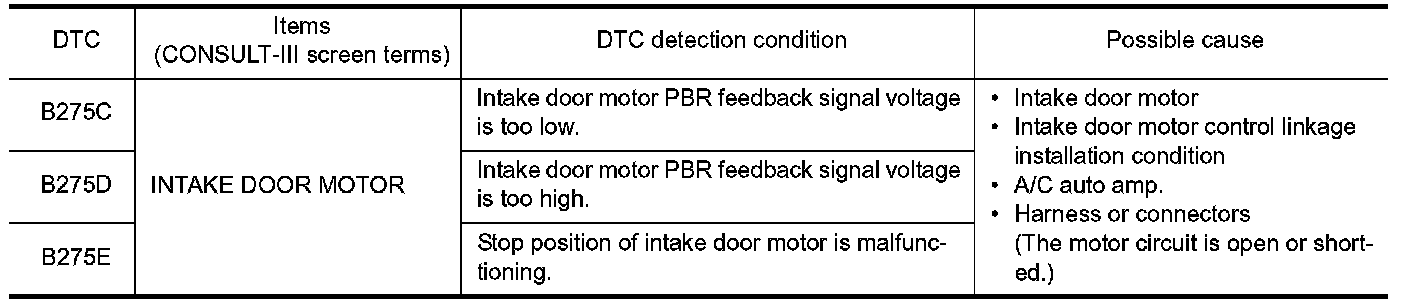

DTC DETECTION LOGIC

NOTE:
- If DTC is displayed along with DTC U1000, first perform the trouble diagnosis for DTC U1000. HAC-
94, "DTC Logic".
- If DTC is displayed along with DTC U1010, first perform the trouble diagnosis for DTC U1010. Control Unit Control Unit Control Unit, "DTC Logic".
- If All of door motors DTC (B2750 � B276A) are detected, check door motor PBR power supply and ground circuit. (With Forest
Air).
- If All of door motors DTC (B2750 � B2764) are detected, check door motor PBR power supply and ground circuit. (Without
Forest Air).






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch ON.
2. Select "Self Diagnostic Result" mode of "HVAC" using CONSULT-III.
3. Check DTC.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK INTAKE DOOR MOTOR OPERATION
1. Turn ignition switch ON.
2. Operate FRE switch and REC switch (with Forest Air) or intake switch (without Forest Air).
3. Listen to intake sound and confirm air inlets change.
Does it operate normally?
YES - GO TO 8.
NO - GO TO 2.
2.CHECK INTAKE DOOR MOTOR DRIVE SIGNAL
1. Operate FRE switch and REC switch (with Forest Air) or intake switch (without Forest Air).

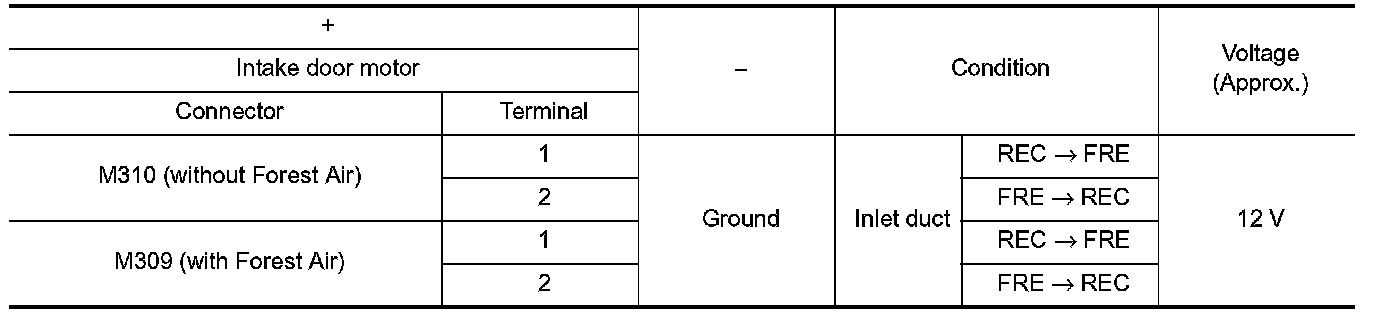

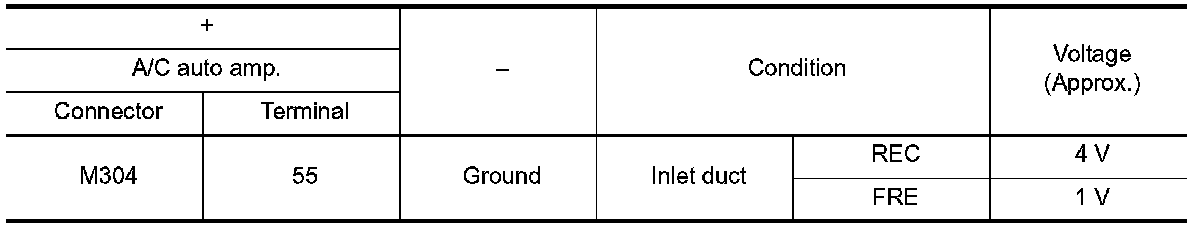

2. Check voltage between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - GO TO 3.
3.CHECK INTAKE DOOR MOTOR DRIVE SIGNAL CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Disconnect intake door motor connector.

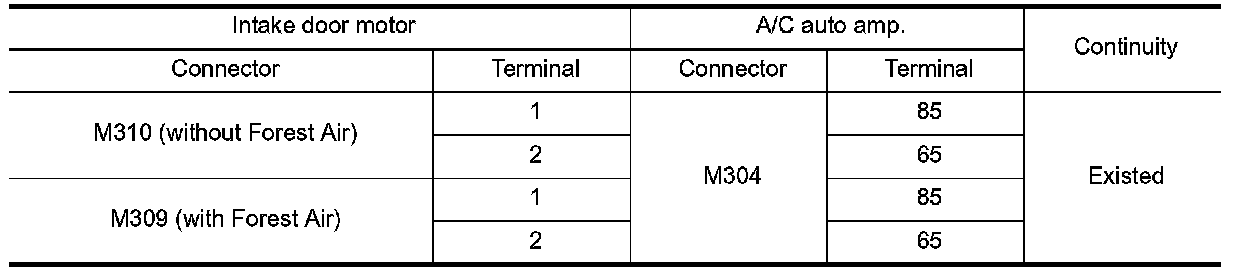

4. Check continuity between intake door motor harness connector and A/C auto amp. harness connector.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair harness or connector.
4.CHECK INTAKE DOOR MOTOR DRIVE SIGNAL CIRCUIT FOR GROUND SHORT

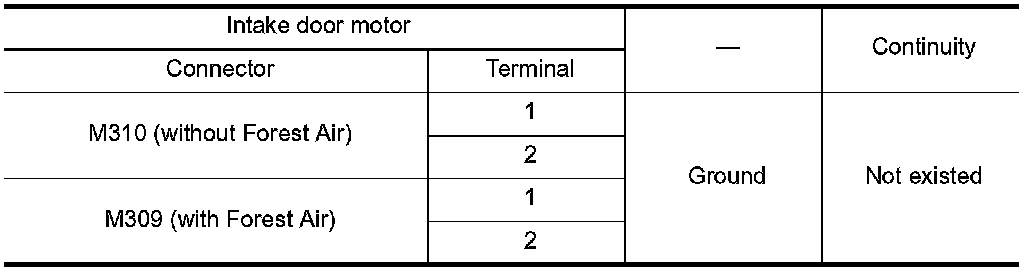

Check continuity between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair harness or connector.
5.CHECK INTAKE DOOR MOTOR DRIVE SIGNAL CIRCUIT FOR BATTERY SHORT
1. Turn ignition switch ON.
2. Check voltage between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 15.
NO - Repair harness or connector.
6.CHECK INTAKE DOOR MOTOR
Check intake door motor. SEE Component Inspection (Motor).
Is the inspection result normal?
YES - GO TO 7.
NO - Replace intake door motor. Intake Door Motor Removal And Installation.
7.CHECK INSTALLATION OF INTAKE DOOR MOTOR CONTROL LINKAGE
Check intake door motor control linkage is properly installed. Door Motor.
Is the inspection result normal?
YES - GO TO 15.
NO - Repair or replace malfunctioning parts.
8.CHECK INTAKE DOOR MOTOR PBR FEEDBACK SIGNAL
1. Operate FRE switch and REC switch (with Forest Air) or intake switch (without Forest Air).
2. Check voltage between A/C auto amp. harness connector and ground.





Is the inspection result normal?
YES - GO TO 15.
NO - GO TO 9.
9.CHECK INTAKE DOOR MOTOR PBR FEEDBACK SIGNAL CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Disconnect intake door motor connector.

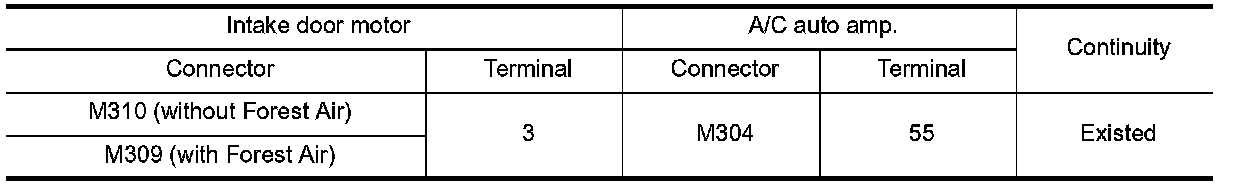

4. Check continuity between intake door motor harness connector and A/C auto amp. harness connector.





Is the inspection result normal?
YES - GO TO 10.
NO - Repair harness or connector.
10.CHECK INTAKE DOOR MOTOR PBR FEEDBACK SIGNAL CIRCUIT FOR SHORT

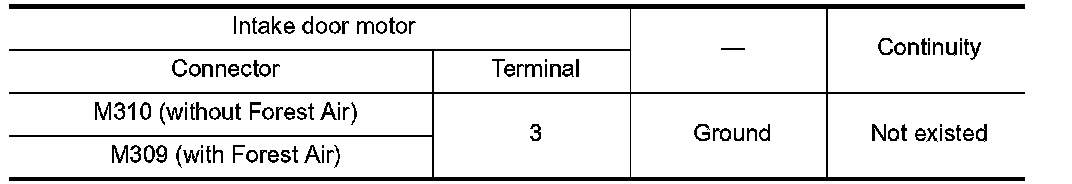

Check continuity between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 11.
NO - Repair harness or connector.
11.CHECK INTAKE DOOR MOTOR PBR POWER SUPPLY
1. Connect A/C auto amp. connector.
2. Turn ignition switch ON.

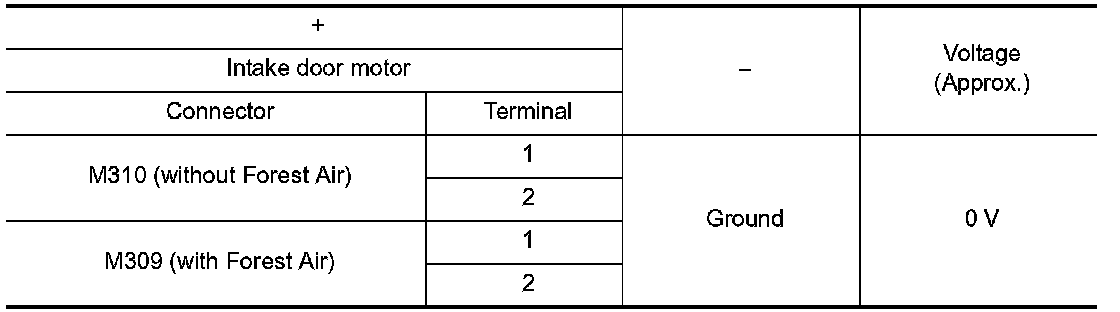

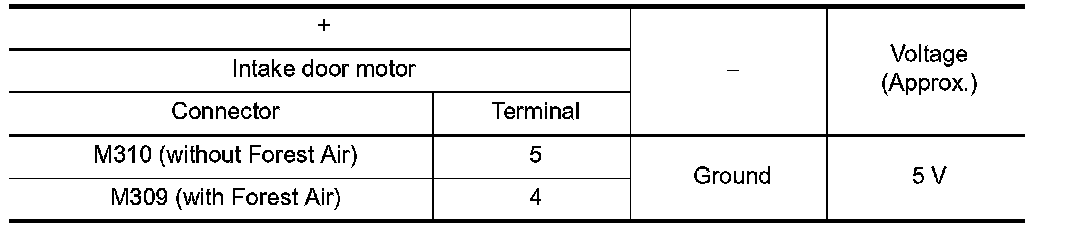

3. Check voltage between intake door motor harness connector and ground.





Is the inspection result normal?
YES - GO TO 13.
NO - GO TO 12.
12.CHECK INTAKE DOOR MOTOR PBR FEEDBACK PBR POWER SUPPLY CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.

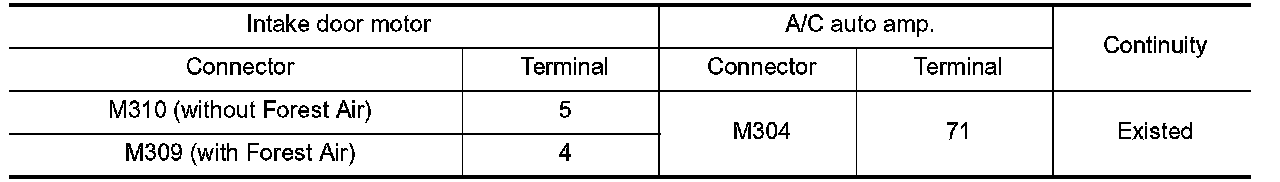

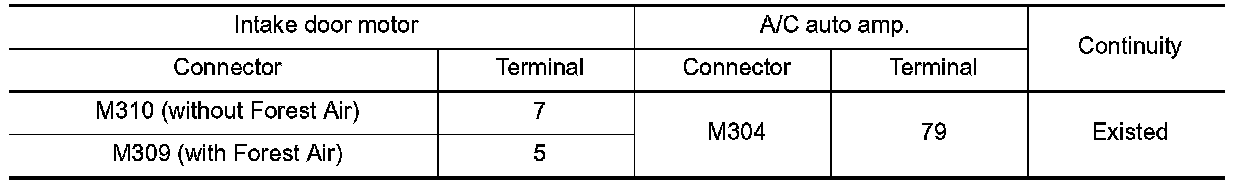

3. Check continuity between intake door motor harness connector and A/C auto amp. harness connector.





Is the inspection result normal?
YES - GO TO 15.
NO - Repair harness or connector.
13.CHECK INTAKE DOOR MOTOR PBR FEEDBACK PBR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between intake door motor harness connector and A/C auto amp. harness connector.





Is the inspection result normal?
YES - GO TO14.
NO - Repair harness or connector.
14.CHECK INTAKE DOOR MOTOR PBR
Check intake door motor PBR. SEE Component Inspection (PBR).
Is the inspection result normal?
YES - GO TO 15.
NO - Replace intake door motor. Intake Door Motor Removal And Installation.
15.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
YES - Replace A/C auto amp. Removal And Installation.
NO - Repair or replace malfunctioning parts.




Component Inspection (Motor)
1.CHECK INTAKE DOOR MOTOR
1. Turn ignition switch OFF.
2. Disconnect intake door motor connector.
3. Supply intake door motor terminals with battery voltage and check by visually and operation sound that intake door motor operates.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace intake door motor. Intake Door Motor Removal And Installation.




Component Inspection (PBR)
1.CHECK INTAKE DOOR MOTOR PBR

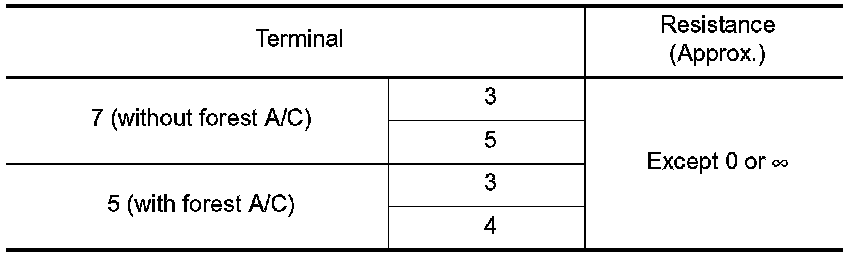

Check resistance between intake door motor terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace intake door motor. Intake Door Motor Removal And Installation.
