B26F6

B26F6 BCM





DTC Logic

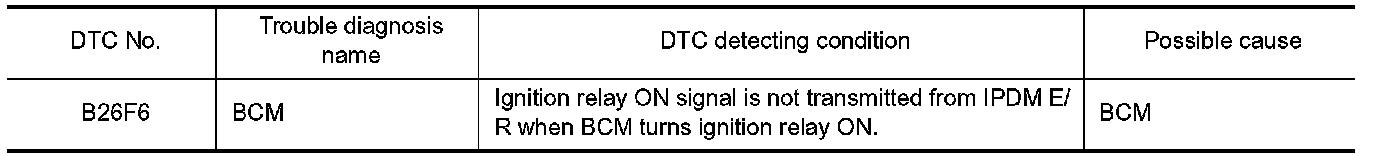

DTC DETECTION LOGIC

NOTE:
- If DTC B26F6 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Body Control System.
- If DTC B26F6 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Body Control System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions, and wait for 1 second or more.
- Selector lever is in the P or N position
- Do not depress brake pedal
2. Check "Self-diagnosis result" of BCM with CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.INSPECTION START
1. Turn ignition switch ON.
2. Select "Self-diagnosis result" of BCM with CONSULT-III.
3. Touch "ERASE".
4. Perform DTC Confirmation Procedure.
See SEE DTC Logic.
Is DTC detected?
YES - Replace BCM. Service and Repair
NO - INSPECTION END
