B26F3

B26F3 STARTER CONTROL RELAY





DTC Logic

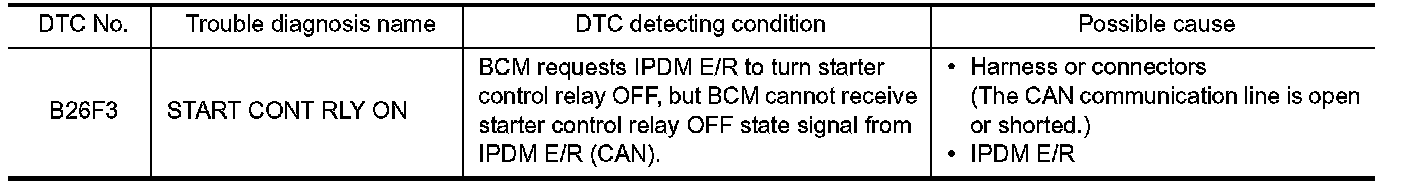

DTC DETECTION LOGIC

NOTE:
- If DTC B26F3 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Body Control System.
- If DTC B26F3 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Body Control System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Press push-button ignition switch under the following conditions to start engine.
- Selector lever: In the P position
- Brake pedal: Depressed
2. Wait 2 seconds after engine started.
3. Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC OF IPDM E/R
Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT-III.
Is DTC detected?
YES - Perform the diagnosis procedure related to the detected DTC. SEE DTC Logic.
NO - GO TO 2.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
