B26F2

B26F2 IGNITION RELAY





DTC Logic

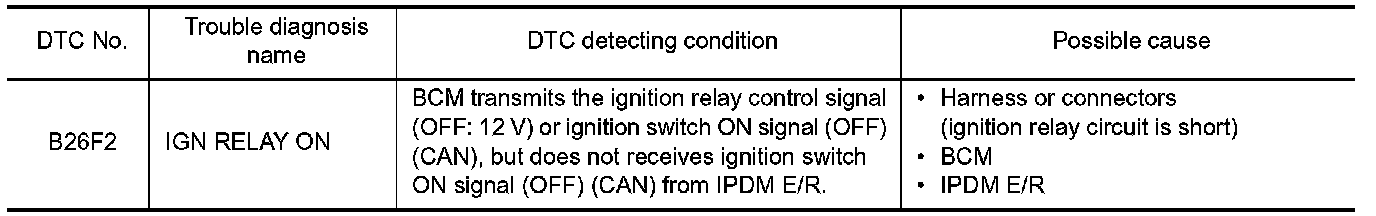

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions, and wait for 2 seconds or more.
- Selector lever is in the P or N position
- Do not depress brake pedal
2. Check "Self-diagnosis result" with CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK IPDM E/R SELF-DIAGNOSTIC RESULT
1. Turn ignition switch ON.
2. Erase the DTC of IPDM E/R.
3. Turn ignition switch OFF.
4. Turn ignition switch ON and check the DTC again.
Is DTC detected?
YES - Repair or replace the malfunctioning part. Testing and Inspection.
NO - GO TO 2.
2.CHECK IGNITION RELAY (IPDM E/R) CONTROL SIGNAL
1. Turn ignition switch OFF.

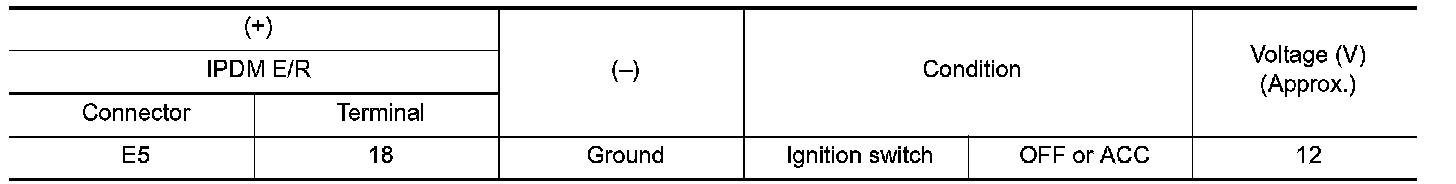

2. Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R.
NO - GO TO 3.
3.CHECK IGNITION RELAY (IPDM E/R) CONTROL SIGNAL CIRCUIT - 1
1. Disconnect BCM and IPDM E/R connectors.

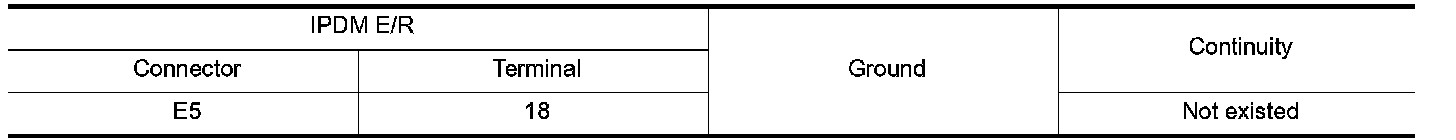

2. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK IGNITION RELAY (IPDM E/R) CONTROL SIGNAL CIRCUIT - 2
1. Connect IPDM E/R connectors.

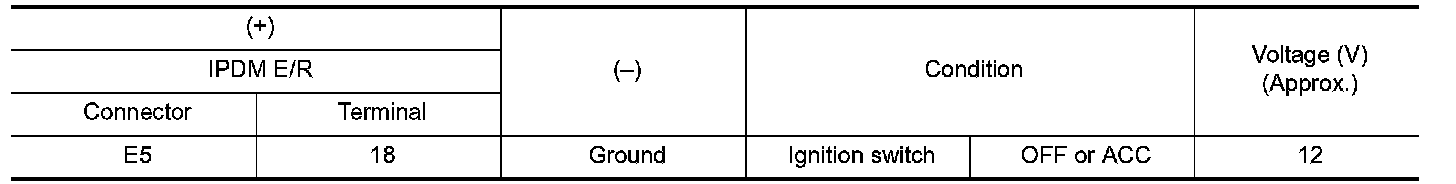

2. Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Service and Repair.
NO - Replace IPDM E/R.
