B26E7

B26E7 TPMS CAN COMM





DTC Logic

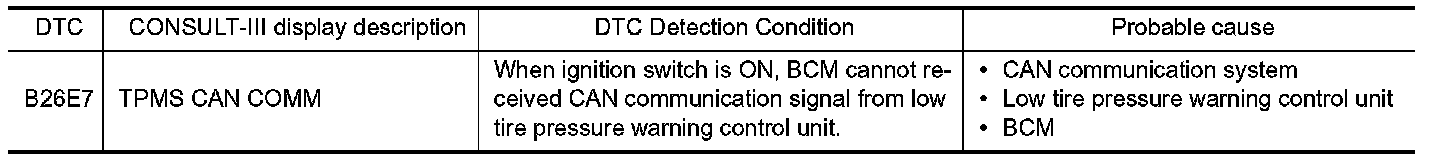

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION
1. Erase the DTC.
2. Turn ignition switch OFF.
3. Perform the "Self Diagnostic Result" of BCM with CONSULT-III, when passed 2 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure

NOTE:
If DTC "B26E7" detected along with DTC "U1000", first diagnose the DTC "U1000". Body Control System Body Control System Body Control System, "Diagno-
sis Procedure".
1.LOW TIRE PRESSURE WARNING CONTROL UNIT SELF DIAGNOSTIC RESULT
Perform "Self Diagnostic Result" of low tire pressure warning control unit with CONSULT-III. Scan Tool Testing and Procedures, "CONSULT-III Function".
Is any DTC detected?
YES - GO TO 2.
NO - GO TO 4.
2.LOW TIRE PRESSURE WARNING CONTROL UNIT DIAGNOSIS
Perform low tire pressure warning control unit component diagnosis of detected DTC. Testing and Inspection, "DTC
Index".
- GO TO 3.
3.BCM SELF DIAGNOSTIC RESULT
Erase DTC of BCM, and perform "Self Diagnostic Result" again.
Is DTC "B26E7" detected?
YES - Replace BCM. Service and Repair.
NO - INSPECTION END
4.REPLACE LOW TIRE PRESSURE WARNING CONTROL UNIT TEMPORARILY
Remove low tire pressure warning control unit, and install normal low tire pressure warning control unit.
- GO TO 5.
5.BCM SELF-DIAGNOSTIC RESULT
Erase DTC of BCM, and perform "Self Diagnostic Result" of BCM again.
Is DTC "B26E7" detected?
YES - Replace BCM. Service and Repair.
NO - Replace low tire pressure warning control unit. Removal And Installation.
