B261A

B261A PUSH-BUTTON IGNITION SWITCH





DTC Logic

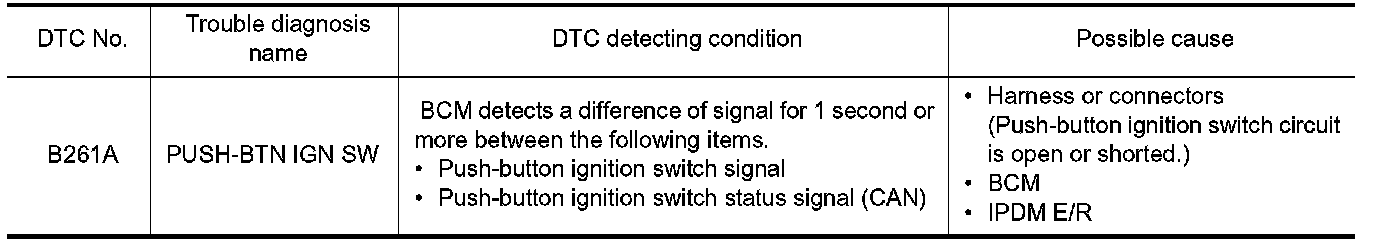

DTC DETECTION LOGIC

NOTE:
- If DTC B261A is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Body Control System.
- If DTC B261A is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Body Control System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Press the push-button ignition switch under the following conditions, and wait for 1 second or more.
- Selector lever is in the P or N position
- Do not depress brake pedal
2. Check "Self-diagnosis result" of BCM with CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK IGNITION SWITCH OUTPUT SIGNAL (PUSH-BUTTON IGNITION SWITCH)
1. Disconnect push-button ignition switch connector and IPDM E/R connector.

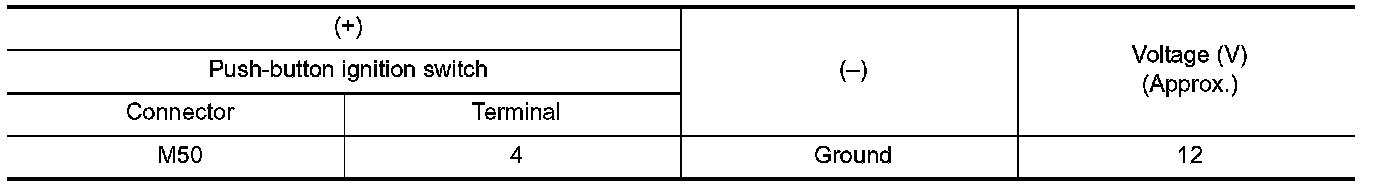

2. Check voltage between push-button ignition switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (BCM)
1. Disconnect BCM connector.

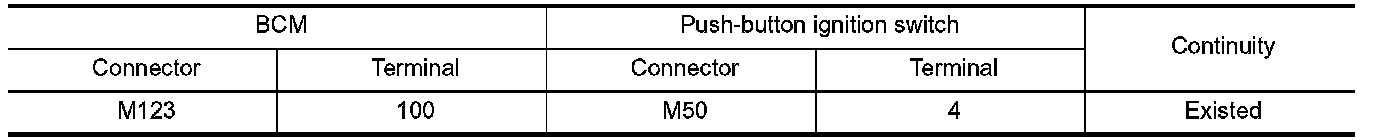

2. Check continuity between BCM harness connector and push-button ignition switch harness connector.

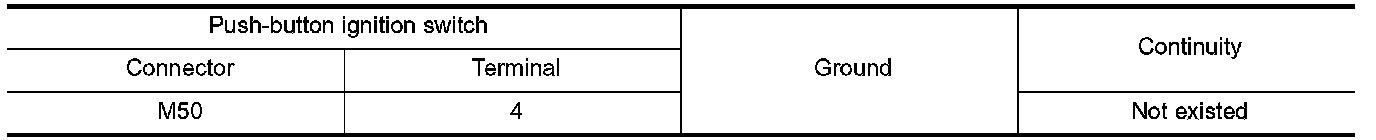

3. Check continuity between push-button ignition switch harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Service and Repair.
NO - Repair or replace harness.
3.CHECK IGNITION SWITCH OUTPUT SIGNAL (IPDM E/R)

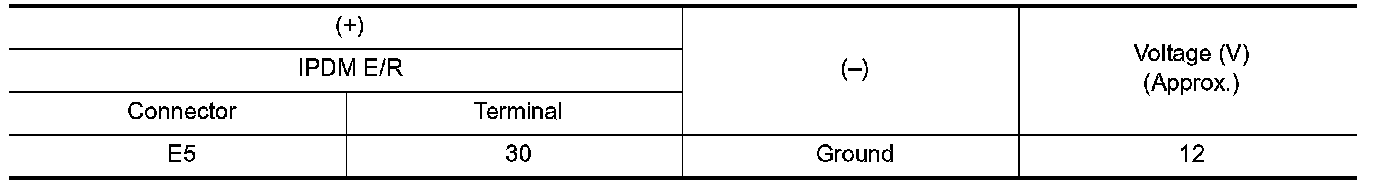

Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R.
NO - GO TO 4.
4.CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (IPDM E/R)
1. Disconnect IPDM E/R connector.

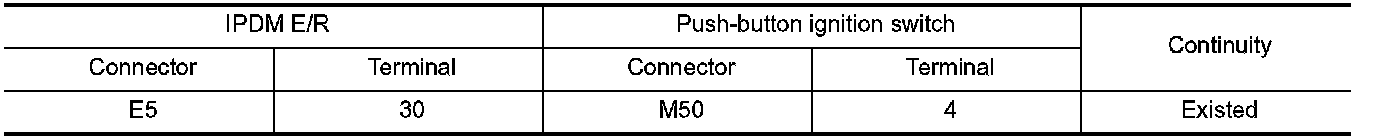

2. Check continuity between IPDM E/R harness connector and push-button ignition switch harness connector.

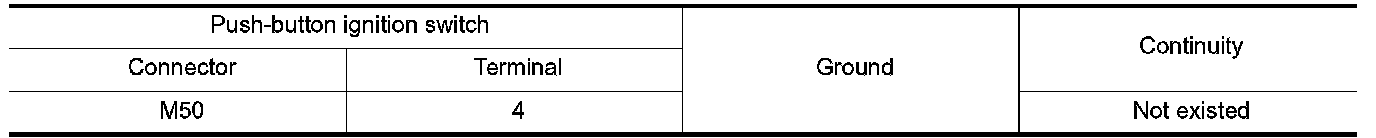

3. Check continuity between push-button ignition switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace harness.
5.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
