B2517

B2517 VEHICLE SPEED SIGNAL





DTC Logic

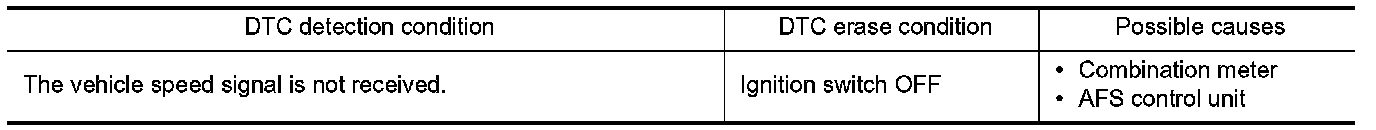

DTC DETECTION LOGIC
[B2517] Vehicle speed signal






DTC CONFIRMATION PROCEDURE
1.DTC ERASE
Erase the DTC memory of AFS with CONSULT-III.
- GO TO 2.
2.DTC CONFIRMATION
1. Turn ignition ON.
2. Select the self-diagnosis with CONSULT-III.
3. Check the self-diagnosis result. Testing and Inspection.
Is DTC "B2517" detected?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.COMBINATION METER SELF-DIAGNOSIS
Check the self-diagnosis result with CONSULT-III. Check that the combination meter does not detect any
DTCs.
Is any DTC detected?
YES - Check the combination meter Scan Tool Testing and Procedures.
NO - GO TO 2.
2.DTC ERASE
Erase the DTC memory of AFS with CONSULT-III.
Is the memory erased?
YES - INSPECTION END.
NO - Replace AFS control unit. Removal And Installation Xenon Type
