B2451

B2451 SEAT BLT MTR DR CIRC





DTC Logic

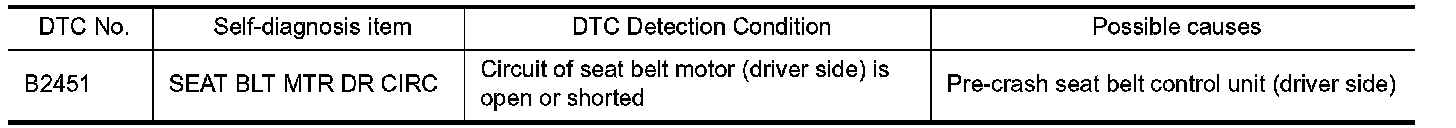

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.SELF-DIAGNOSIS WITH PRE-CRASH SEAT BELT CONTROL UNIT
1. Turn ignition switch ON.
2. Check "Self-diagnostic result" with CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - Driver side pre-crash seat belt motor system is normal.




Diagnosis Procedure
1.INSPECTION START
1. Check "Self-diagnostic result" with CONSULT-III.
2. Touch "ERASE".
3. Perform DTC Confirmation Procedure.
See SEE DTC Logic.
Is DTC B2451 displayed again?
YES - Replace pre-crash seat belt control unit (driver side).
NO - GO TO 2.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
