B2130

B2130 EEPROM





DTC Logic

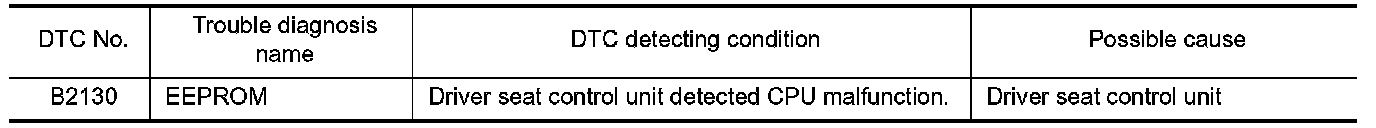

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.STEP 1
Turn ignition switch ON.
- GO TO 2.
2.STEP 2
Check "Self diagnostic result" with CONSULT-III.
Is the DTC detected?
YES - Perform diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check "Self diagnostic result" with CONSULT-III.
3. Erase the DTC.
4. Perform DTC confirmation procedure. SEE DTC Logic.
Is the DTC displayed again?
YES - GO TO 2.
NO - Check intermittent incident. Intermittent Incident.
2.REPLACE DRIVER SEAT CONTROL UNIT
Replace driver seat control unit. Service and Repair.
- INSPECTION END
