B210A

B210A STEERING LOCK UNIT





DTC Logic

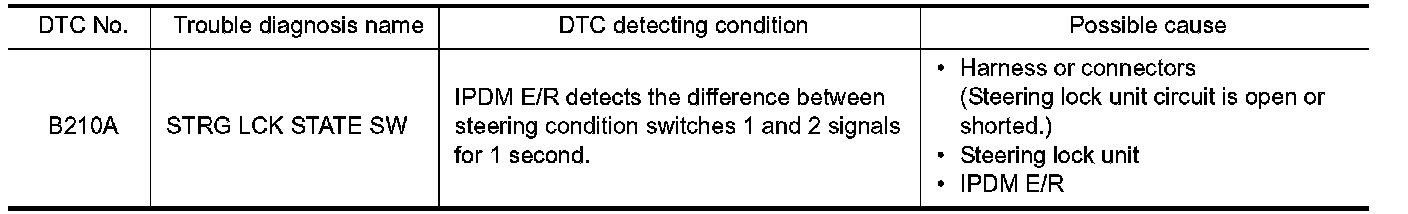

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE 1
1. Press push-button ignition switch under the following conditions and wait 1 second or more.
- Selector lever: In the P position
- Brake pedal: Not depressed
2. Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE 2
1. Turn ignition switch ON.
2. Turn ignition switch OFF.
3. Press driver side door switch and wait 1 second or more.
4. Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK IPDM E/R INPUT SIGNAL
1. Turn ignition switch OFF.

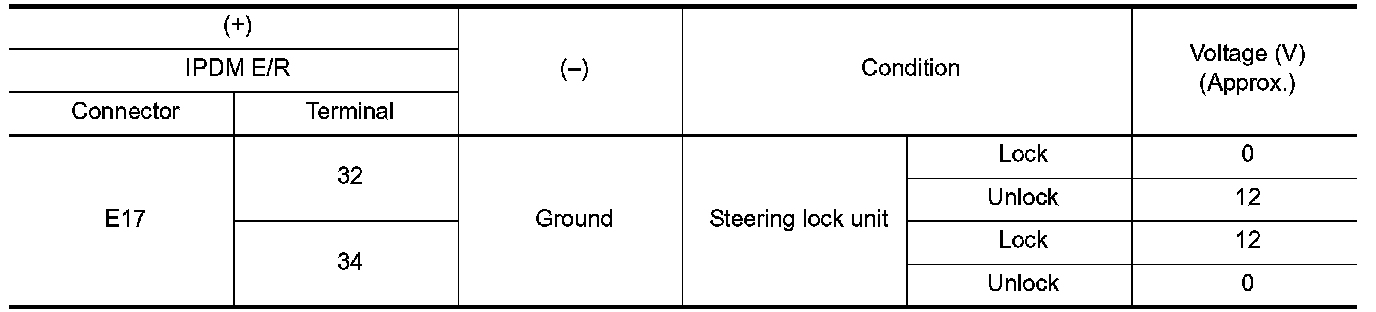

2. Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Removal And Installation.
NO - GO TO 2.
2.CHECK IPDM E/R INPUT SIGNAL CIRCUIT
1. Disconnect IPDM E/R connector and steering lock unit connector.

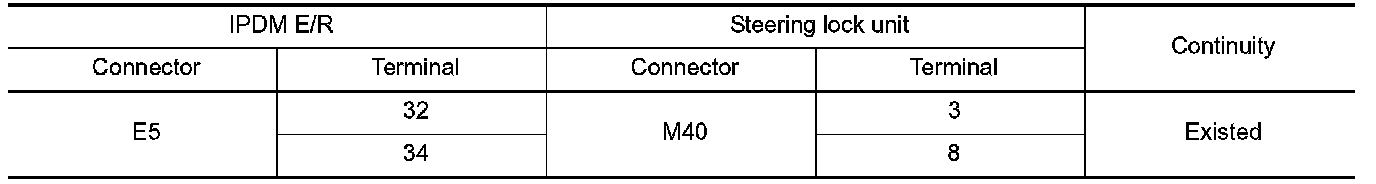

2. Check continuity between IPDM E/R harness connector and steering lock unit harness connector.

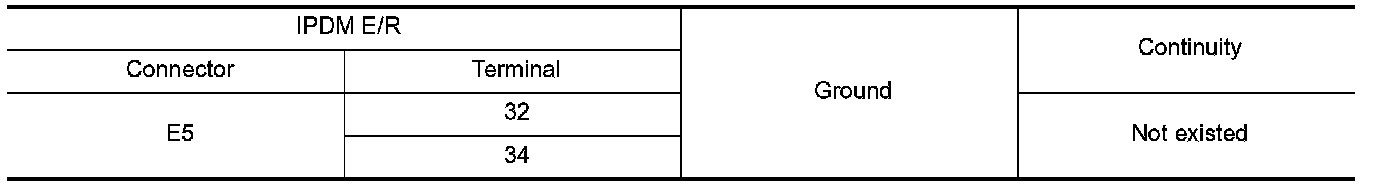

3. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.REPLACE STEERING LOCK UNIT
1. Replace steering lock unit.
2. Perform the service procedure for steering lock unit replacement. Refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.
- INSPECTION END
