Power Window Sub-Switch

POWER WINDOW SERIAL LINK - POWER WINDOW SUB-SWITCH





Component Function Check
1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
With CONSULT-III

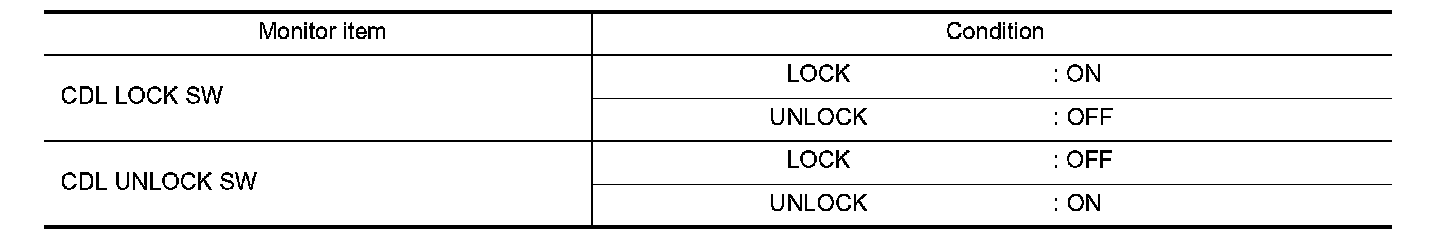

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT-III. Common Item, "COMMON ITEM : CONSULT-III Function (BCM - COMMON
ITEM)" .





Is the inspection result normal?
YES - Power window serial link is OK.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.

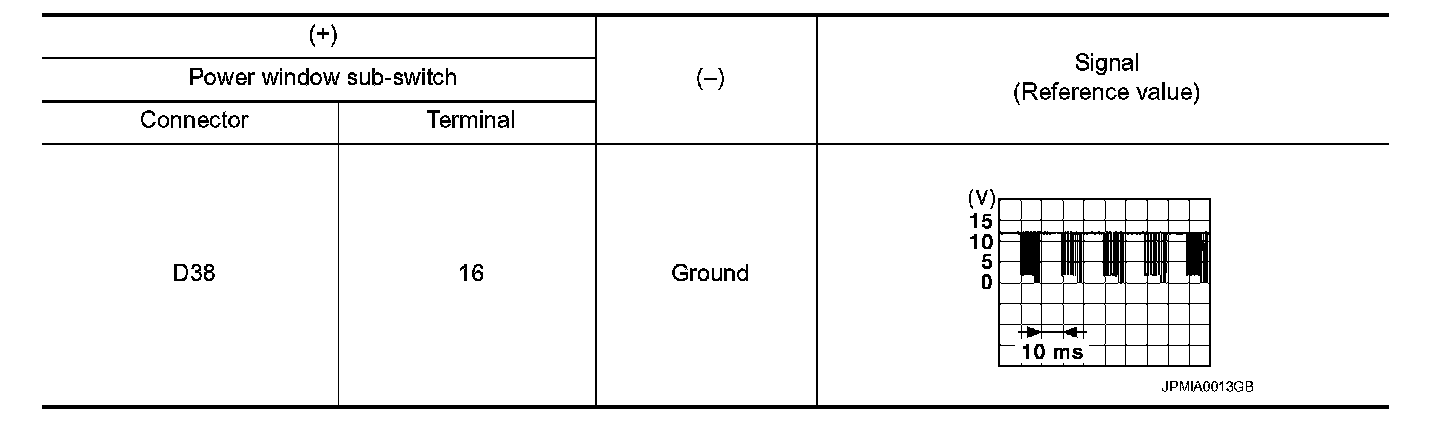

2. Check signal between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window sub-switch. Service and Repair.
NO - GO TO 2.
2.CHECK POWER WINDOW SERIAL LINK SIGNAL
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch connector.
3. Turn ignition switch ON.

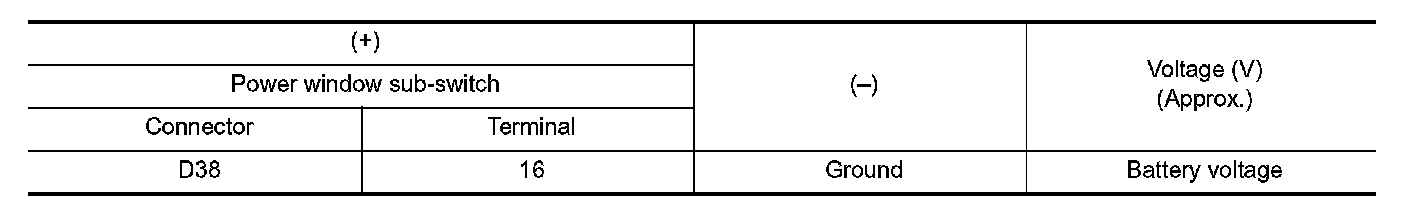

4. Check voltage between power window sub-switch harness connector and ground.





Is the inspection result normal?
YES - Replace power window main switch. Service and Repair.
NO - GO TO 3.
3.CHECK POWER WINDOW SERIAL LINK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and power window sub-switch connector.

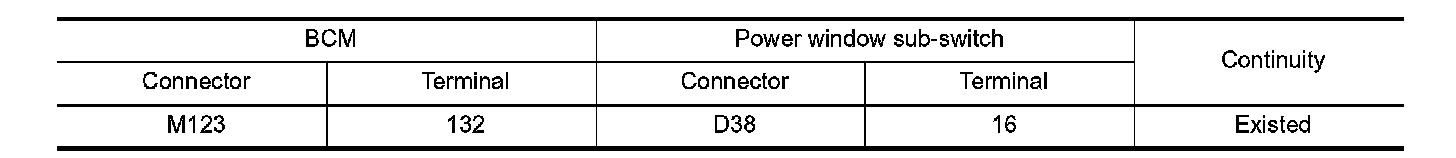

3. Check continuity between BCM connector and power window sub-switch connector.

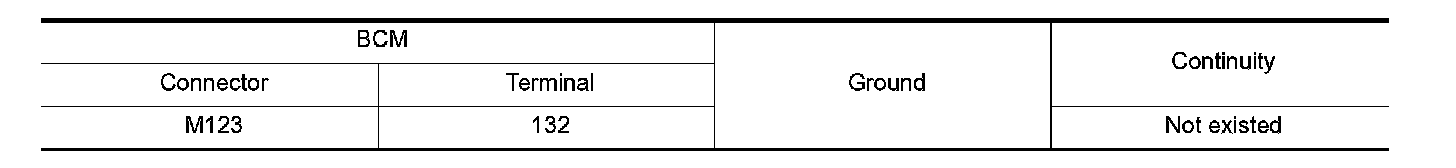

4. Check continuity between BCM connector and ground.





Is the inspection result normal?
YES - Replace BCM. Exploded View.
NO - Repair or replace harness.
