Inspection

MAIN SHAFT


Inspection

Check items below. If necessary, replace them with new ones.

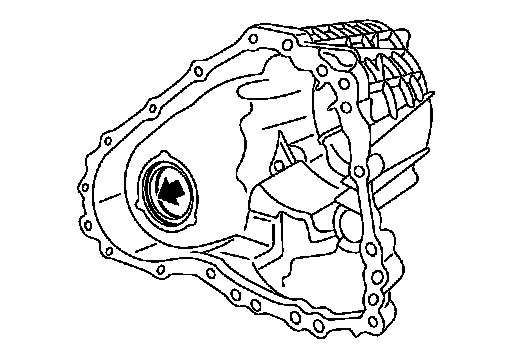

CASES





- Contact surfaces of bearing for wear, damage, etc.
- Damage and cracks of case.

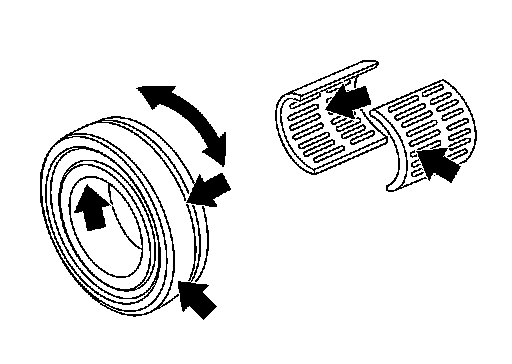

BEARING





Damage and rough rotation of bearing.

SHAFT





Damage, peeling, dent, uneven wear, bending, etc. of shaft.

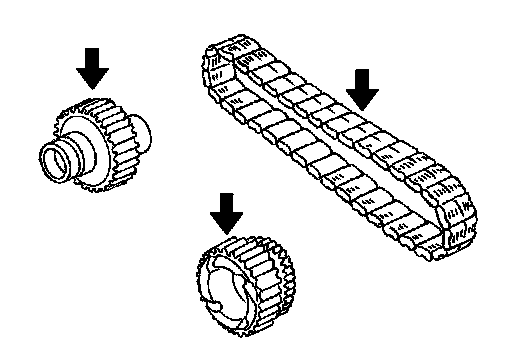

GEARS AND CHAIN





Excessive wear, damage, peeling, etc. of gear and chain.
