Transmission Assembly - Exploded View





TRANSMISSION ASSEMBLY

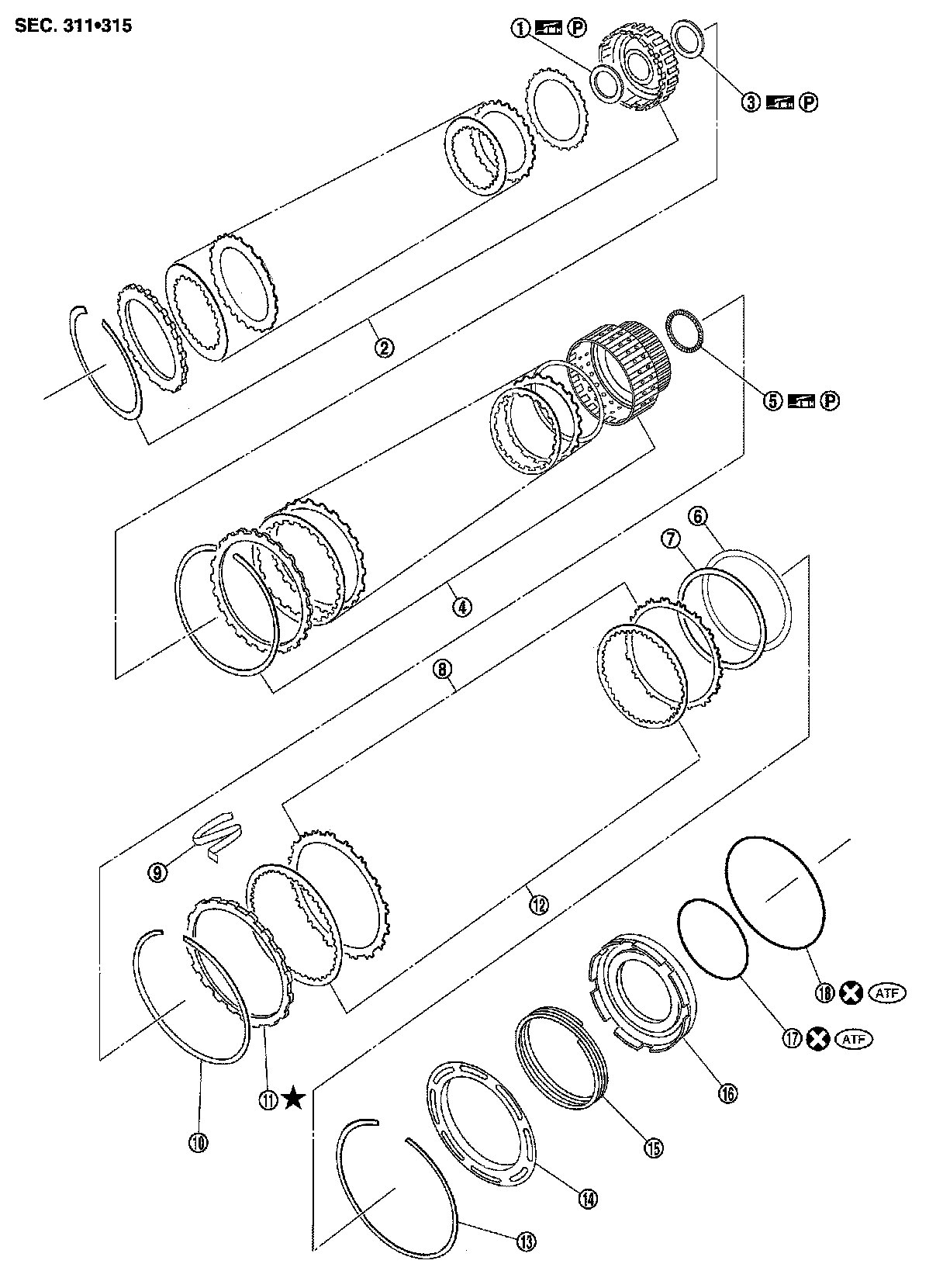

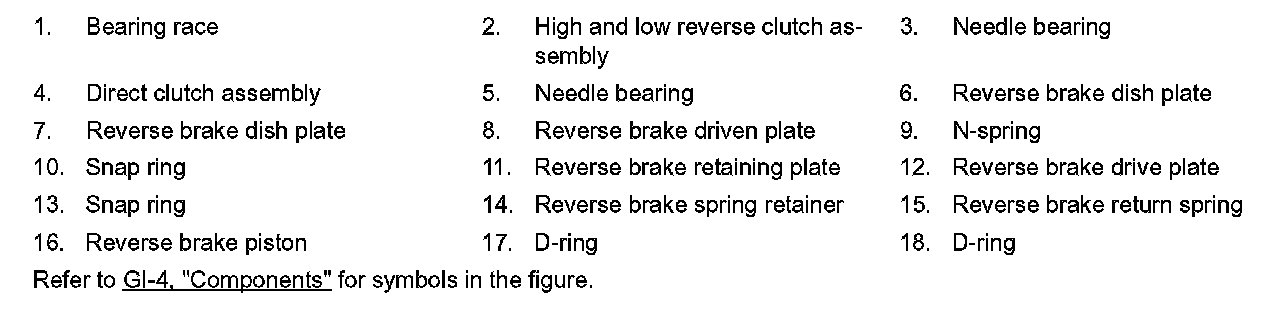

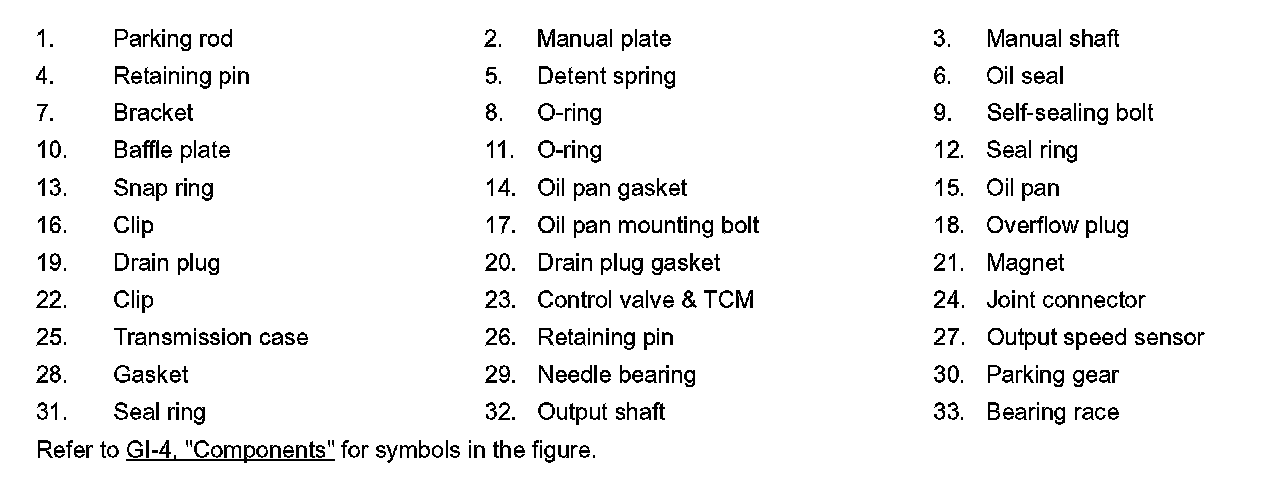

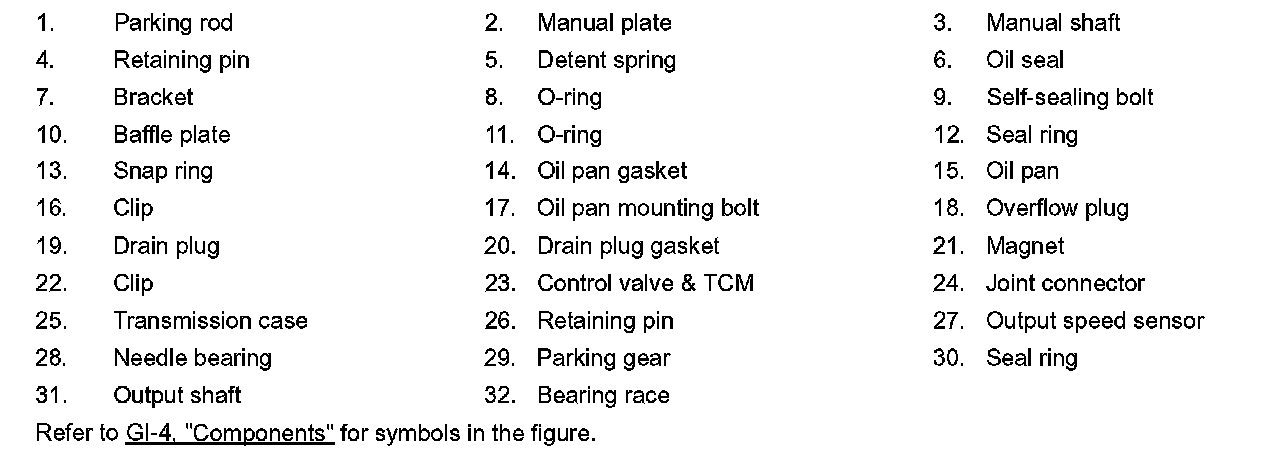

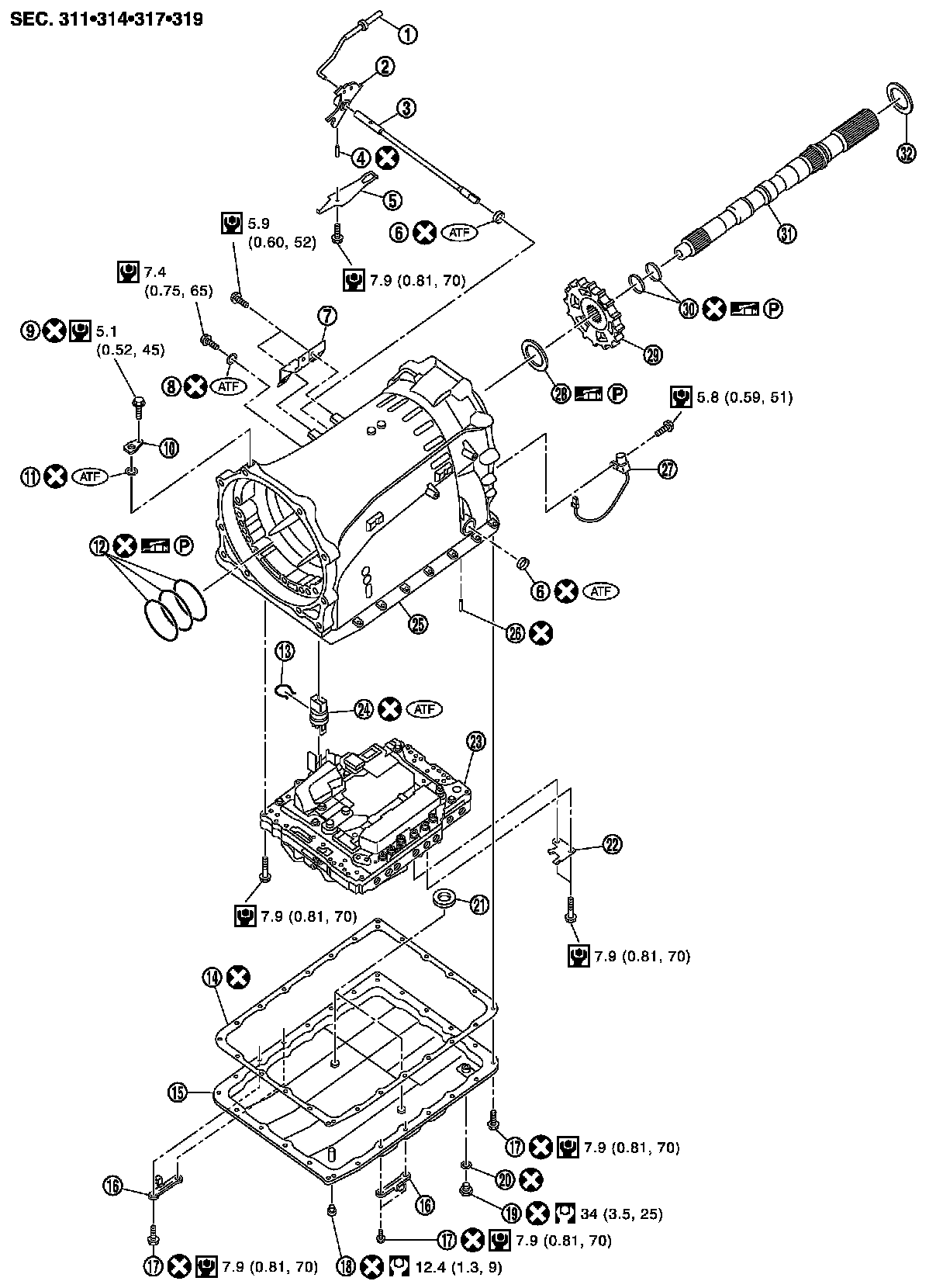

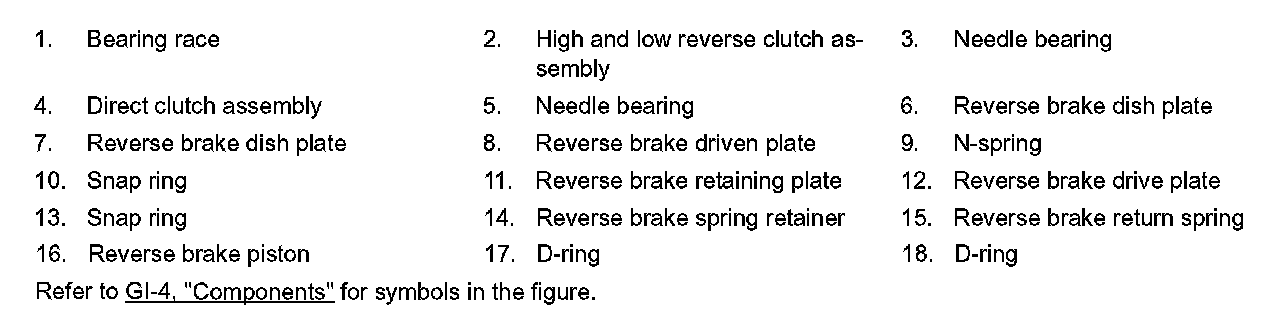

Exploded View

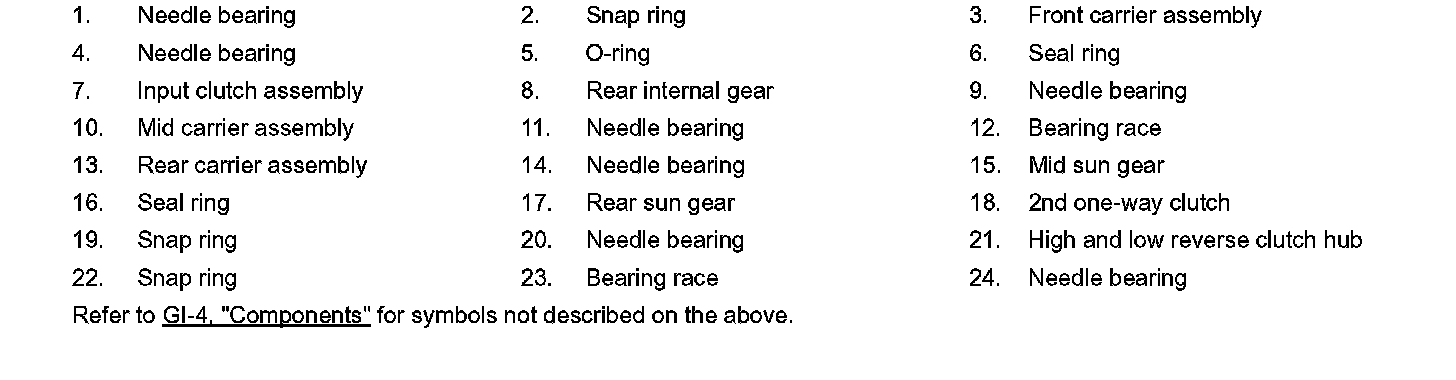

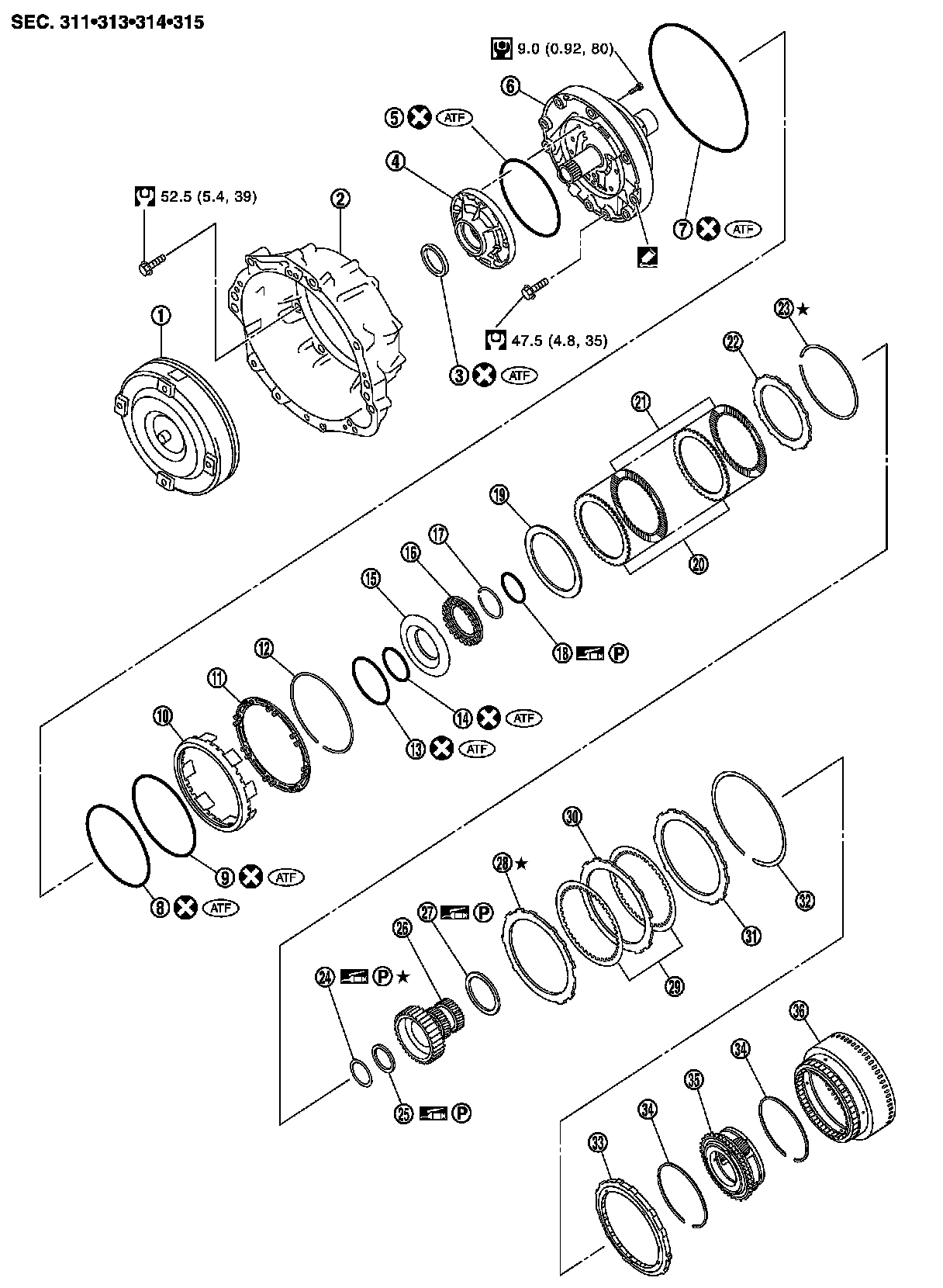

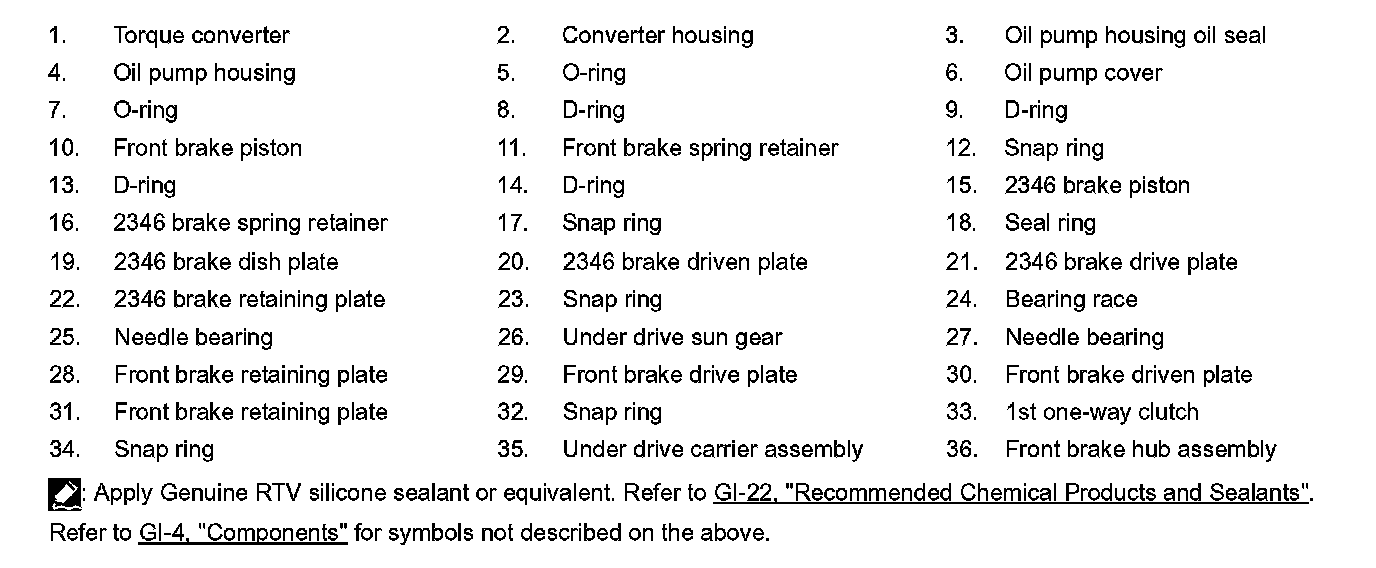

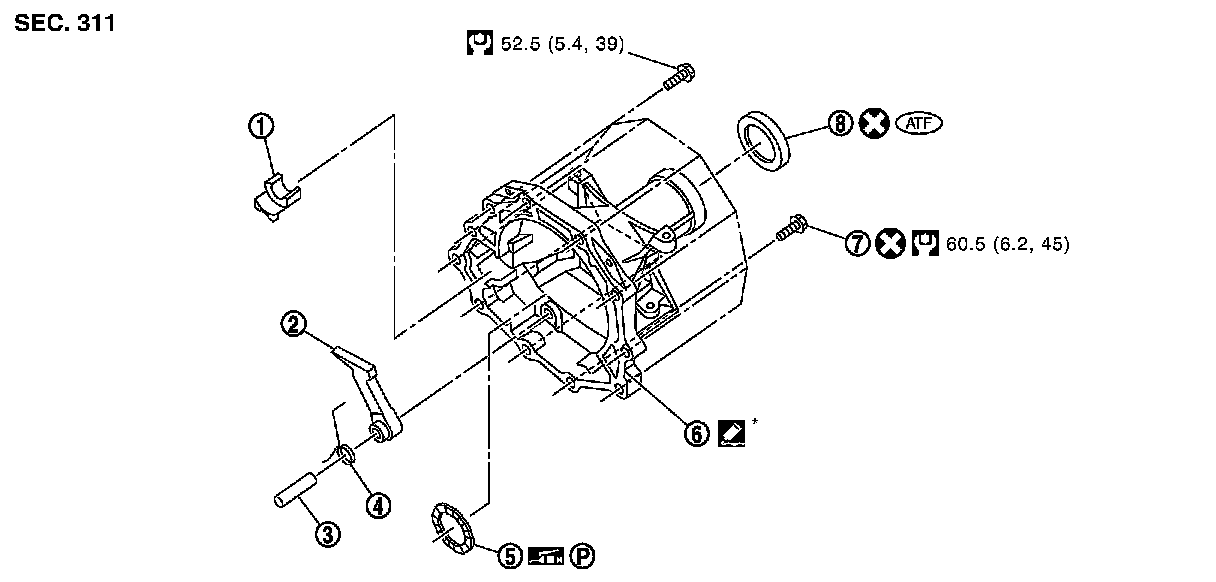

2WD MODELS

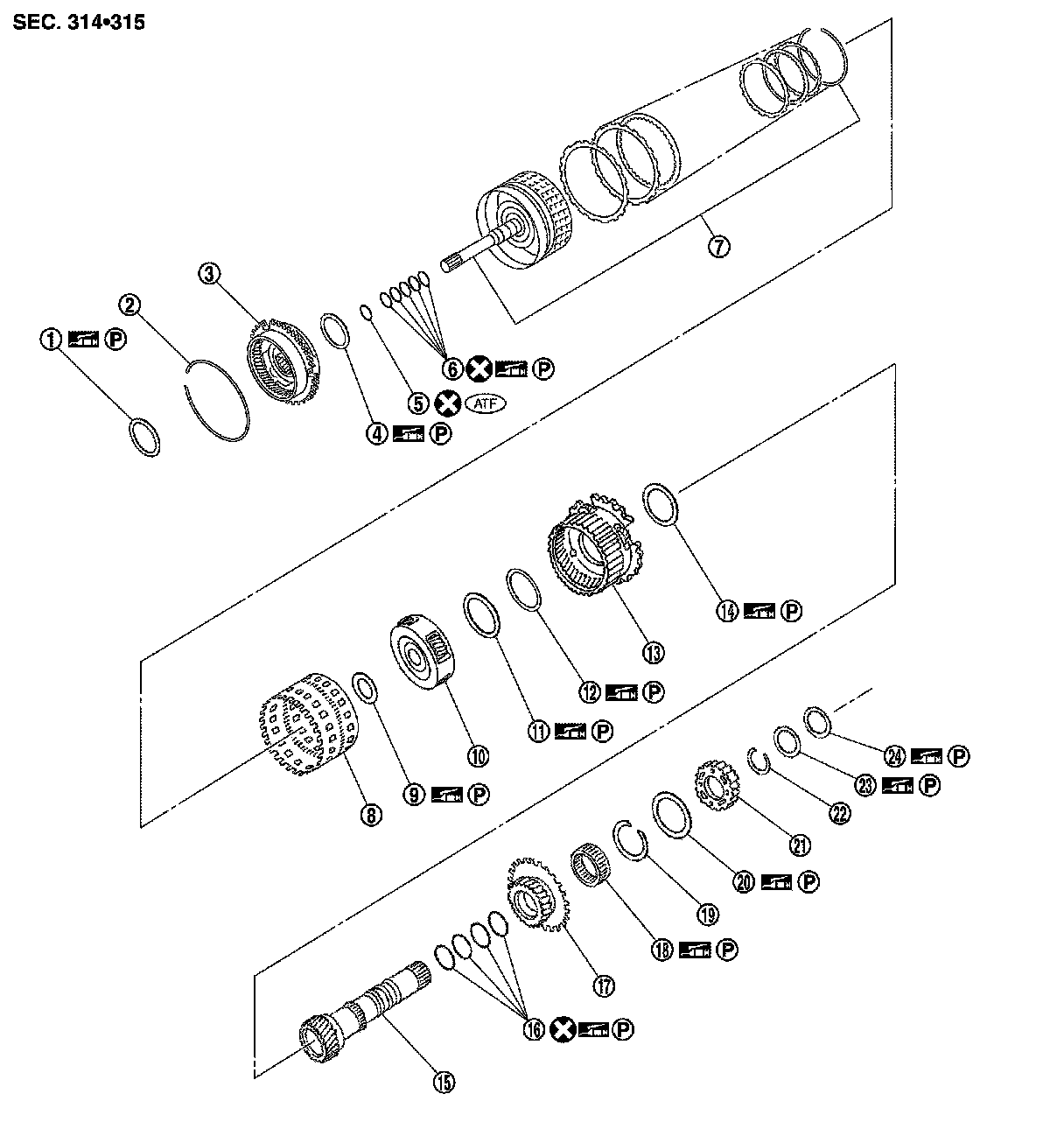

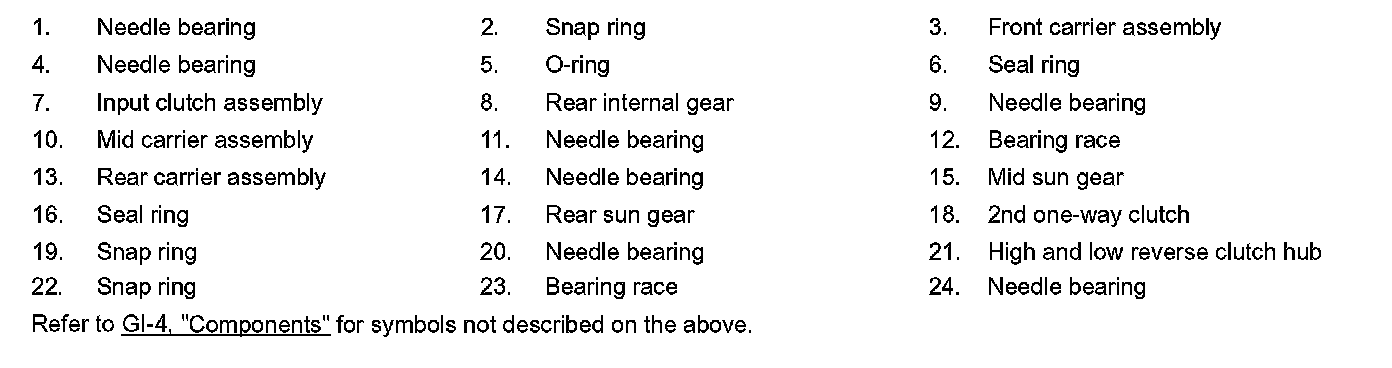

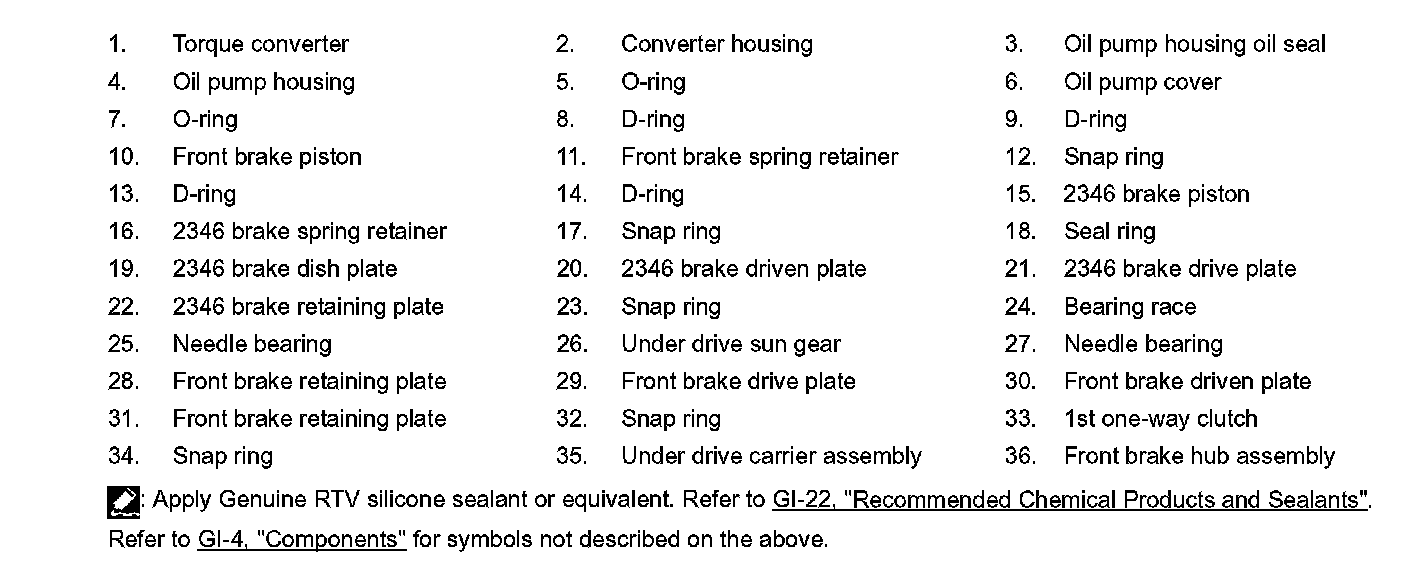

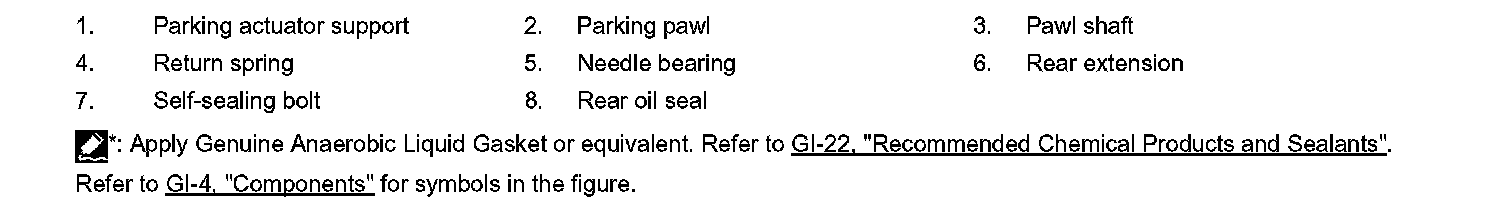

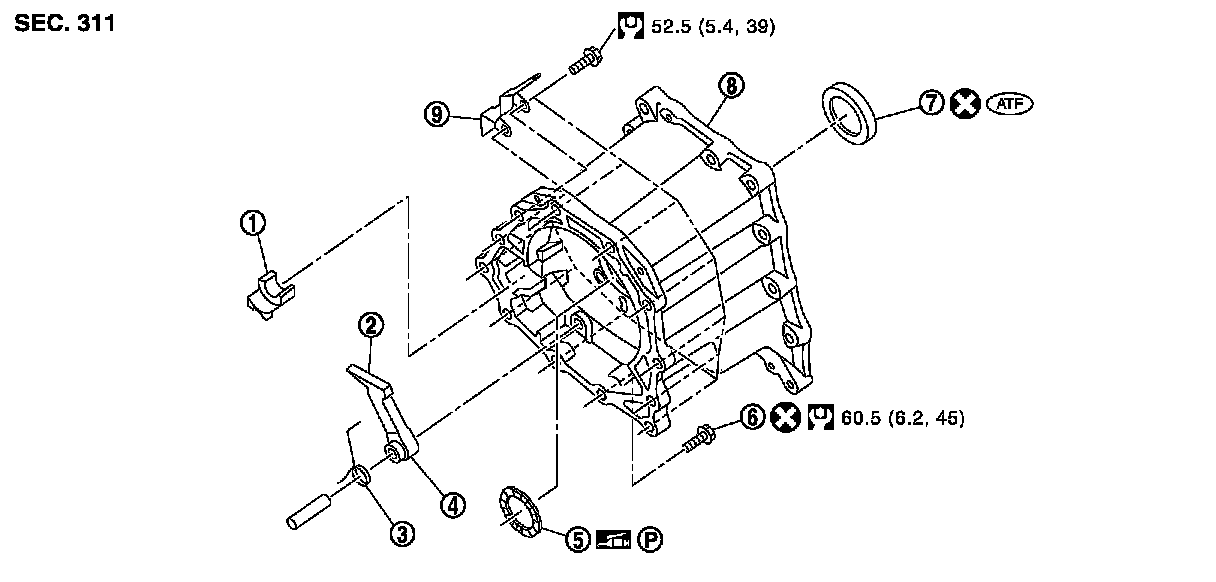

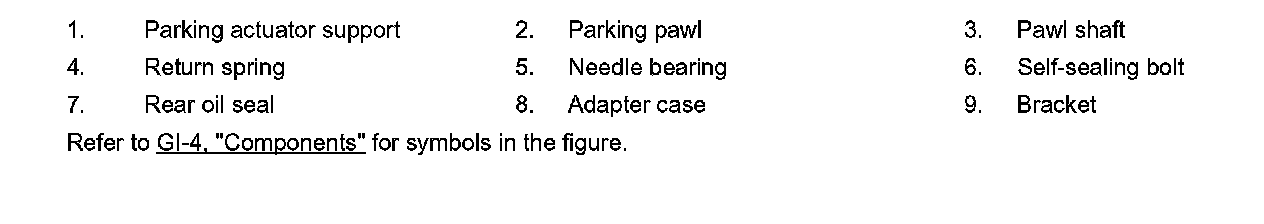

AWD MODELS
