Disassembly

HIGH AND LOW REVERSE CLUTCH


Disassembly






1. Remove bearing race from high and low reverse clutch drum.

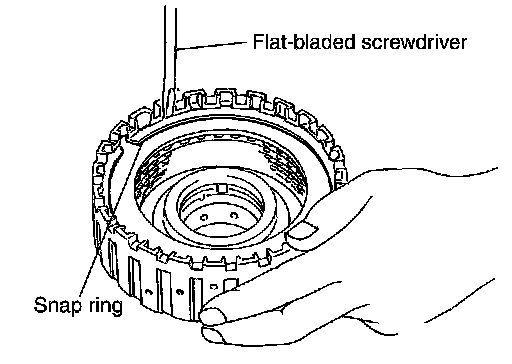

2. Remove snap ring from high and low reverse clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch high and low reverse clutch drum.
- Be careful not to damage snap ring.
3. Remove high and low reverse clutch component part (drive plates, driven plates, retaining plate and dish plate) from high and low reverse clutch drum.
