Consult-III Function 4WAS(Main)

DIAGNOSIS SYSTEM (4WAS MAIN CONTROL UNIT)


CONSULT-III Function [4WAS(MAIN)/RAS/HICAS]


FUNCTION

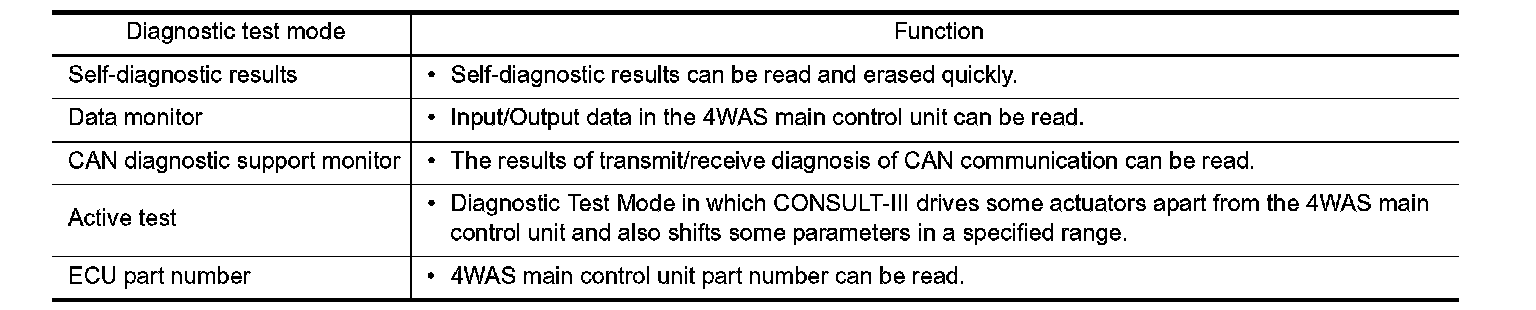

CONSULT-III can display each diagnostic item using the diagnostic test modes shown below.






SELF-DIAG RESULT MODE

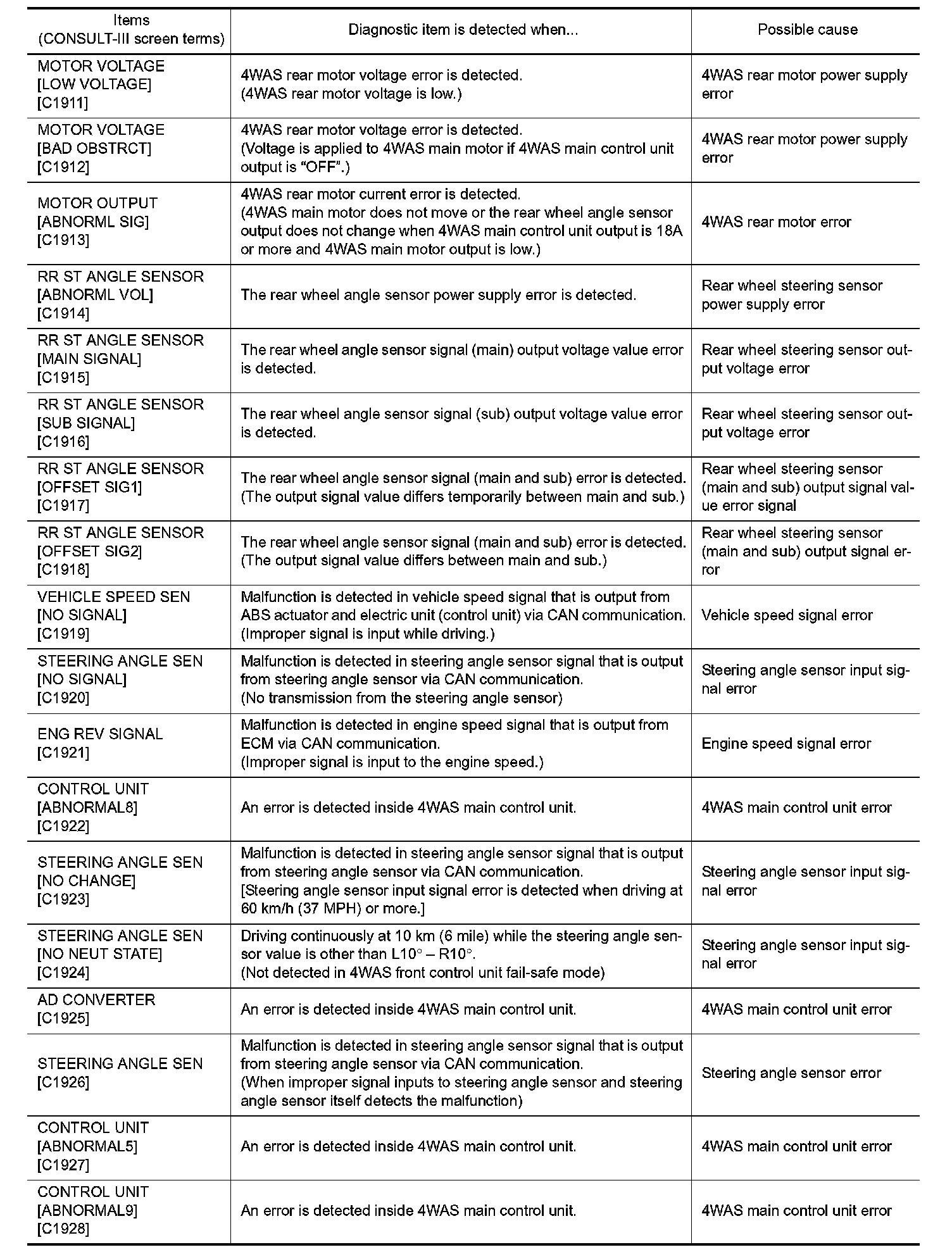

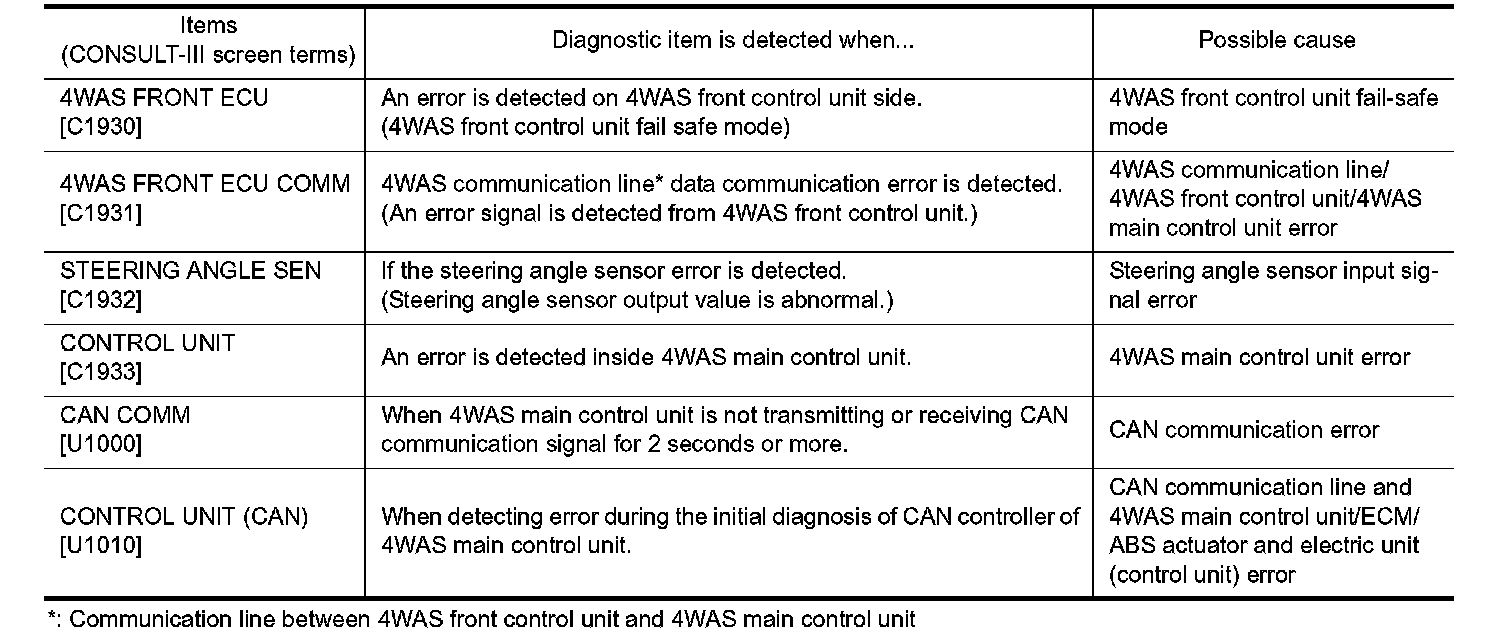

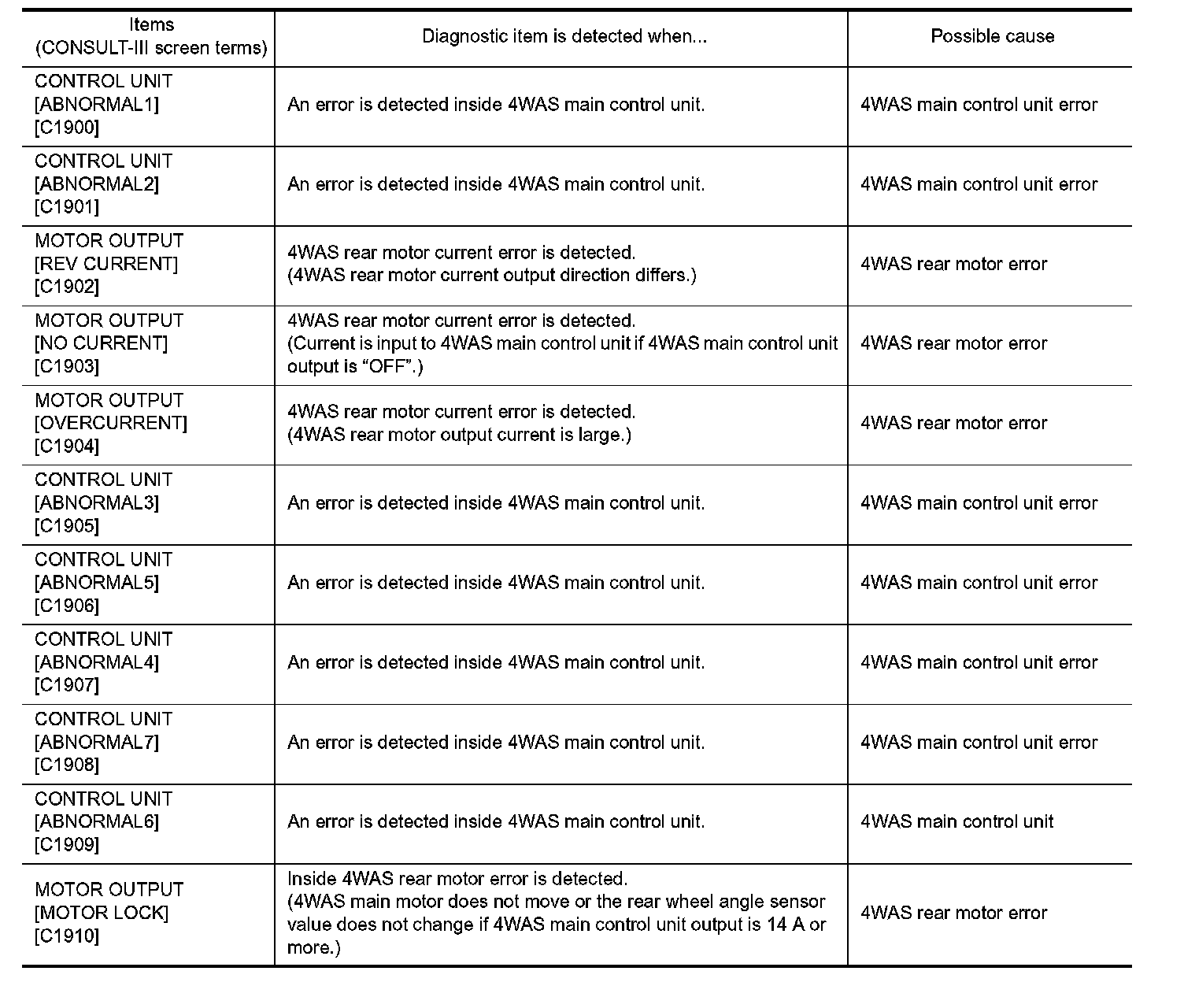

Display Item List
















DATA MONITOR MODE

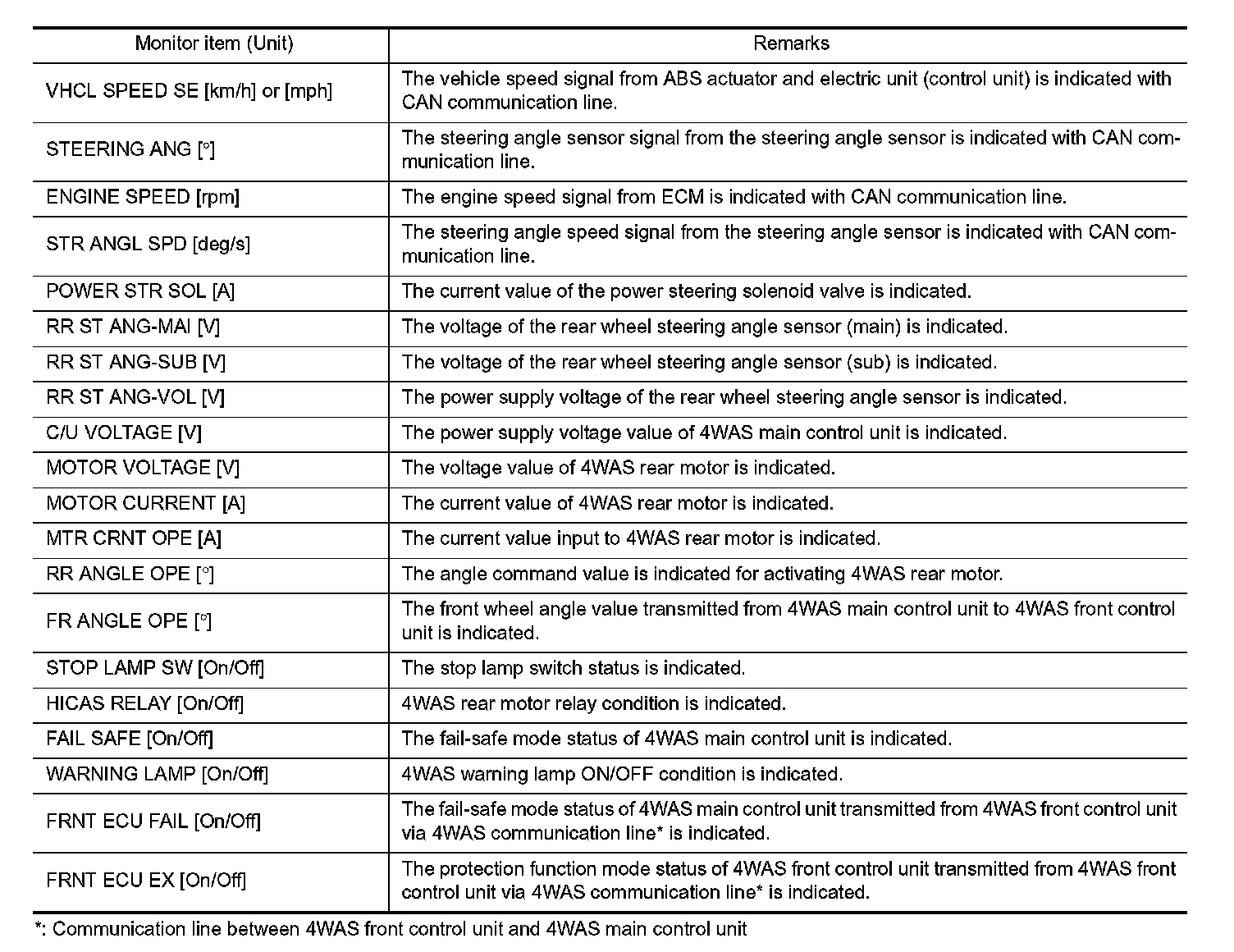

Display Item List

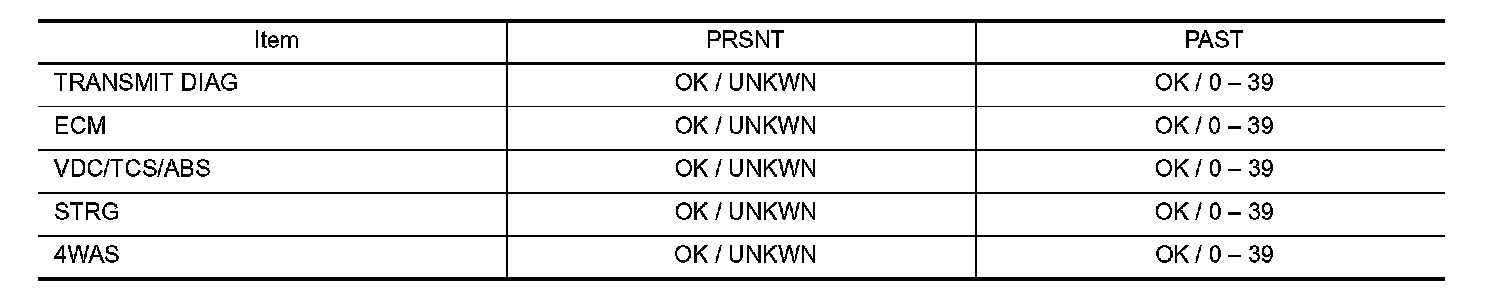

CAN DIAGNOSTIC SUPPORT MONITOR

Description
- The communication status and the number of errors of 4WAS main control unit, ECM, ABS actuator and electric unit (control unit), 4WAS front control unit and the steering angle sensor are indicated.
- Error counter displays OK if any malfunction is not detected in the past. If the malfunction is detected, it displays 0. The upper limit of the counters is 39.

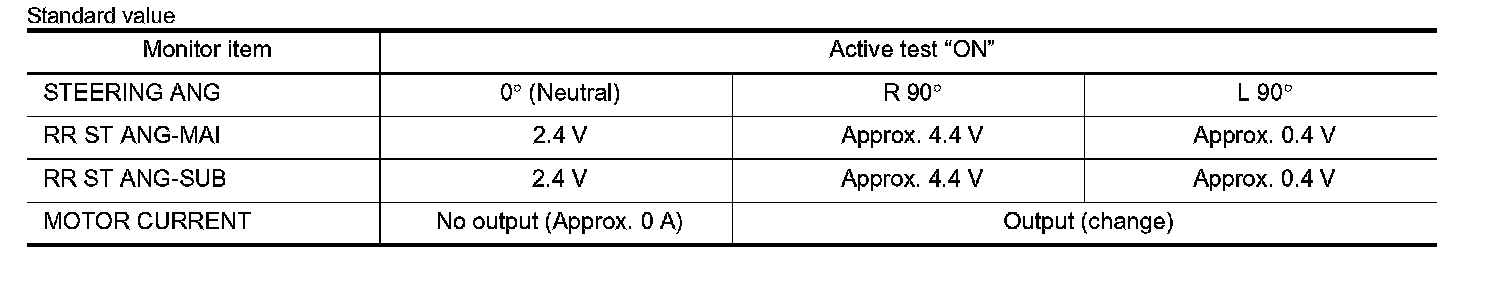

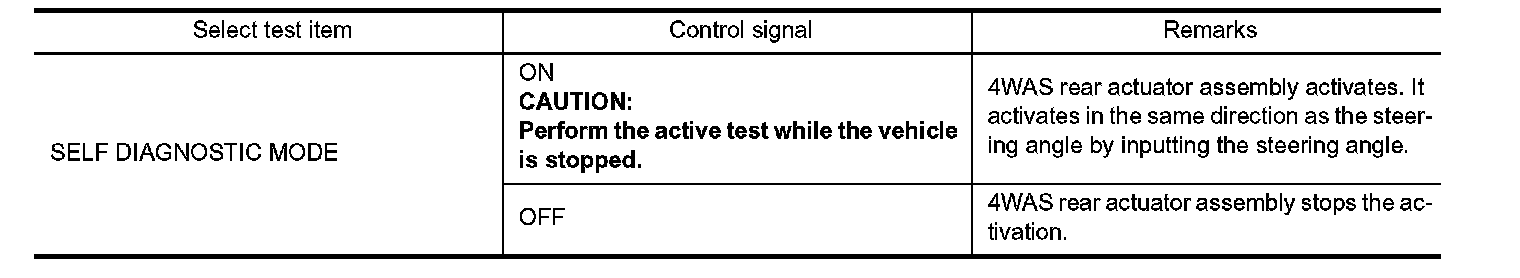

ACTIVE TEST MODE

Description
- 4WAS rear actuator assembly activation is checked according to the control signal from CONSULT-III.
- The control signal forcibly activates (ON/OFF) 4WAS rear assembly, performs the self-diagnosis and checks each sensor in "SELF DIAGNOSTIC MODE".

CAUTION:
Perform the active test while the vehicle is stopped.
