Consult-III Function 4WAS(Front)

DIAGNOSIS SYSTEM (4WAS FRONT CONTROL UNIT)


CONSULT-III Function [4WAS(FRONT)]


FUNCTION

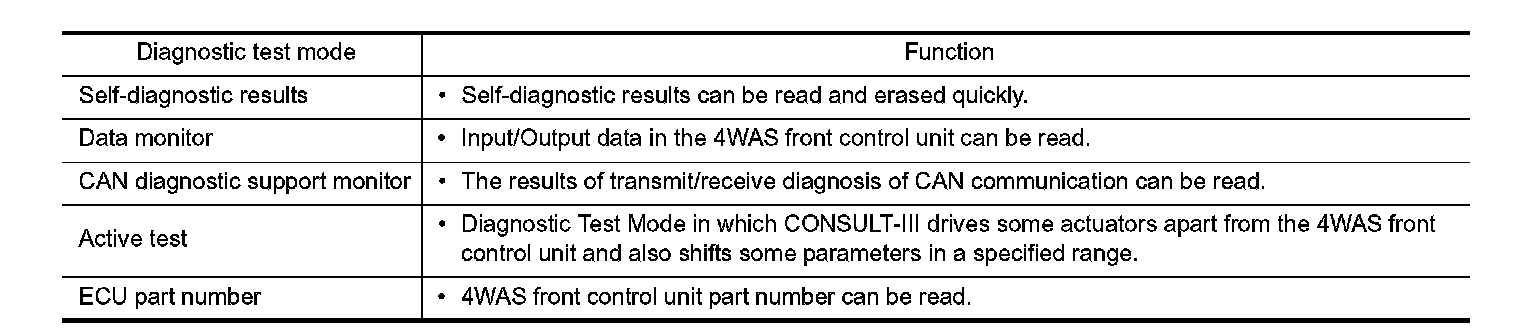

CONSULT-III can display each diagnostic item using the diagnostic test modes shown as follows:

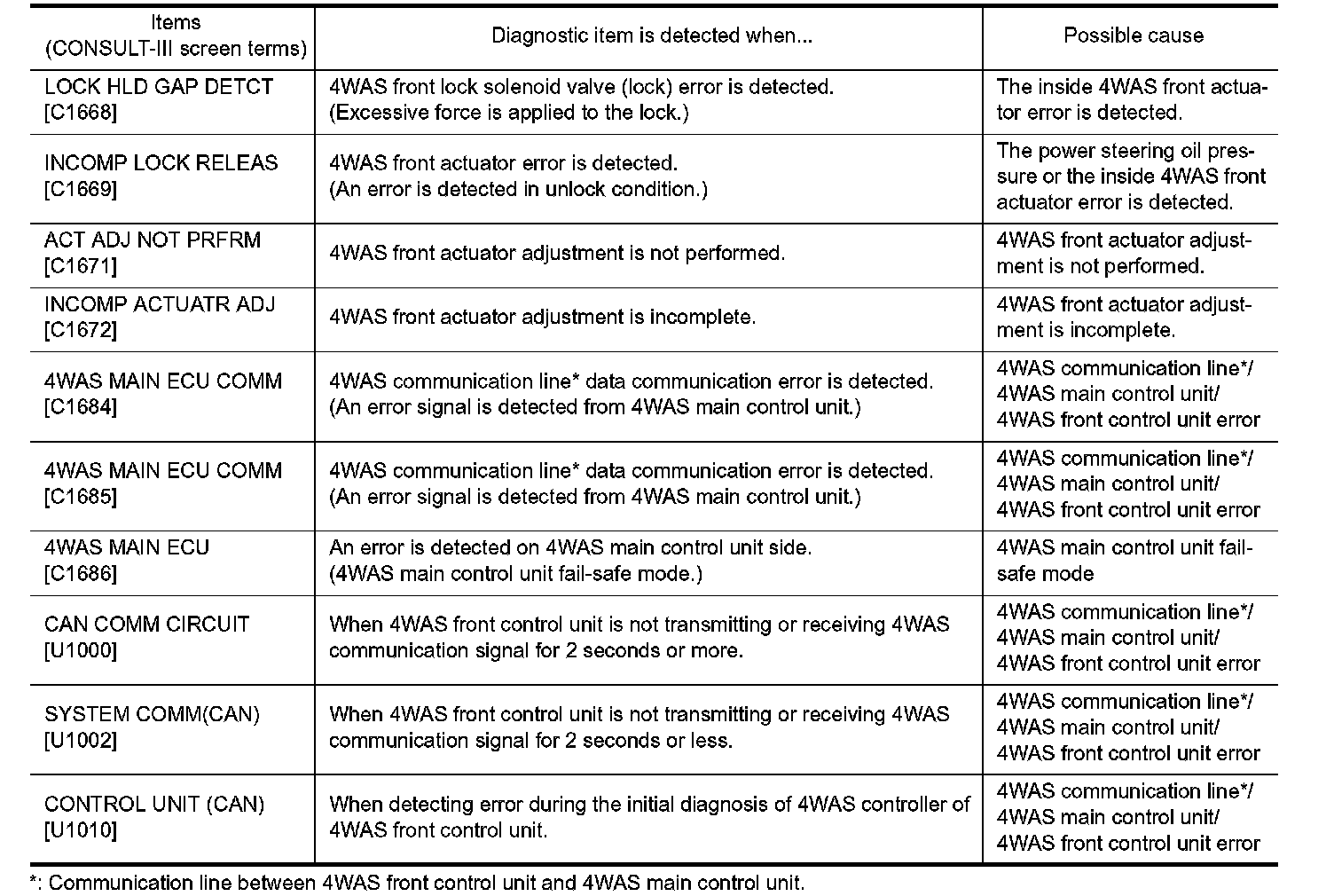

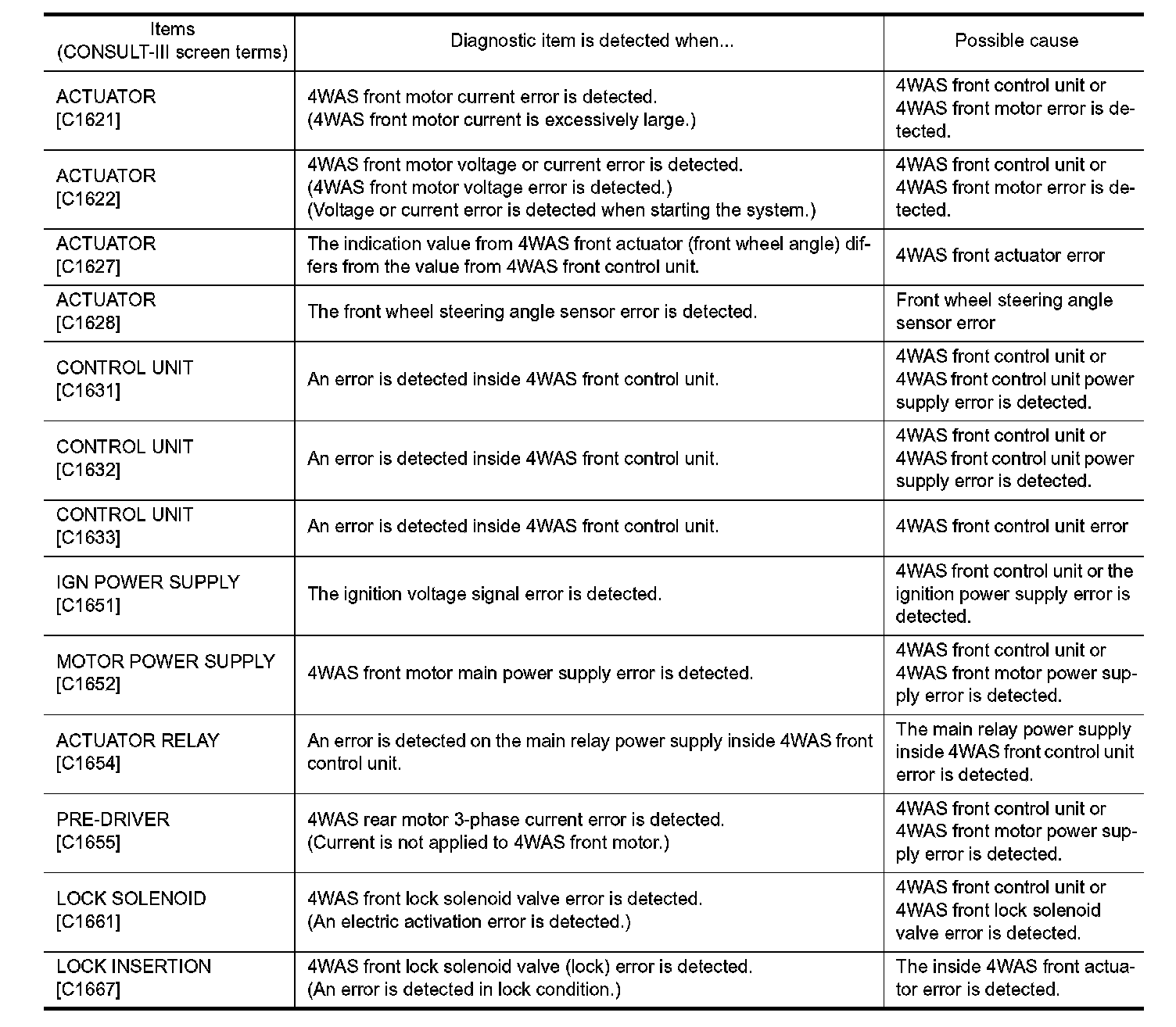

SELF-DIAG RESULT MODE

Display Item List

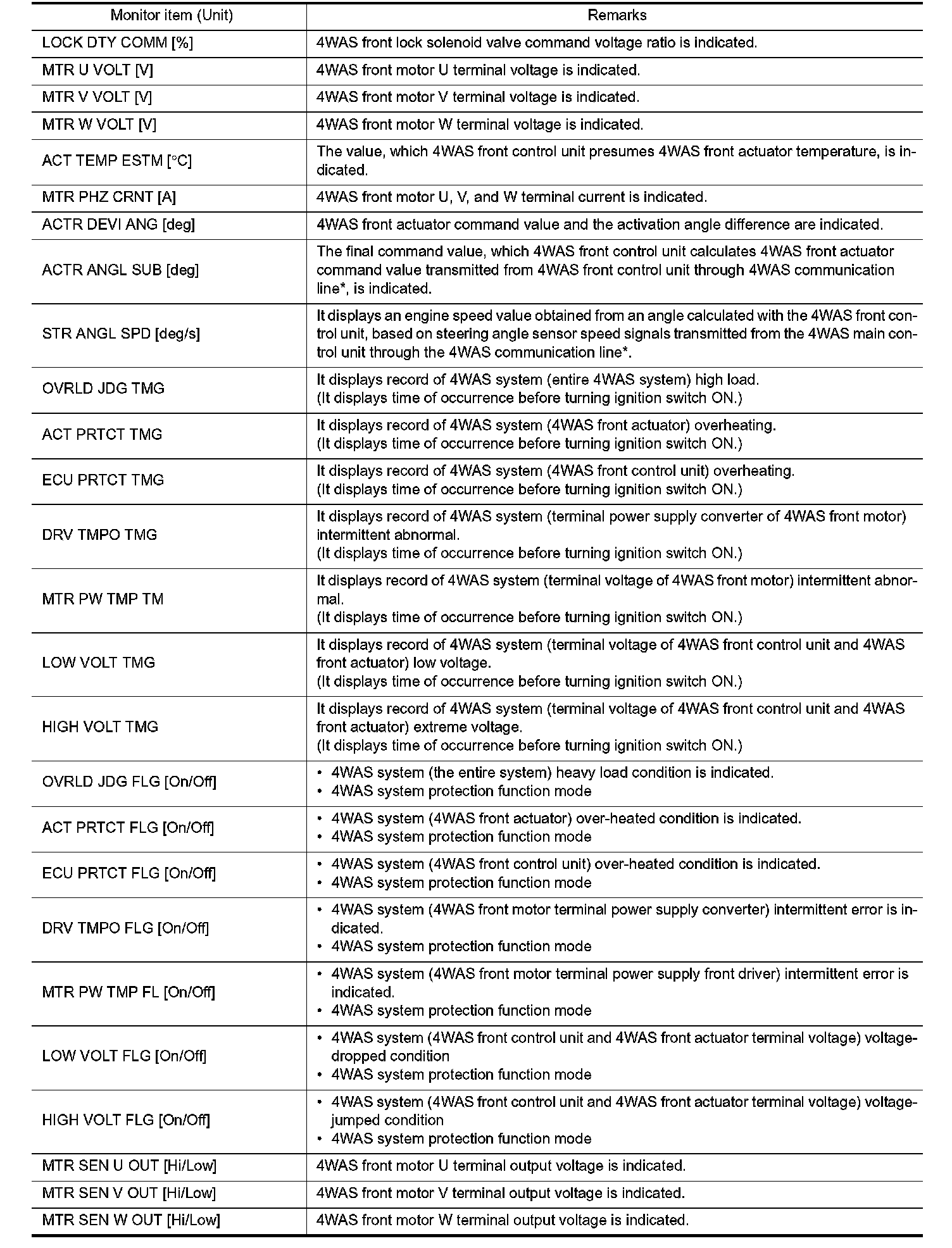

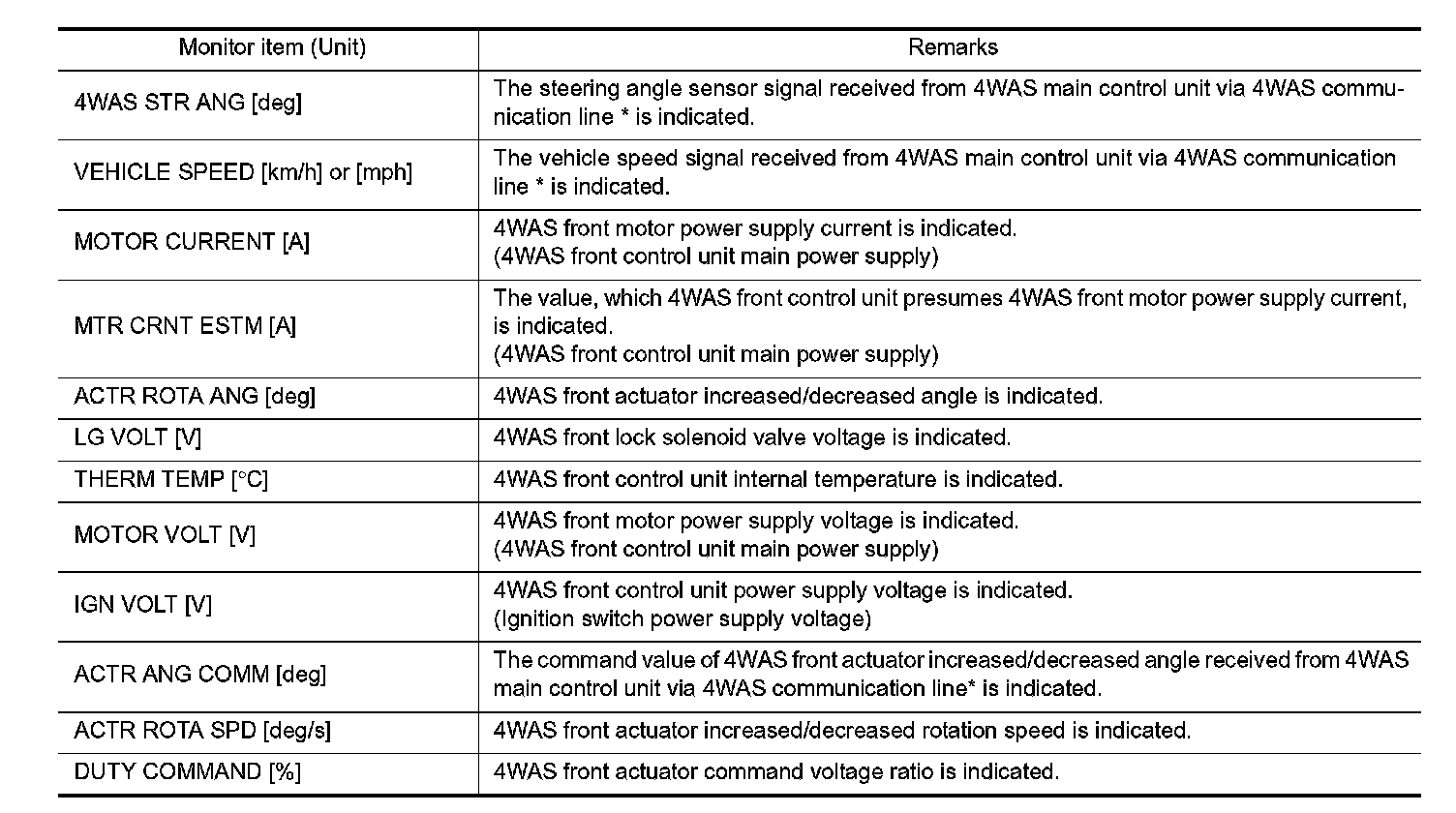

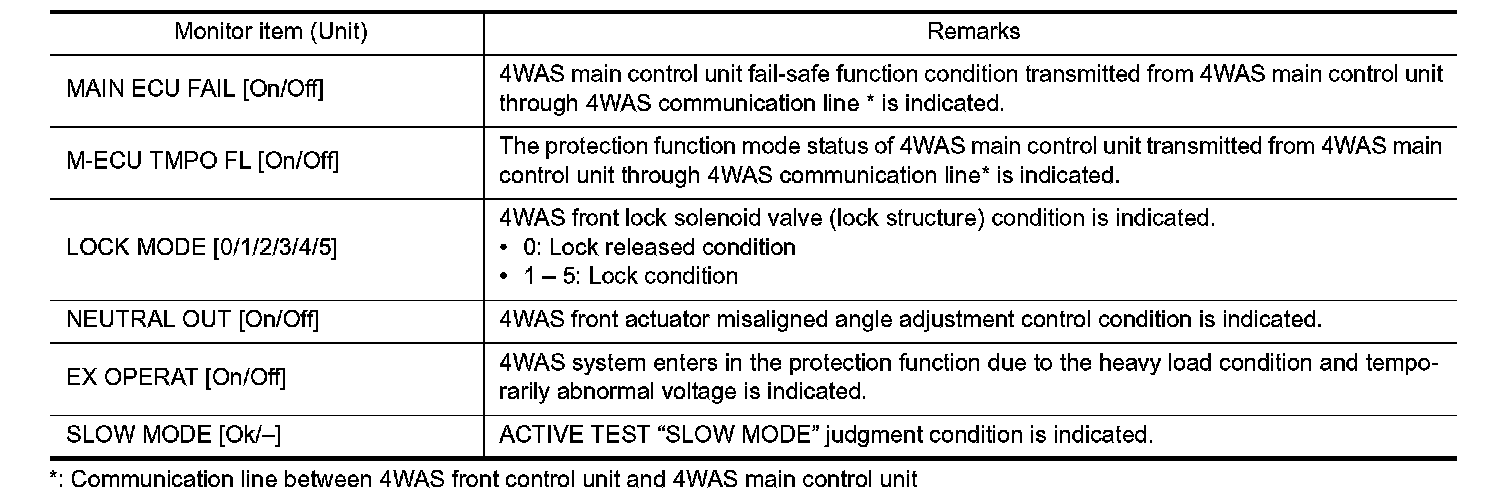

DATA MONITOR MODE

Display Item List

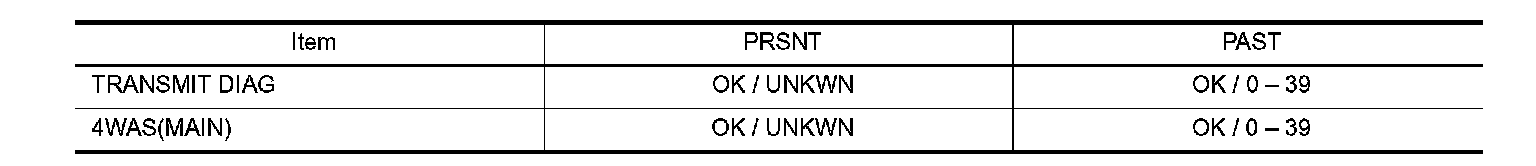

CAN DIAGNOSTIC SUPPORT MONITOR

Description
- The communication condition from 4WAS front control unit to 4WAS main control unit and malfunction counter are displayed.
- Error counter displays OK if any malfunction is not detected in the past. If the malfunction is detected, it displays 0. The upper limit of the counters is 39.

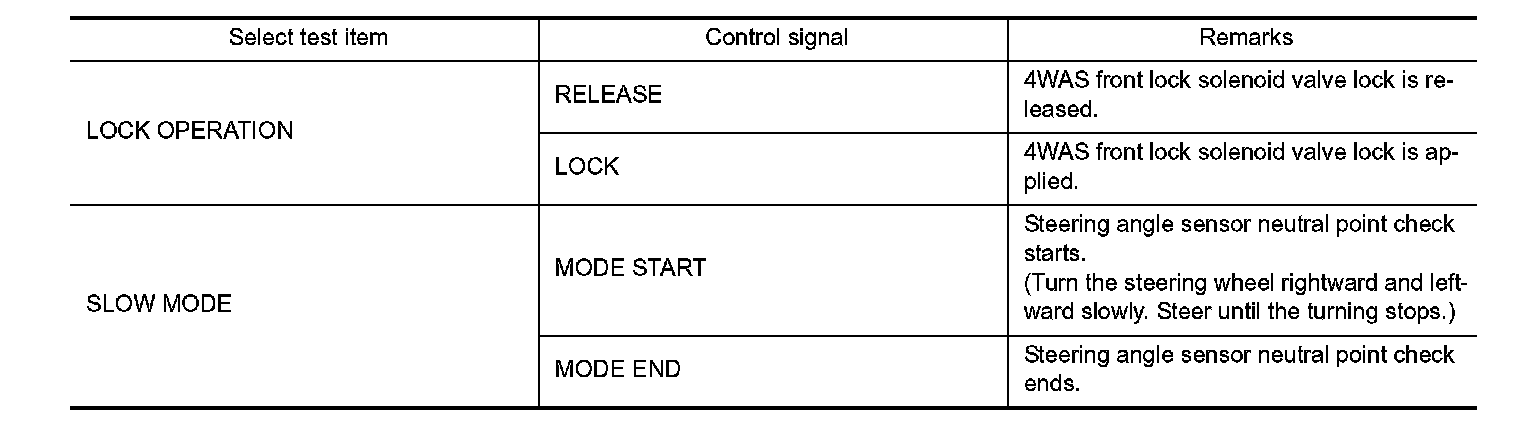

ACTIVE TEST MODE

Description
- 4WAS front actuator assembly activation is checked according to the control signal from CONSULT-III.
- 4WAS front lock solenoid valve (lock structure) is activated forcibly (ON/OFF) using each control signal of "LOCK OPERATION". Perform this mode when performing 4WAS front actuator adjustment.

CAUTION:
Never steer the steering wheel during "RELEASE".
- The steering angle sensor neutral point judgment (OK/NG) is performed using each control signal of "SLOW
MODE".
