Inspection With 4WAS

LOWER SHAFT


WITH 4WAS : Inspection






- Check the sliding range of the lower shaft (with 4WAS front actuator).

CAUTION:

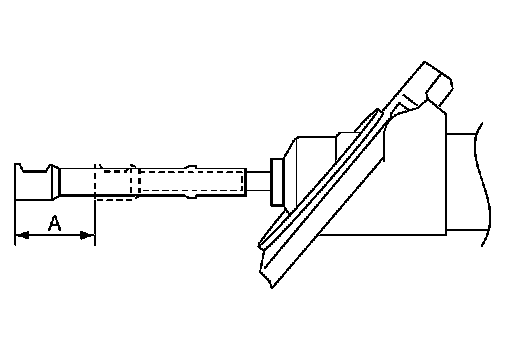

Check the sliding range (A) (between the extended position and the contracted position) of the lower shaft (with 4WAS front actuator).

Standard
Sliding range : Refer to "Lower Shaft Sliding Range". Lower Shaft Sliding Range

- Check each part of lower shaft (4WAS front actuator) for damage or other malfunctions. Replace if there are.
