System Description With Left And Right Ventilation Temperature Separately Control System

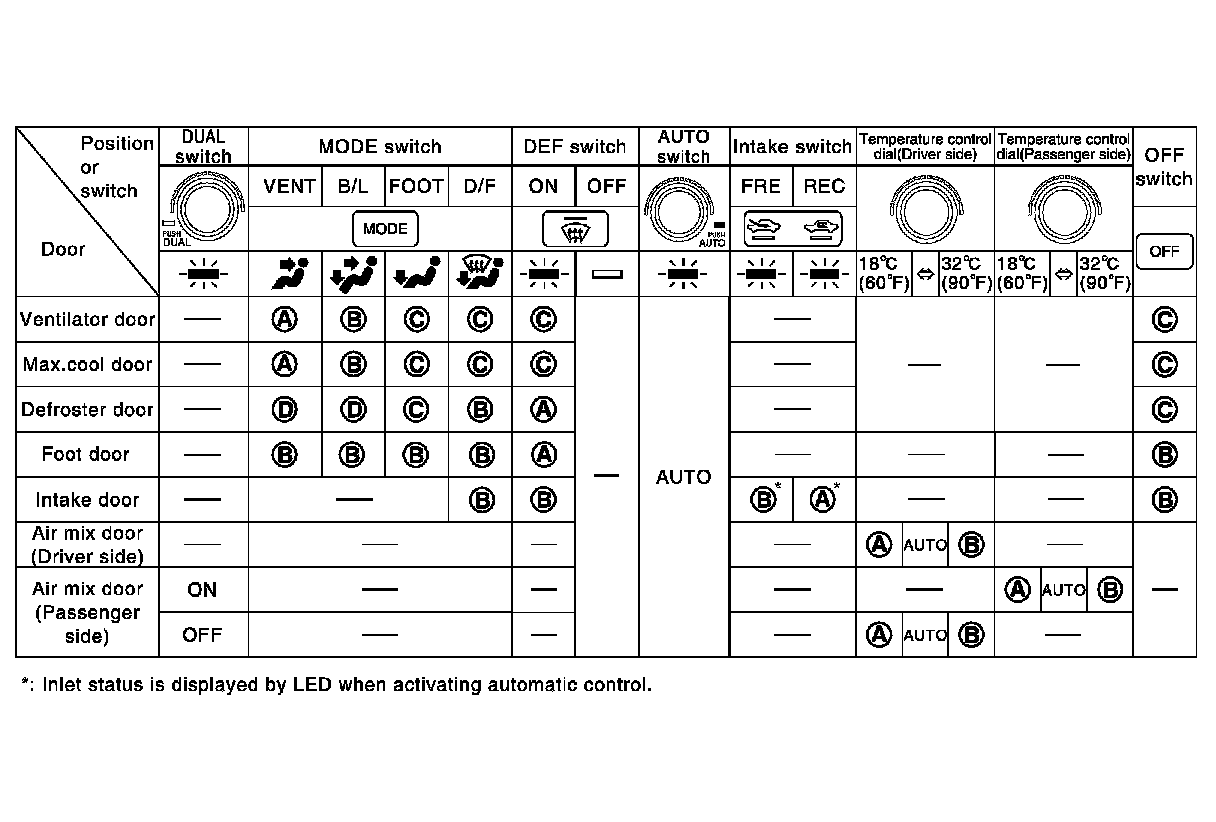

SWITCHES AND THEIR CONTROL FUNCTION

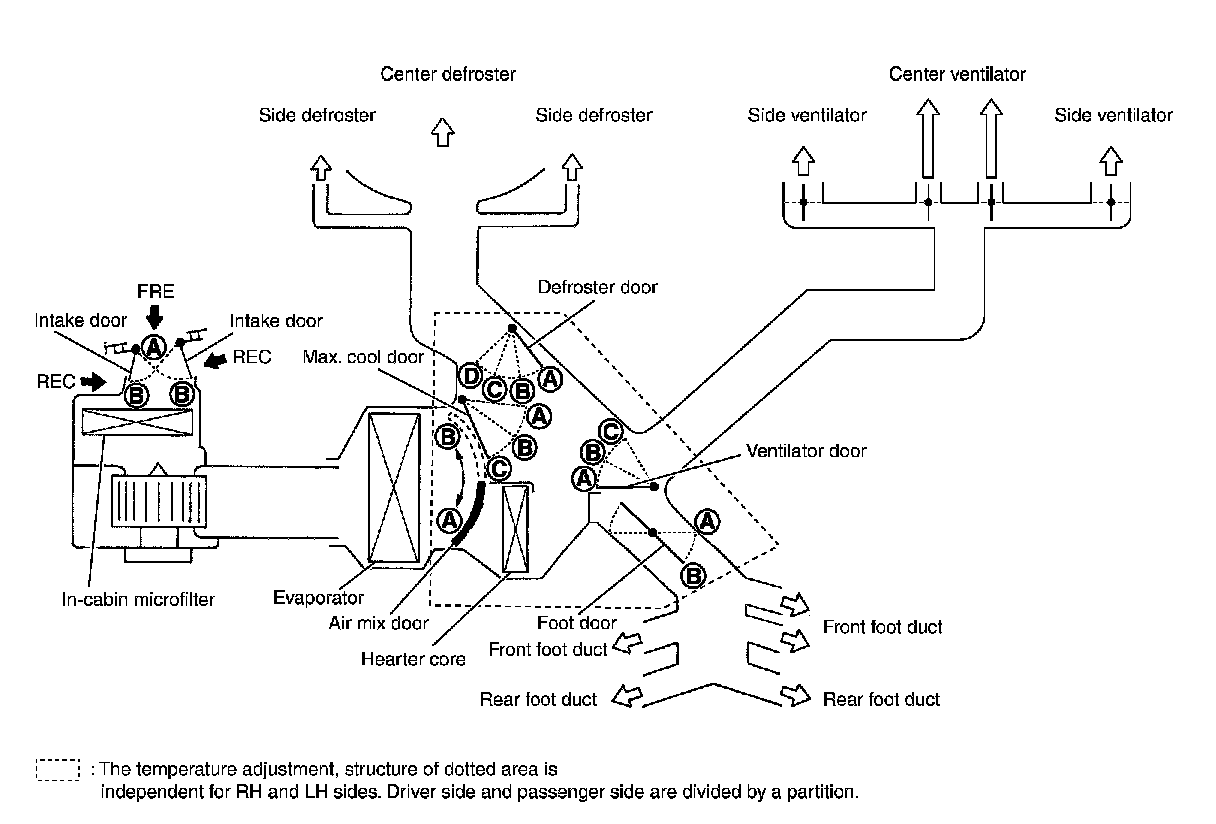

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Description
