Removal And Installation Without 4WAS

POWER STEERING CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove glove box assembly. (A/T models), Exploded View M/T Models, "M/T
MODELS : Exploded View"(M/T models).





2. Remove power steering control unit screws.

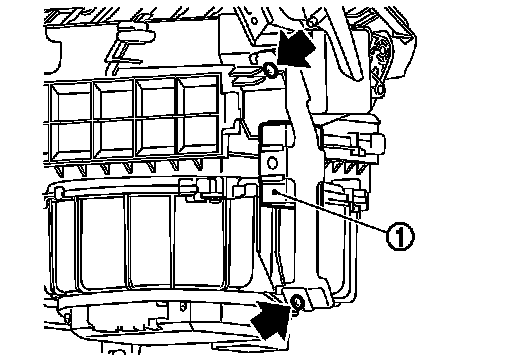

3. Remove power steering control unit (1).
4. Disconnect power steering control unit connector.

INSTALLATION
Install in the reverse order of removal.
