Removal And Installation

4WAS MAIN CONTROL UNIT


Removal and Installation

1. Turn the ignition switch OFF.
2. Remove the rear wheel house finisher. Exploded View.
3. Disconnect 4WAS main control unit connectors, 4WAS rear motor relay connector and noise suppressor connectors.

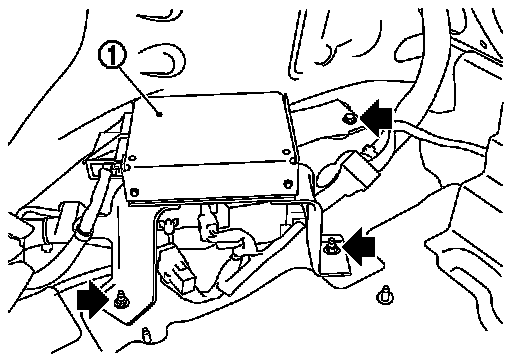

4. Remove the 4WAS main control unit bolt and nuts.
5. Remove the 4WAS main control unit (1).

INSTALLATION
Install in the reverse order of removal.
