Removal And Installation





AWD CONTROL UNIT


Removal and Installation


REMOVAL
1. Remove the glove box assembly. .
2. Disconnect AWD control unit harness connector.

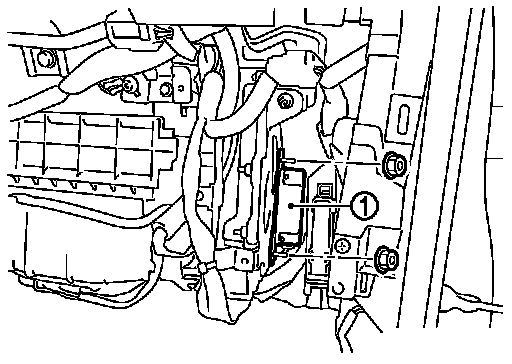

3. Remove AWD control unit (1) mounting nuts.
4. Remove AWD control unit.

INSTALLATION
Install in the reverse order of removal.
