Push-Button Ignition Switch

PUSH-BUTTON IGNITION SWITCH





Description
BCM transmits the change in the power supply position with the push-button ignition switch to IPDM E/R via the CAN communication line. IPDM E/R transmits the power supply position status via CAN communication line to BCM.




Component Function Check
1.CHECK FUNCTION
1. Select "PUSH SW" in "Data Monitor" mode with CONSULT-III.

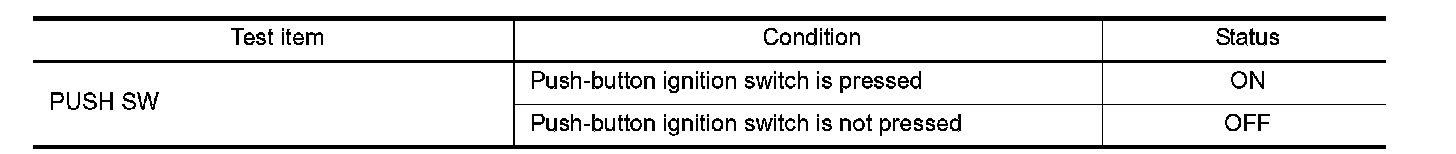

2. Check the push-button ignition switch signal under the following condition.





Is the indication normal?
YES - INSPECTION END
NO - Go to SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK PUSH-BUTTON IGNITION SWITCH OPERATION
Press push-button ignition switch and check if it turns to ON.
Does ignition switch turn to ON?
YES - GO TO 2.
NO - GO TO 4.
2.CHECK IGNITION SWITCH OUTPUT SIGNAL (IPDM E/R)
1. Disconnect push-button ignition switch connector.

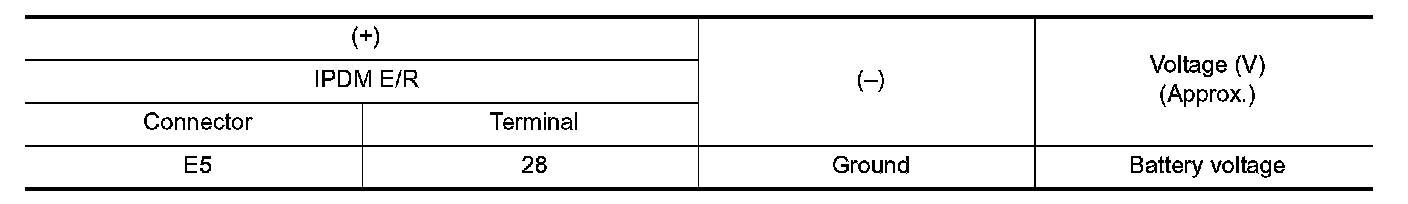

2. Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Replace IPDM E/R. Removal And Installation.
3.CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (IPDM E/R)
1. Disconnect IPDM E/R connector and BCM connector.

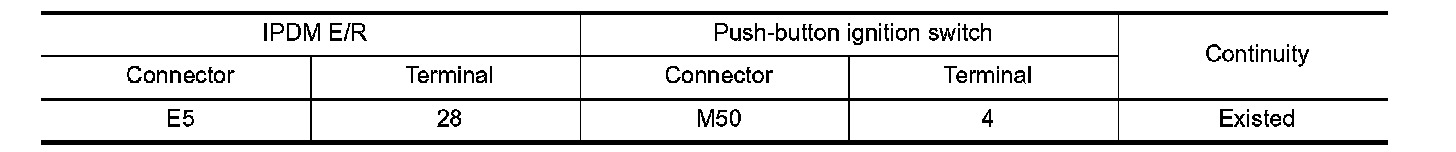

2. Check continuity between IPDM E/R harness connector and push-button ignition switch harness connector.

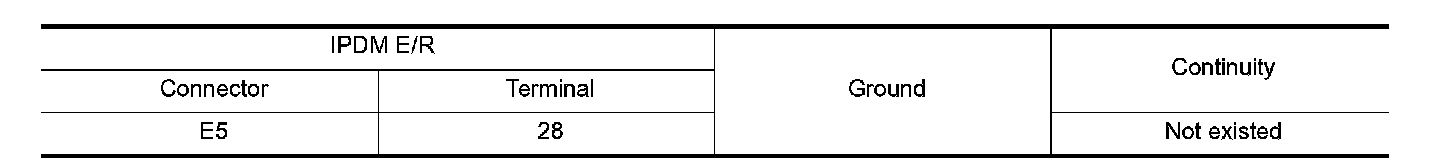

3. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness or connector.
4.CHECK IGNITION SWITCH OUTPUT SIGNAL (BCM)
1. Disconnect push-button ignition switch connector.

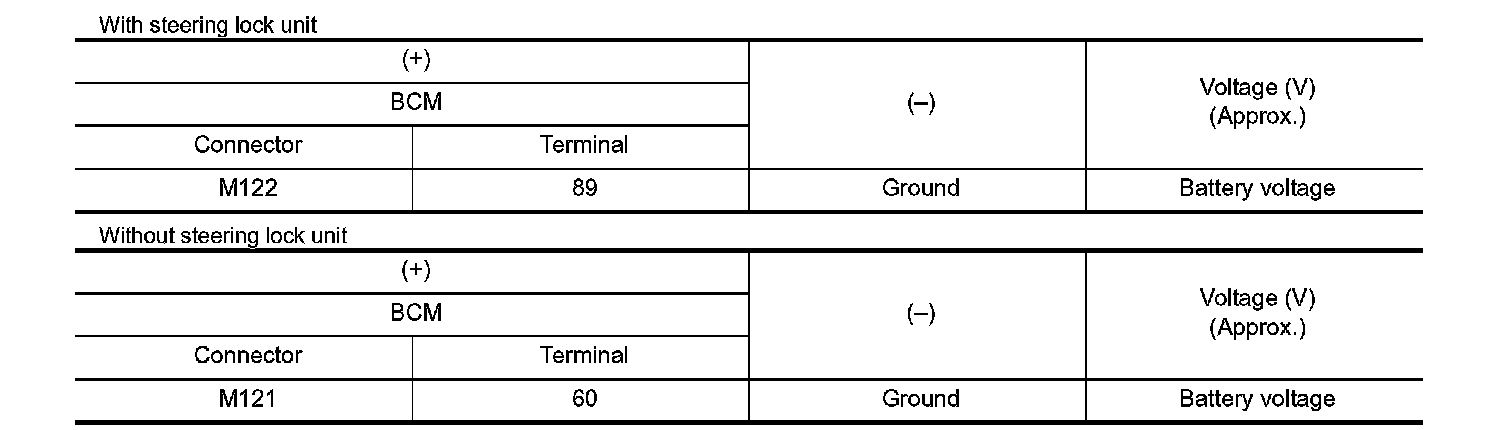

2. Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - Replace BCM. Removal And Installation.
5.CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (BCM)
1. Disconnect BCM connector and IPDM E/R connector.

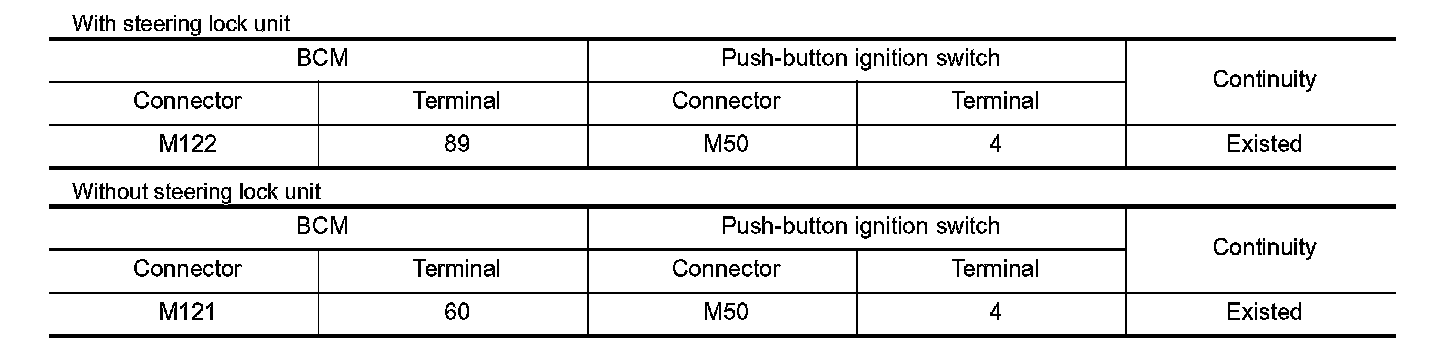

2. Check continuity between BCM harness connector and push-button ignition switch harness connector.

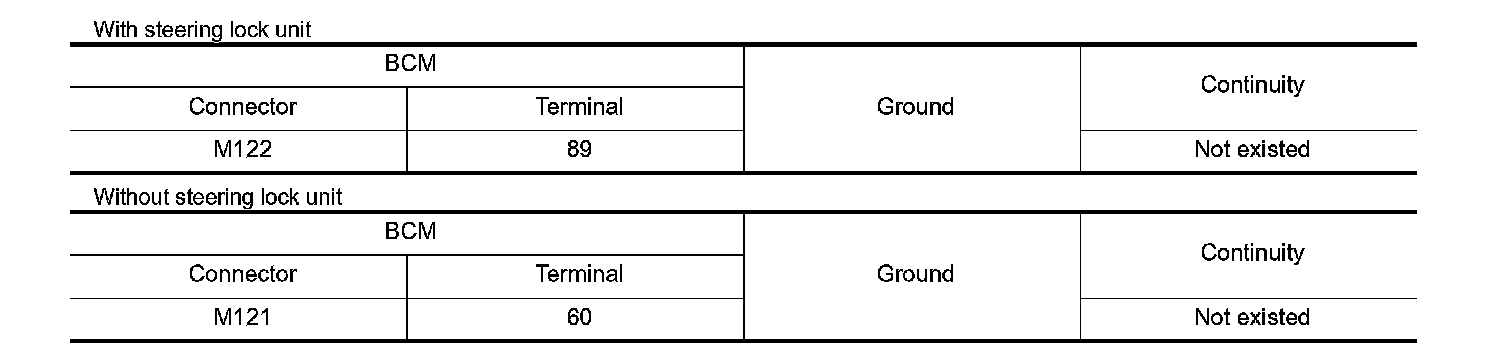

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 6.
NO - Repair or replace harness or connector.
6.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK PUSH-BUTTON IGNITION SWITCH
1. Turn ignition switch OFF.
2. Disconnect push-button ignition switch connector.
3. Check continuity between push-button ignition switch terminals.





Is the inspection result normal?
YES - INSPECTION END.
NO - Replace push-button ignition switch. Removal And Installation.
