Removal And Installation

TRUNK ROOM LAMP


Removal and Installation


CAUTION:
Disconnect the battery negative terminal or remove the fuse.

REMOVAL

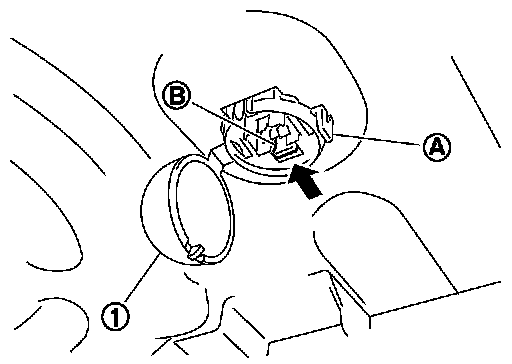

1. Widen the pawl (A). Open the lens (1).
2. Remove the bulb.
3. Pressing the pawl (B) to the arrow direction ( ). Pull out the trunk room lamp.
4. Disconnect the connector.
5. Remove the trunk room lamp.

INSTALLATION
Install in the reverse order of removal.
