Foot Position Setting Trimmer Without Plasmacluster System

INSPECTION AND ADJUSTMENT


WITHOUT PLASMACLUSTER SYSTEM : Foot Position Setting Trimmer


DESCRIPTION

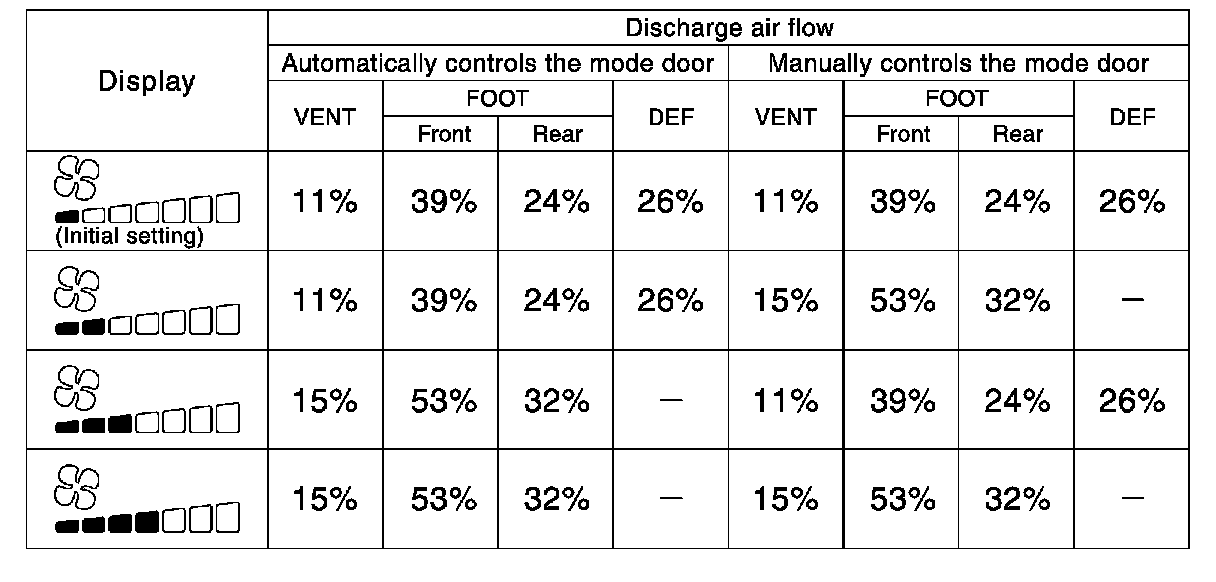

Wind distribution ratio in FOOT mode can be set.

Operating procedures for this trimmer are as per the following:
1. Begin self-diagnosis STEP-5 mode. Diagnosis Description Without Plasmacluster System.
2. Press fan (UP: +) switch*1 (turn fan control dial clockwise*2) to set system in auxiliary mode.

NOTE:
*1: With left and right ventilation temperature separately system.
*2: Without left and right ventilation temperature separately system.
3. Press mode switch as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Air distribution ratio set becomes that of initial condition.
