Inlet Port Memory Function Without Plasmacluster System

INSPECTION AND ADJUSTMENT


WITHOUT PLASMACLUSTER SYSTEM : Inlet Port Memory Function


DESCRIPTION
When ignition switch is turned from OFF to ON, inlet port can be set to AUTO or manual.

Operating procedures for this trimmer are as per the following:
1. Begin self-diagnosis STEP-5 mode. Diagnosis Description Without Plasmacluster System.
2. Press fan (UP: +) switch*1 (turn fan control dial clockwise*2) to set system in auxiliary mode.

NOTE:
*1: With left and right ventilation temperature separately system.
*2: Without left and right ventilation temperature separately system.

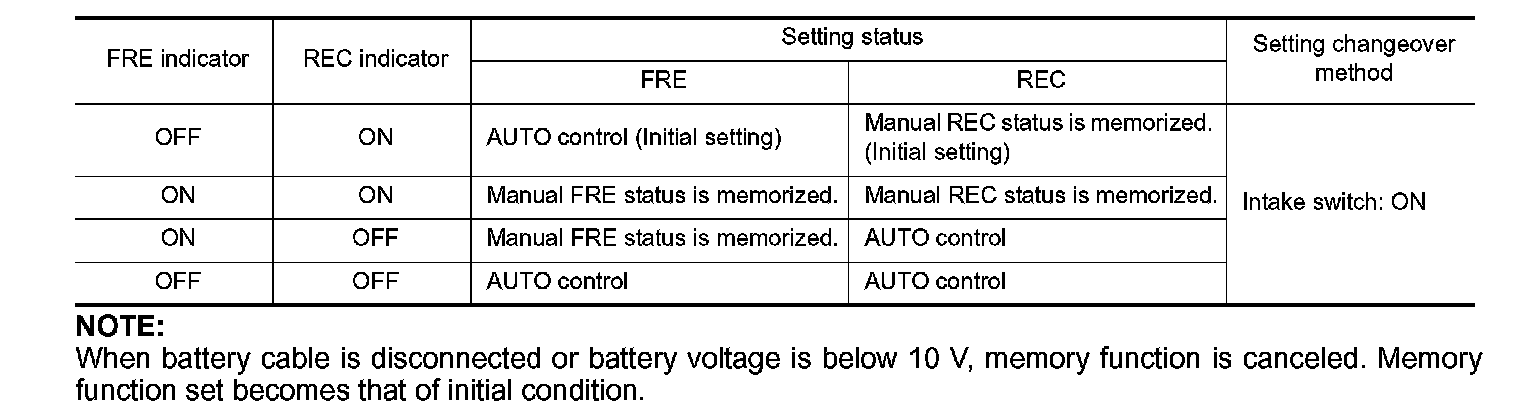

3. Press intake switch as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, memory function is canceled. Memory function set becomes that of initial condition.
