System Diagram With Left And Right Ventilation Temperature Separately Control System

AUTOMATIC AIR CONDITIONING SYSTEM


WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Diagram


CONTROL SYSTEM

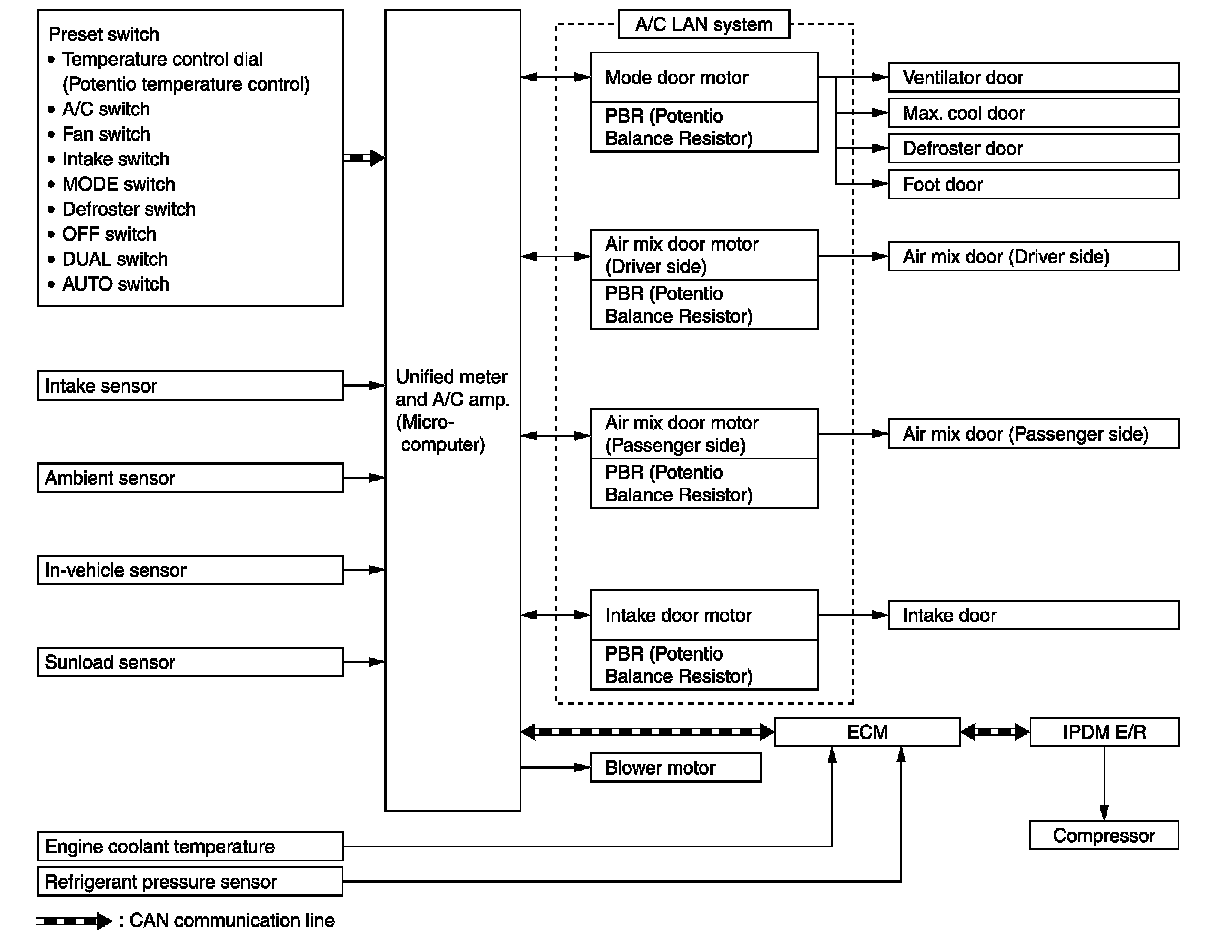

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:
