Electronically Controlled Power Steering System Without 4WAS





POWER STEERING CONTROL UNIT

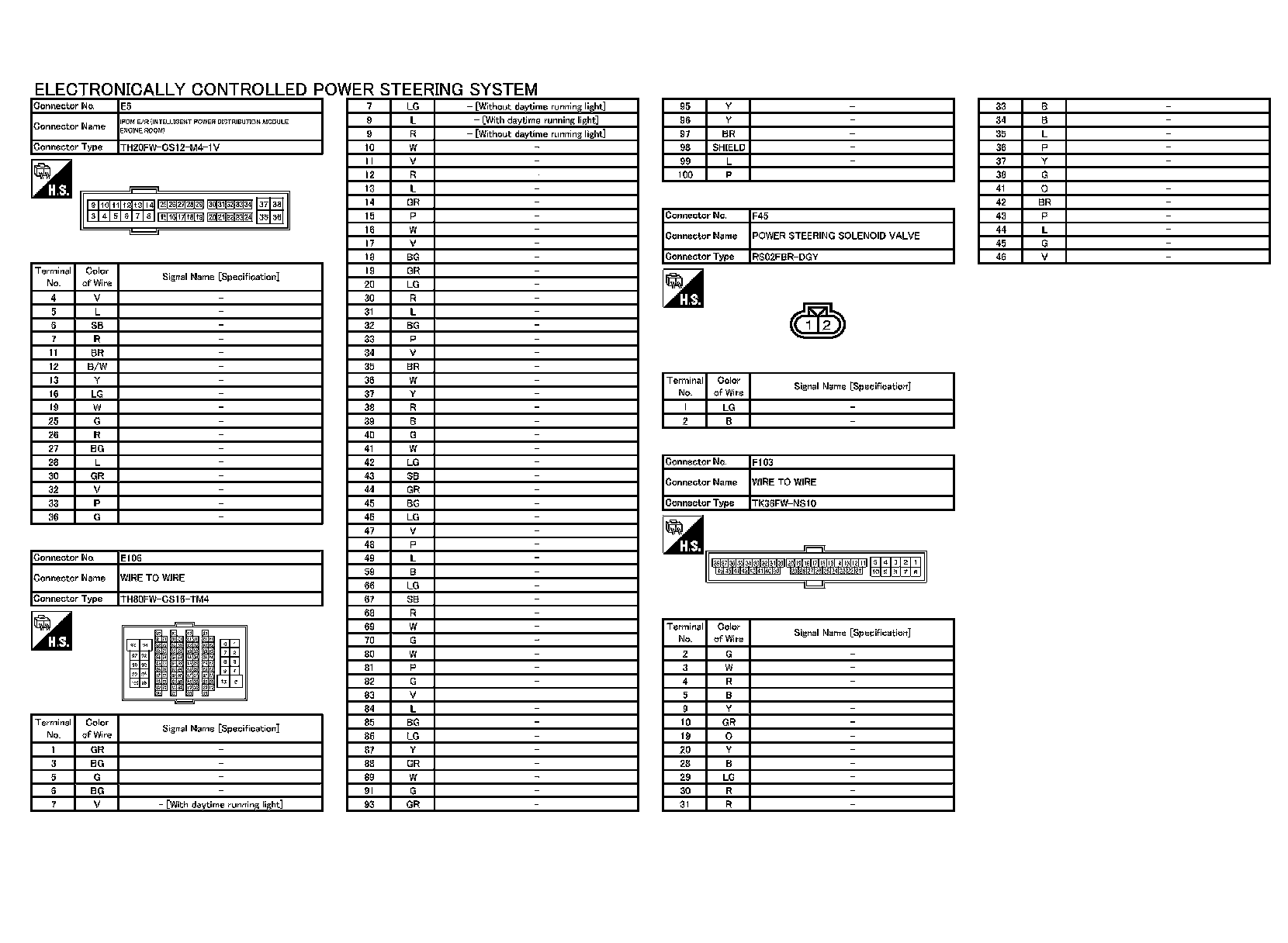

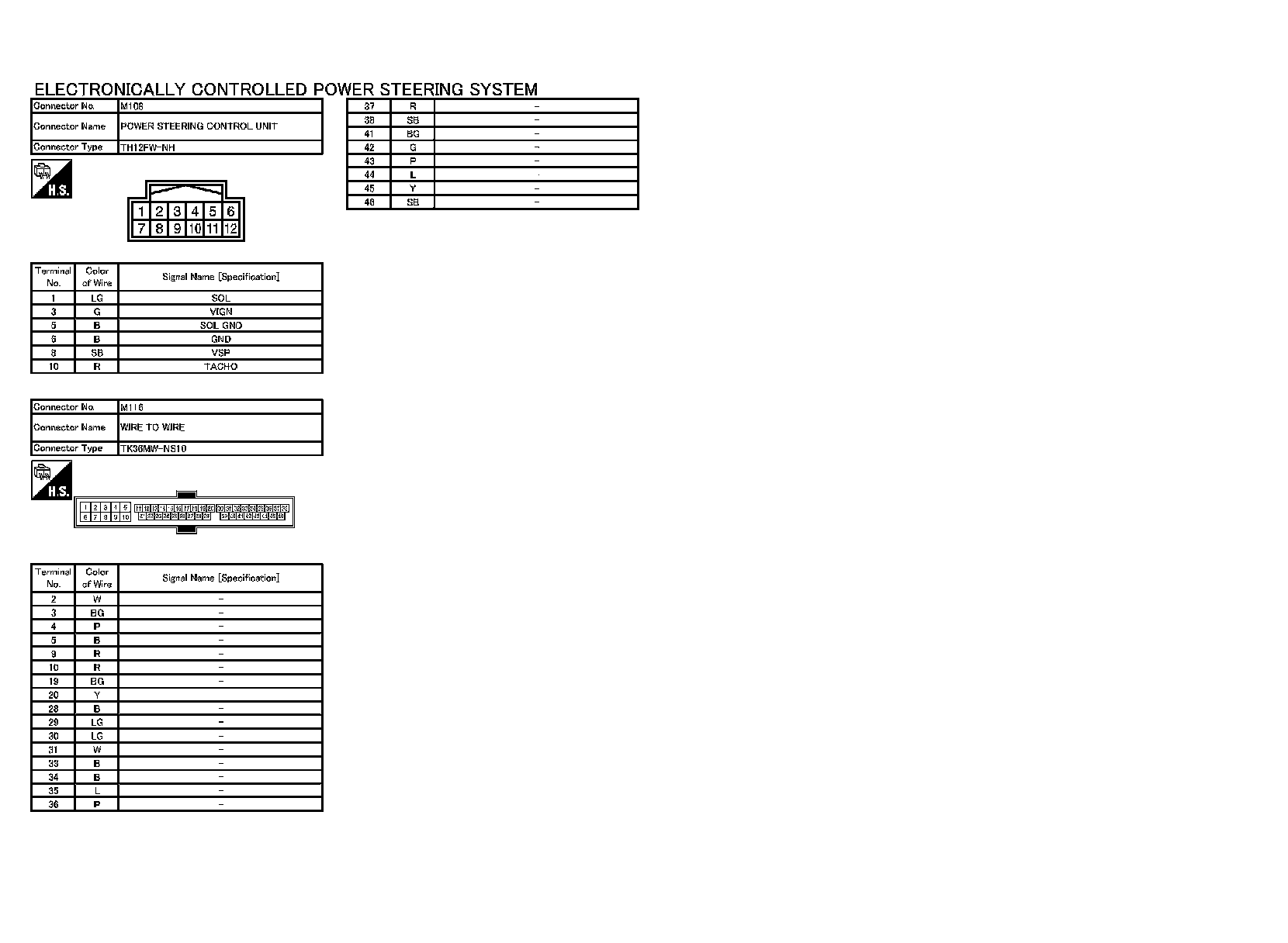

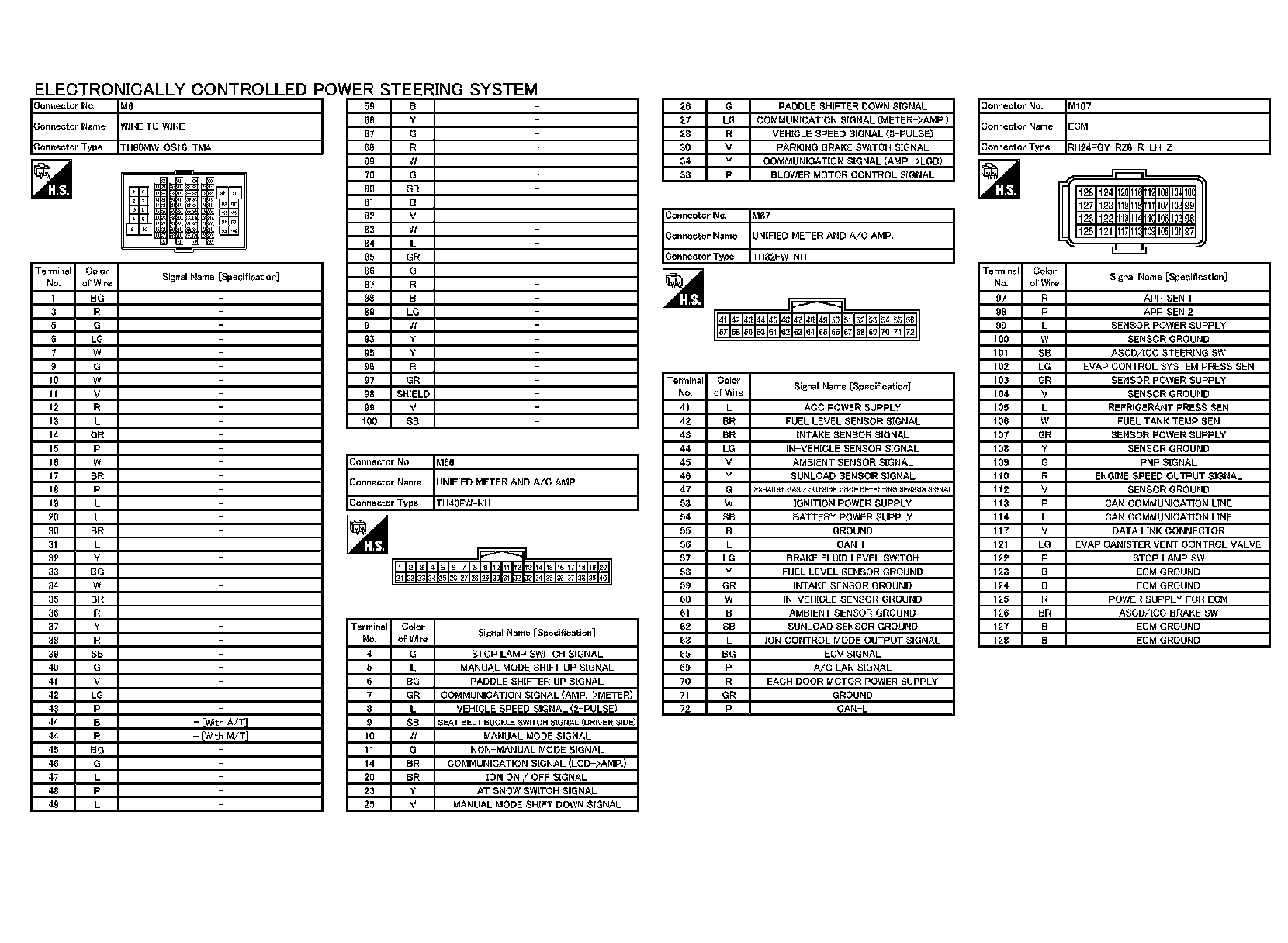

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -
