Base Audio Without Rear View Camera





BASE AUDIO WITHOUT REAR VIEW CAMERA

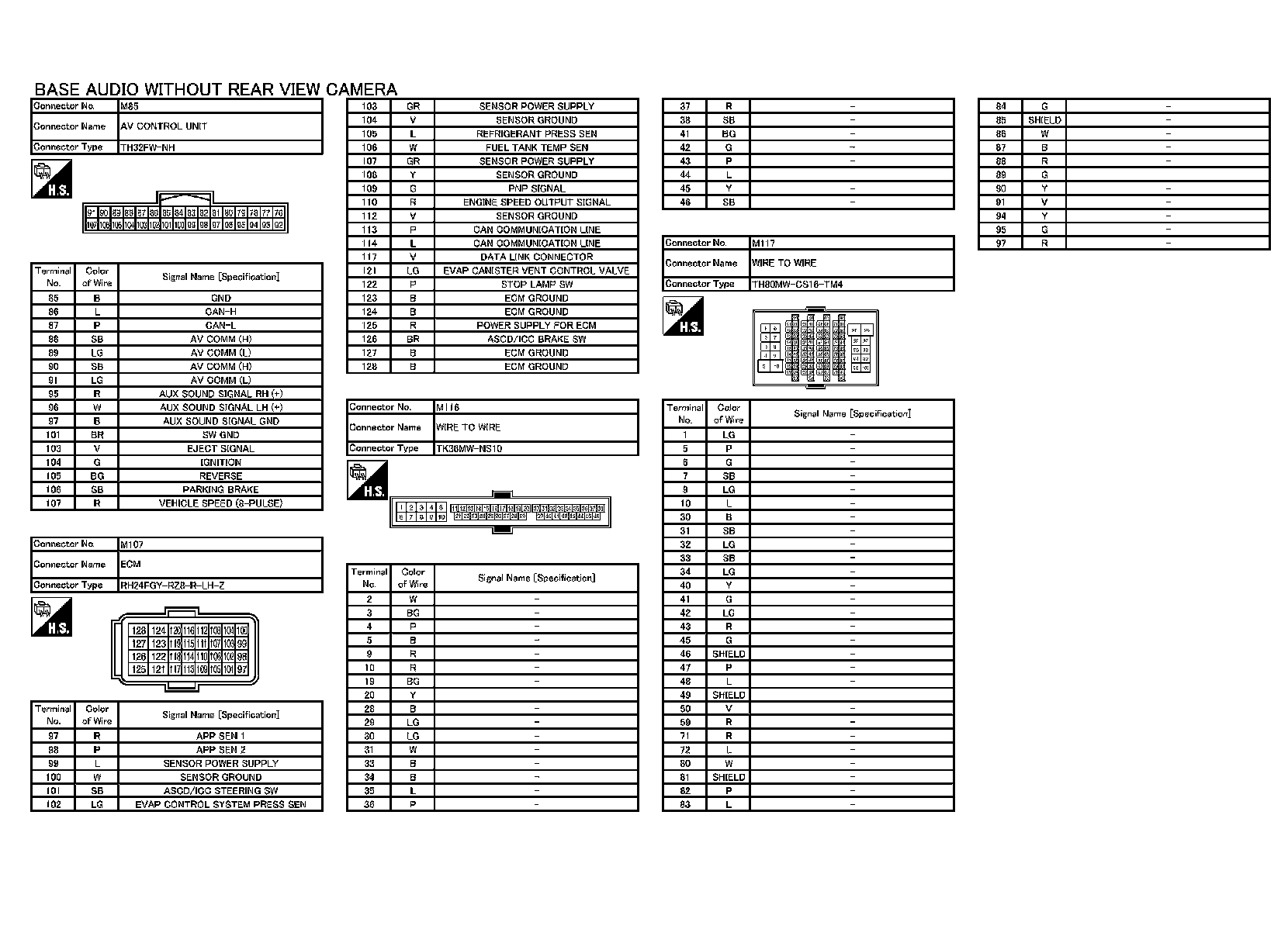

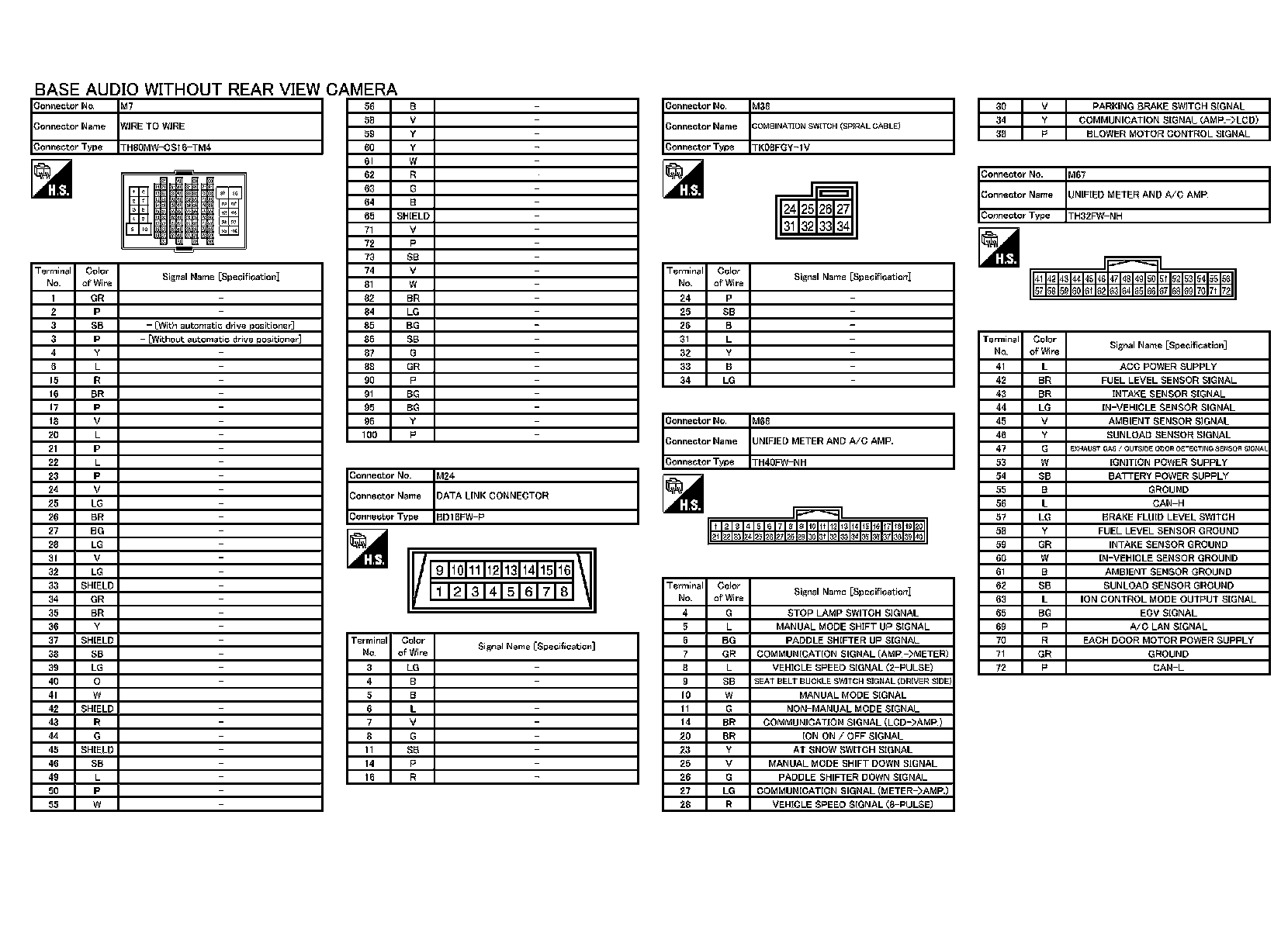

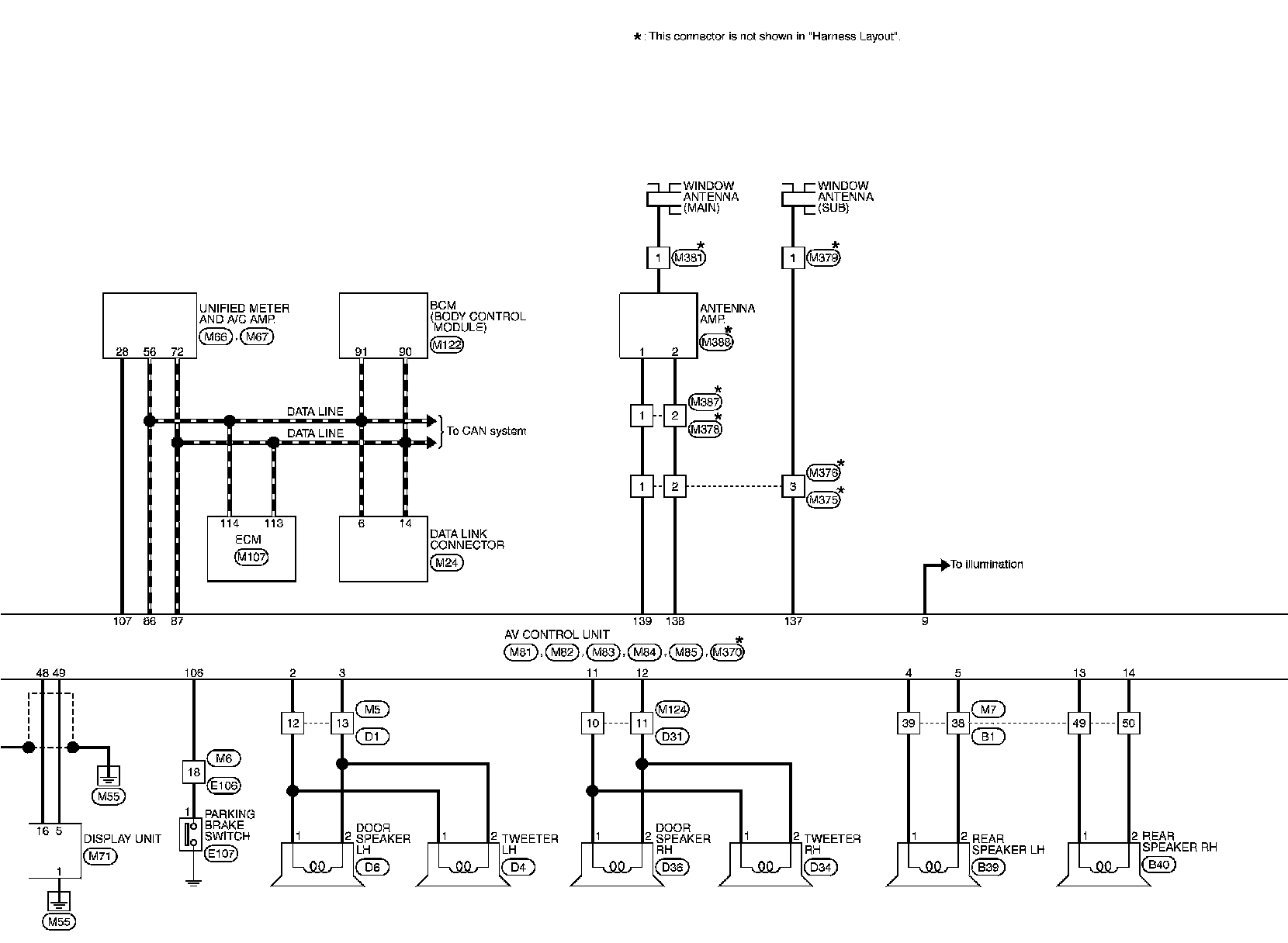

Wiring Diagram


NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
